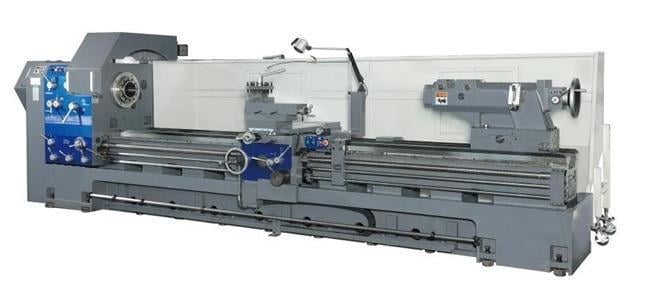

34" x 80" -200 Kent USA #LA-34, Precision Engine Lathe, new, #15350

Capacity

Swing over bed ways

30” (770mm)

Swing over cross slide

20.5” (520mm)

Swing over gap

42”(1,070mm)

Center height

15.3” (390mm)

Bed ways

3 V-ways with 1 Flat

Bed width

20” (510mm)

Distance between centers

80”(2000mm),120”(3000mm), 160”(4000mm), 200” (5000mm)

Headstock

Spindle hole

6” (153mm), Opt. 10”, 12” (255mm,305mm)

Spindle nose

A2-11 (Optional D1-11)

(A2-15 for 10”, A2-20 for 12” and 14”)

Spindle to sleeve taper

MT #5 (MT #6 for 10” ~ 14” spindle bore)

Spindle speeds

5 ~ 670 RPM

(4~500 RPM for 10”, 4~440 for 12”)

Spindle speed steps

18 Steps

Carriage

Bearing length on ways

29.5” (750mm)

Cross slide width

11” (280mm)

Cross slide travel

19.6” (500mm)

Top slide (compound) travel

12” (300mm)

Feed Box

Thread capacity (inches)

30 ~ 0.25 TPI (70 sets)

Thread capacity (metric)

1 ~ 120 mm (60 sets)

Modular threads range

30 ~ 0.25 TPI (53 sets)

Diametral pitch range

1 ~ 120 mm (70 sets)

Longitudinal feeds

0.0032 – 0.096 IPR

Cross feeds

0.0016 – 0.048 IPR

Tailstock

Quill diameter

4.9” (125mm)

Quill travel

5.9” (150mm)

Quill taper

MT#6

Power

Main motor

20 HP (Opt. 30 HP)

Coolant pump motor

1/8 HP

Control circuit voltage

24 V

Dimension

Shipping dimension

186 x 70 x 62 inch for LA-30120 model

(Add or subtract length by 40” per Meter variation in length)

Weight

Net weight (approx)

15,265 LBS for LA-30120 (weight vary by around 2,200 lbs per meter difference)

Gross weight (approx)

19,670 LBS for LA-30120 (weight vary by around 3,300 lbs per meter difference)
