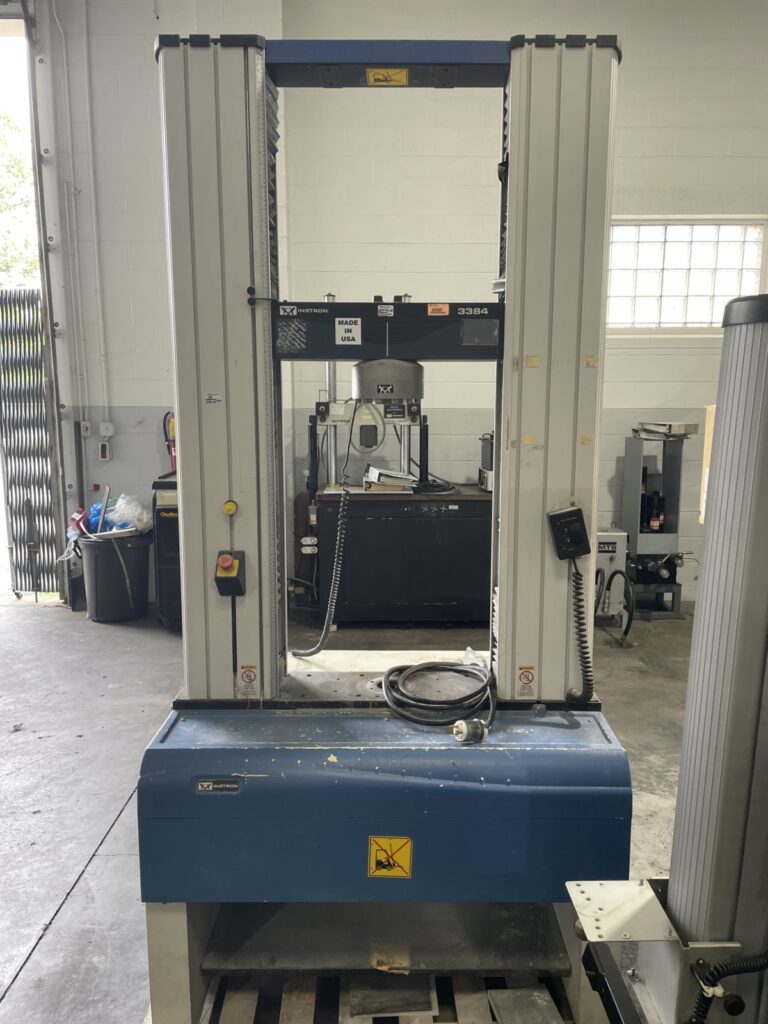

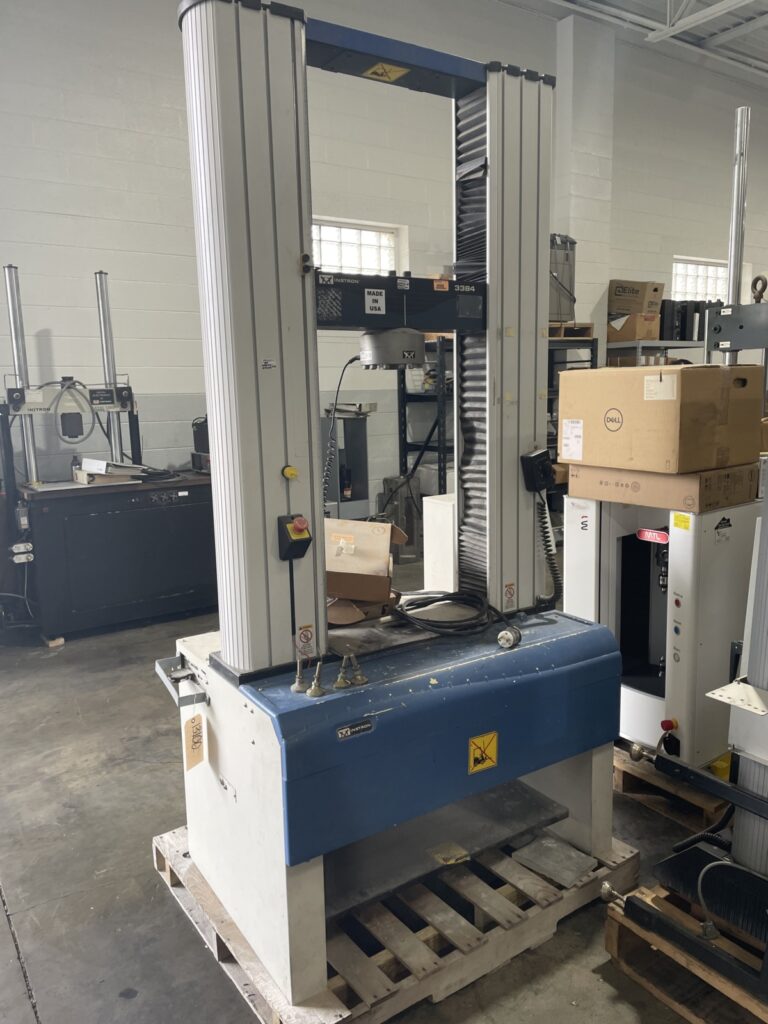

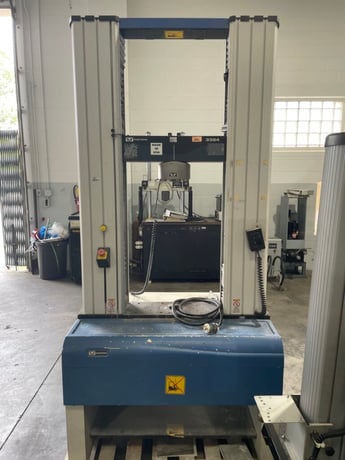

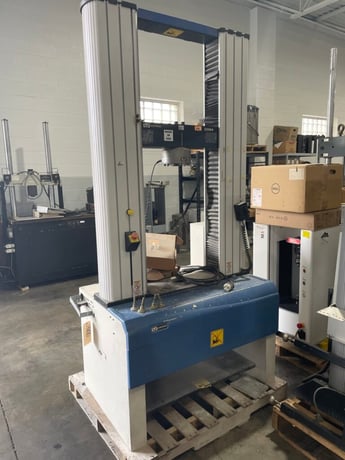

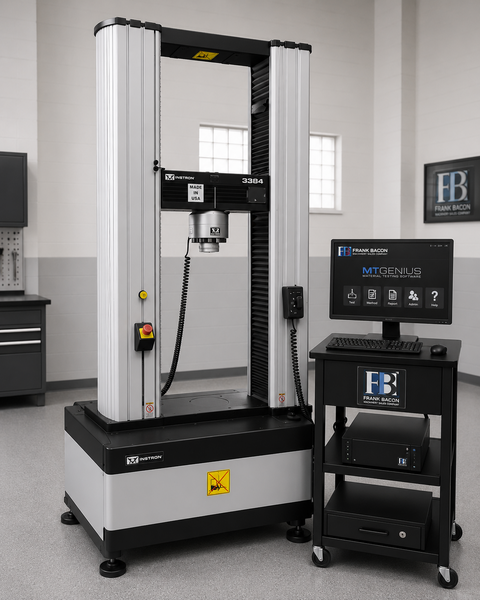

30000 lbf. (150kN) Instron #3384, 52" Compression Testing Opening

Instron Model 3384

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 52" Compression Testing Opening (Less Tooling): 52" Distance Between Columns/Screws: 22"
Testing Stroke: 52"

Testing Speed (IPM): .00002 – 20 Crosshead Adjusting Speed (IPM): 20 Approximate Overall Dimensions: Load Frame (W x D x H): 48" x 32 x 98" Weight (lbs.): 1,850

Electrical Requirements (V, Hz, PH): 230, 60, 3

EQUIPPED WITH:

• Computer System with Keyboard & Mouse

• 24" LED-backlit LCD Color Monitor

• MTGenius, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & AUX),

  Analysis and Computer Controlled Testing with Manual.

• MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB cable.

• Electronic Material Testing Control System in Custom Cabinet/Desk with PC/Manual Controls.

• New AC Servo Motor with Incremental Encoder and Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).

• 150kN Tension & Compression Load Cell

• FOB Warren, MI Reconditioned/Retrofitted & Certified 1 Year Parts and Labor Warranty
