Description

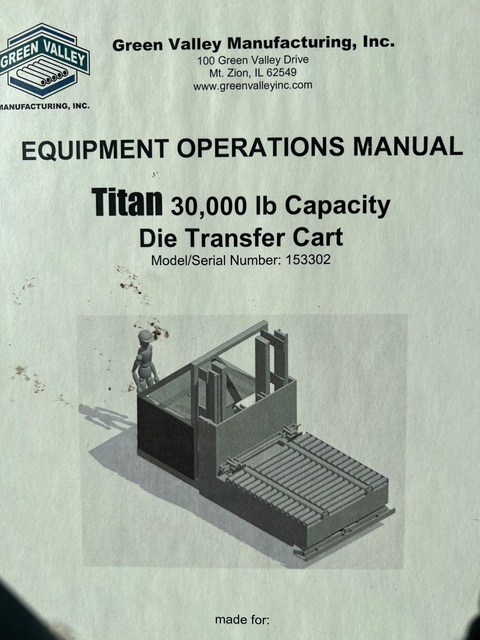

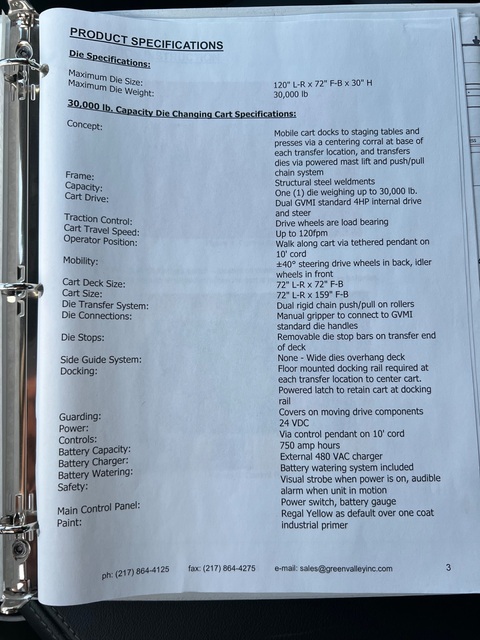

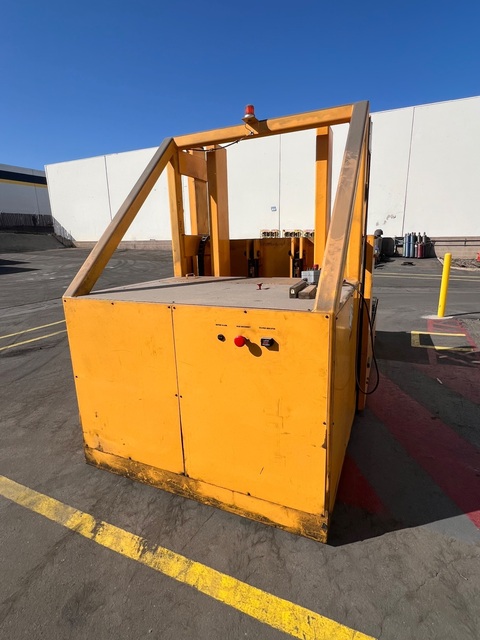

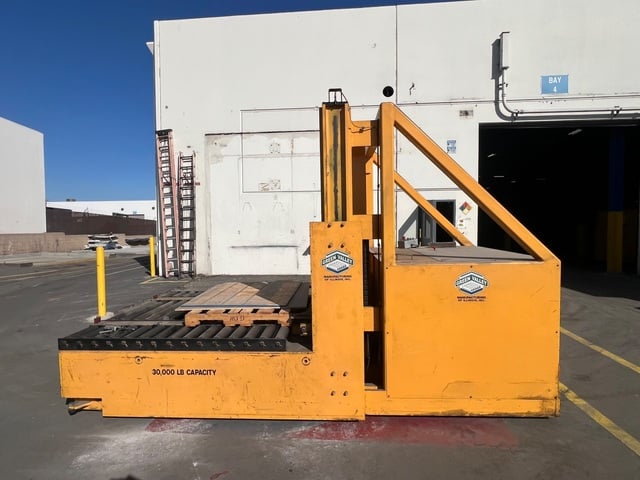

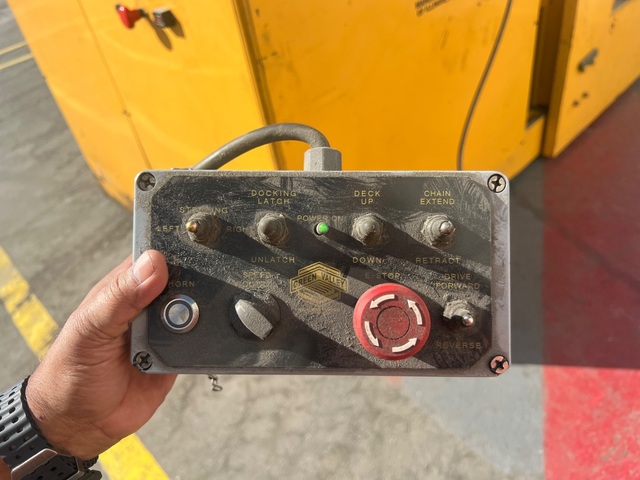

GREEN VALLEY/TITAN 153302 30,000 Lb. Capacity Die Transfer Cart #8125 SPECIFICATIONS: Capacity: 30,000 Lbs. Maximum Die Size: 120" L-R x 72" F-B x 30" Ht. Cart Drive: Dual GVMI standard 4 HP internal drive and steer Cart Deck Size: 72" L-R x 72" F-B Cart Size: 72" F-B x 159" F-B Die Stops: Removable dive stop bars on transfer end of deck Power: 24 VDC Controls: Via control pendant on 10' cord Battery Capacity: 750 amp hours Main Control Panel: Power switch, battery gauge EQUIPPED WITH: 10' wired pendant control
Engineered Lifting System 15 Ton Die Transfer Cart, Model TCS-30000-10-16, Asset # 17842J, Capacity 15 Tons, Bed Size 6' x 10', Frame Height 20 1/4", Overall Height 22", Wheel Width 4 1/4", Preliminary - Subject to Verification.
Die, maximum die size: 109 L-R X 71 F-B X 21 tall, maximum die weight: 10,000 lb., transfer height range: presses at approx. 33 to 60 above the floor, 20,000 lb. (total capacity) Over/Under Die Cart s:, frame: structural steel weldments, cart capacity: 20,000 lb. total cart capacity, each deck rated for one 10,000 lb. ...more
-Model Number: PT-550-01, -Diesel, -Cummins QSB4.5, -Rated HP: 130 HP @ 2200 RPM, -Basic Capacity: 55,000 lbs., -Hours: 4025.9, -The Lifting Deck is 104" Long x 48" wide, -The Deck is 20" from the floor to the top of the deck in its lowered position., -Runs and Operates, -Overall Dimensions: 16'8" L x 5'7" W x ...more
