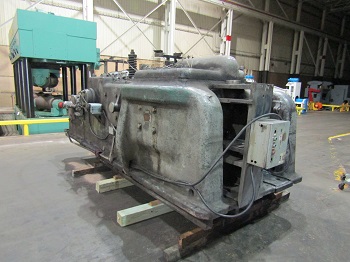

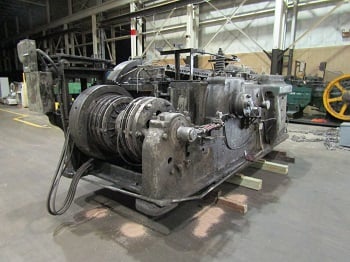

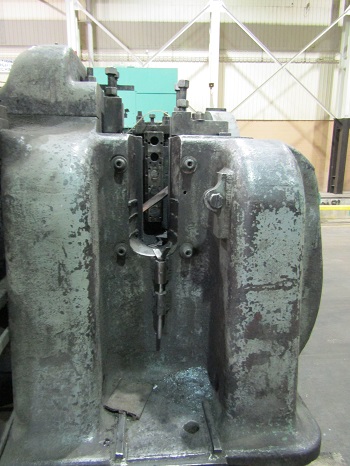

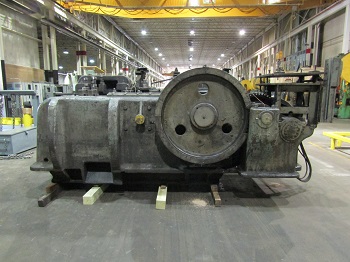

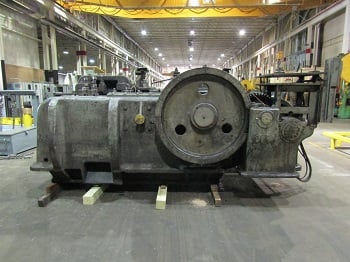

3" Acme Upsetter, 22" depth x 14" W x 19-1/4" L, 5" die opening, 5" pocket width, 7-5/8" gather, 2" hold, 12" stroke, 1942

Manufacturer: Acme
Year: 1942
Capacity: 3.00
Stroke: 12.000
Stock # 114322

For Sale by National Machinery Exchange

Surplus Record Dealer Since 1939
Platinum Level Dealer
Location: Newark, NJ
Contact Sales / Andreia
Let the seller know you found their listing on Surplus Record!

Description

3" HILL ACME XN UPSETTER

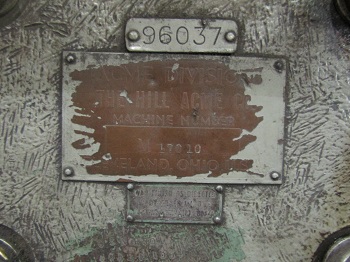

S/N M17010
YEAR 1942
DIE DEPTH .......... 22"
DIE WIDTH .......... 14"
DIE LENGTH ......... 19-1/4"
DIE OPENING ........ 5"
TOOL HOLDER POCKET WIDTH ..... 5"
STOCK GATHER ................. 7-5/8"
HOLD ......................... 2"
STROKE ....................... 12"
HEADER SLIDE LENGTH .......... 80"
HP ........................... 30
LBS .......................... 95,000
FORGING PRESSURE ............. 630 TONS
L x W x H .................... 184" x 101" x 85"
