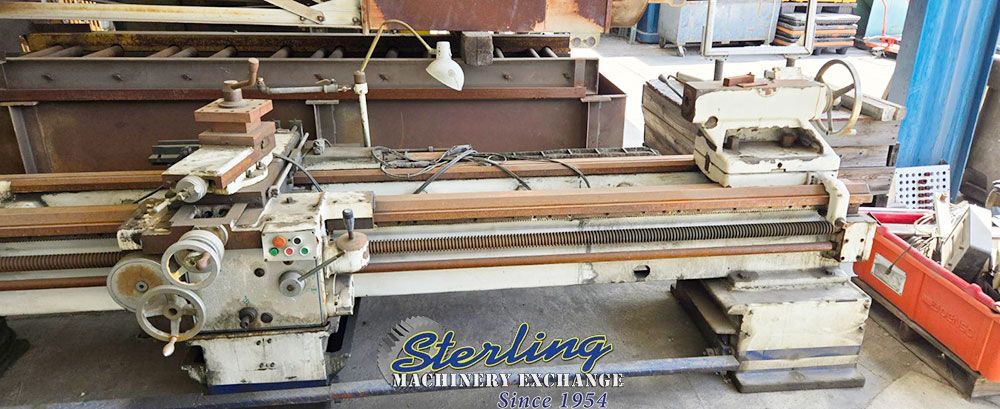

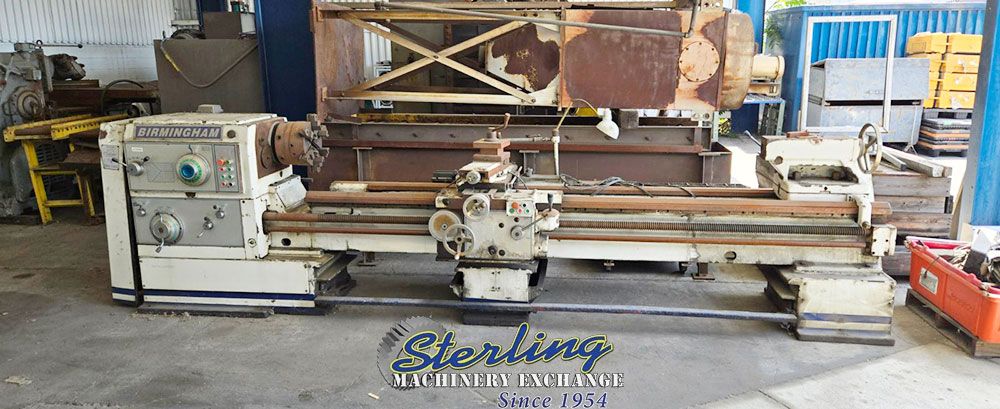

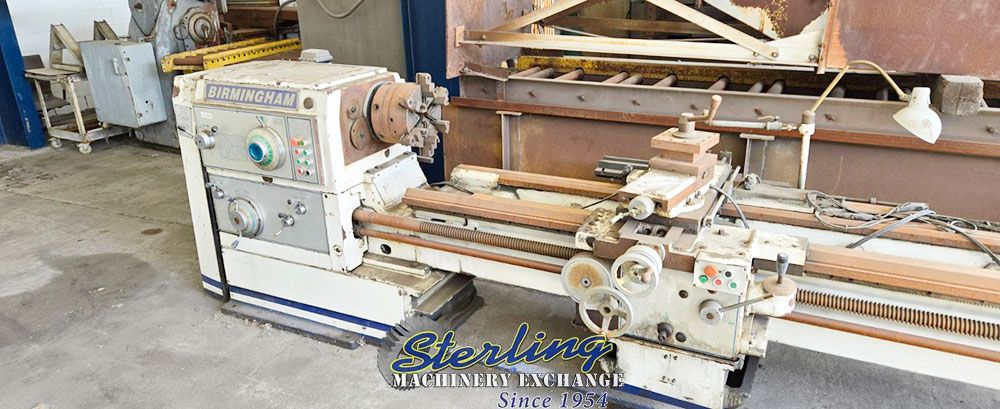

Manufacturer: Birmingham
Model: DL-26120
Swing: 26.0
Centers: 120.0
Stock # A5896
Price: $10,500 USD - Finance for as low as $213/mth
For Sale by Sterling Machinery Exchange
Surplus Record Dealer Since 1970
Adam Mattes
626-44...> Show Seller's Phone Number 626-444-0311 Let the seller know you found their listing on Surplus Record!
Description
SPECIFICATION:
| Capacity | 26" x 120" |
| Swing Over Bed | 26" |
| Swing Over Cross Slide | 13-3/4" |
| Swing in Gap | 31" |
| Length of Gap | 16" |
| Distance Between Centers | 120" |
| Hole Thru Spindle | 4-1/8" |
| Width Of Bed | 21-21/32" |

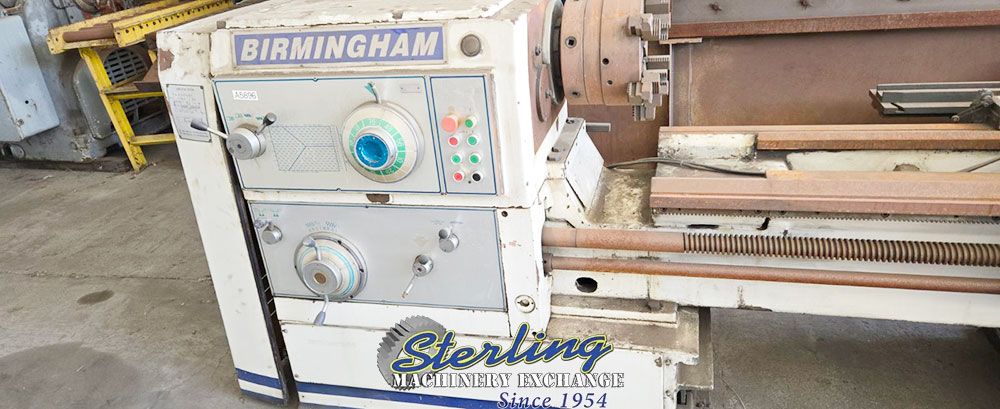

| Headstock | |
| Spindle Nose | D1-11 Camlock |

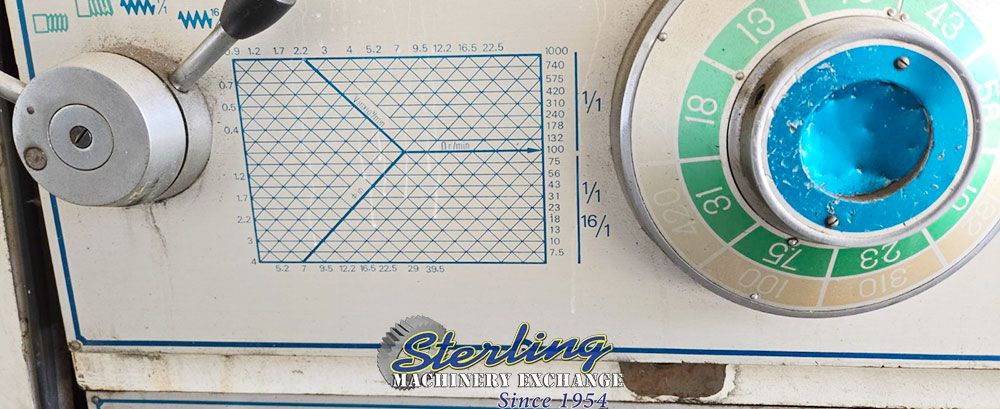

| Spindle Speeds | 7.5 - 1,000 RPM |
| Spindle Taper | MT #5 |

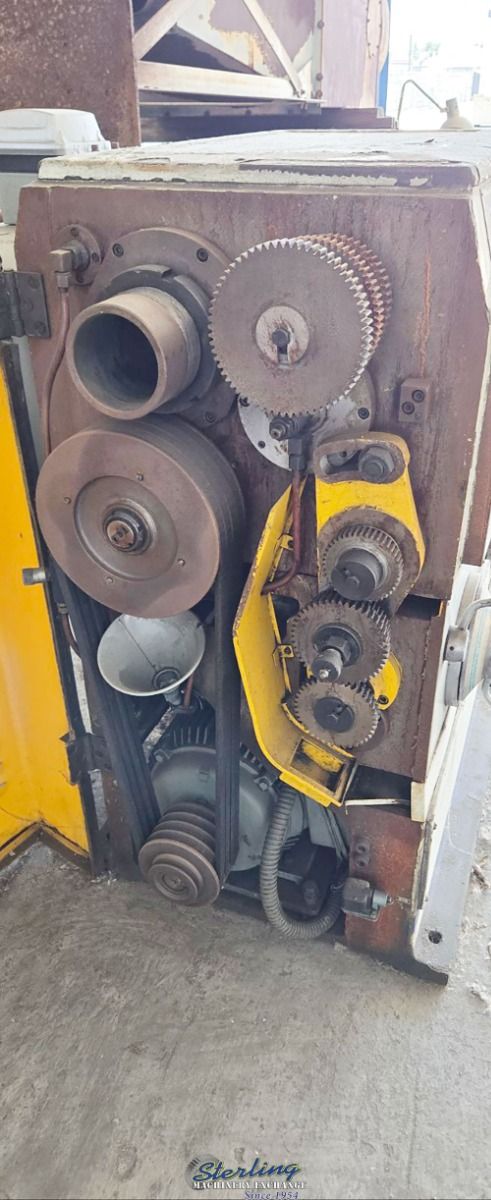

| Feeds & Threads | |
| Longitudinal Feeds | .002 - .96 IPR |
| Cross Feeds | .001 - .48 IPR |
| Metric Threads | 1 - 256 MM |
| Inch Threads | 1/16 - 32 TPI |
| Modular Pitches | .5 - 128 MP |
| Diametrical Pitches | 1/16" - 32" DP |

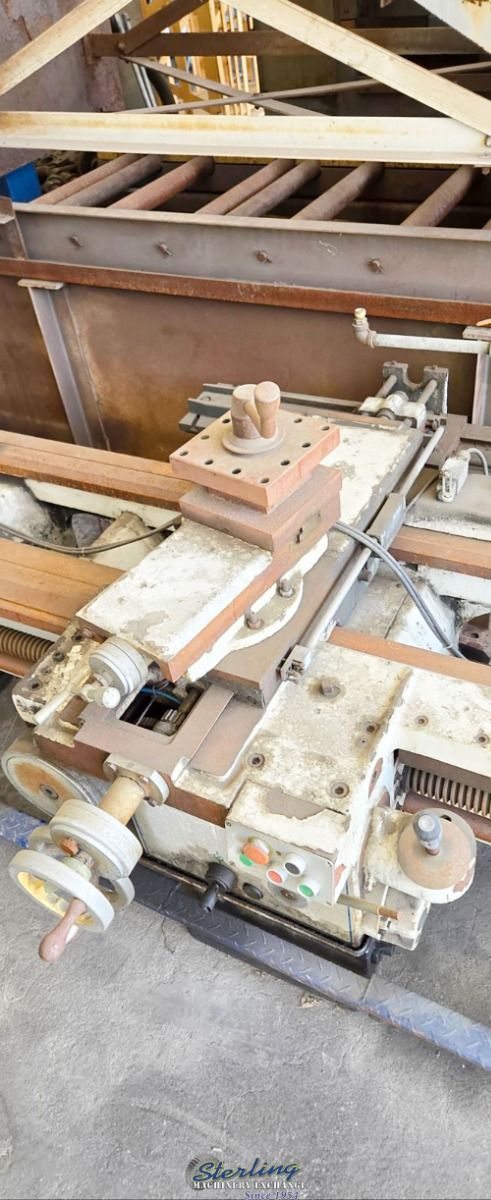

| Carriage | |
| Max. Travel of Cross Slide | 17-1/2" |
| Longitudinal Leadscrew Diameter/Pitch | 2-1/4"/ 2 TPI |
| Tailstock | |
| Taper of Center | MT #5 |
| Travel | 9-1/2" |
| Diameter | 3-15/16" |

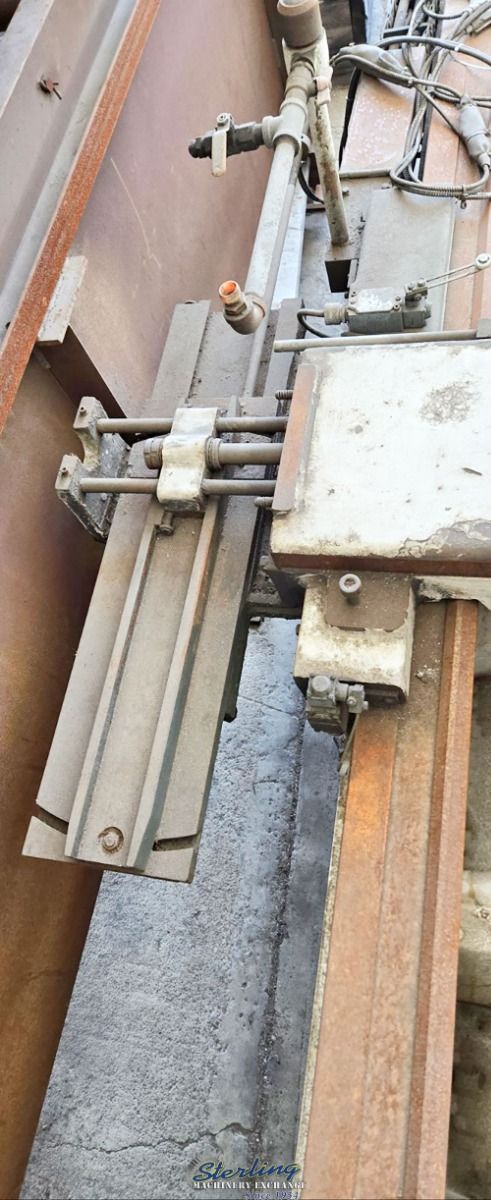

| Tracer Attachment | Yes |
| Digital Readout | Yes |
| Horsepower | 20 H.P. |
| Voltage | 220V, 3 Phase, 52 Amps |
| WEIGHT | 11,000 Lbs. |
FEATURES:
4 Way Rapid Traverse

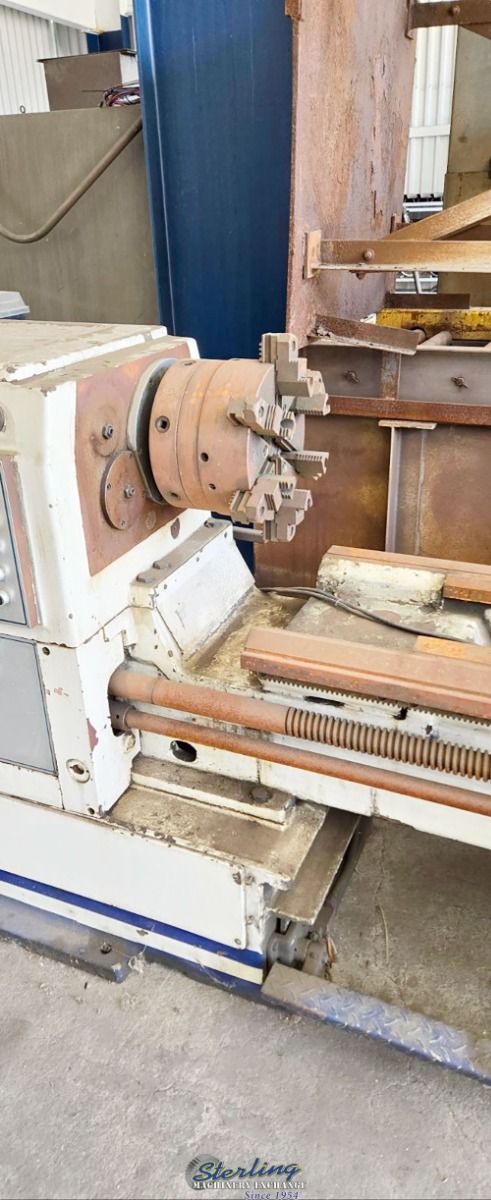

6 Jaw Chuck
Taper Attachment
Foot Brake
Foot Brake
Removable Gap
Follow Rest
Coolant System
Thread Chasing Dial
Inquire Further with Sterling Machinery Exchange!
Buyers Who Viewed This Listing Also Viewed …
26"/35" X 120" GMC #GML-26120T, Removable Gap Bed Lathes, 4-3/4" Bore, 15 HP, 10-1000 RPM, inch/metric thread, 17-1/4" swing over cross slide, 12" chuck, 20" face, CARMAR digital read out,
Category: Sliding & Gap Bed Lathes
Seller: Wheeler Machinery Sales
Location: Pomona, CA
Mfr: Gmc
Model: GML-26120T
Made in Taiwan, Meehanite casting high performance cast iron, ISO 9001 certified, Large spindle bore 4-3/4 (120mm), Heavy Duty spindle D1-11, Heavy Duty main motor 15HP, 16 spindle speeds from 10-1,000 rpm, 12 speeds, 2-speed tailstock, 54 kinds of inch threads, and 54 kinds of metric threads, Threading and feeding ...more
26"/35" x 120" GMC #GML-26120, precision gap lathe, 12" 3-jaw chuck, 16" 4-jaw chuck, 4-1/8"bore, D1-8, 25-1600 RPM, digital read out, 18" faceplate, 7.5" Steady Rest, 3" follow, 4-way tool post
Category: Sliding & Gap Bed Lathes
Seller: Manufacturing Solutions
Location: Santa Ana, CA
Mfr: Gmc
Model: GML-26120
, Taper turning attachmentSINO DRO + Glass ScalesCarriage Stop12” 3-jaw chuck with top reversible jaws, direct mount16” 4-jaw chuck, direct mount18” Face plate7-1/2” large steady rest with roller jaws3” follow restRemoveable gap4-way tools postFoot brakeHalogen Work light and coolant ...more
26"/35" x 120" Kingston #HD-26120, Large Bore High Speed Precision Gap Bed Lathe, NEW
Category: Sliding & Gap Bed Lathes
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Kingston
Model: HD-26120
Swing Over Bed 26 inches Swing Over Cross Slide 17.5 inches Swing In Gap 35.1 inches Gap Width in Front of the Face Plate 10.625 inches Distance Between Centers 120 inches Width of Bed 15.75 inches Height of Center from Leg Bottom 44.3 inches Spindle Bore 4.0625 inches Taper of spindle bore and center MT#7 x #5 Type ...more
JUST ADDED!
24.8"/31.5" x 118" Vanguard #CW6263C, engine lathe, 5.11" hole, 8.5-800 RPM, taper attachment, roller type Steady Rest, Newall 2-Axis digital read out, 2008
Category: Sliding & Gap Bed Lathes
Seller: Excel Machinery
Location: Clinton Township, MI
Mfr: Vanguard
Model: CW6263C
Year: 2008
JUST ADDED!

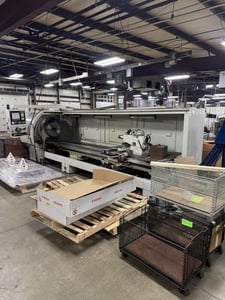

27"/34.2" x 120" Milltronics #ML-26/120, engine lathe, 6" spindle bore, A2-11, 8 turret, 30-1600 RPM, 2008
