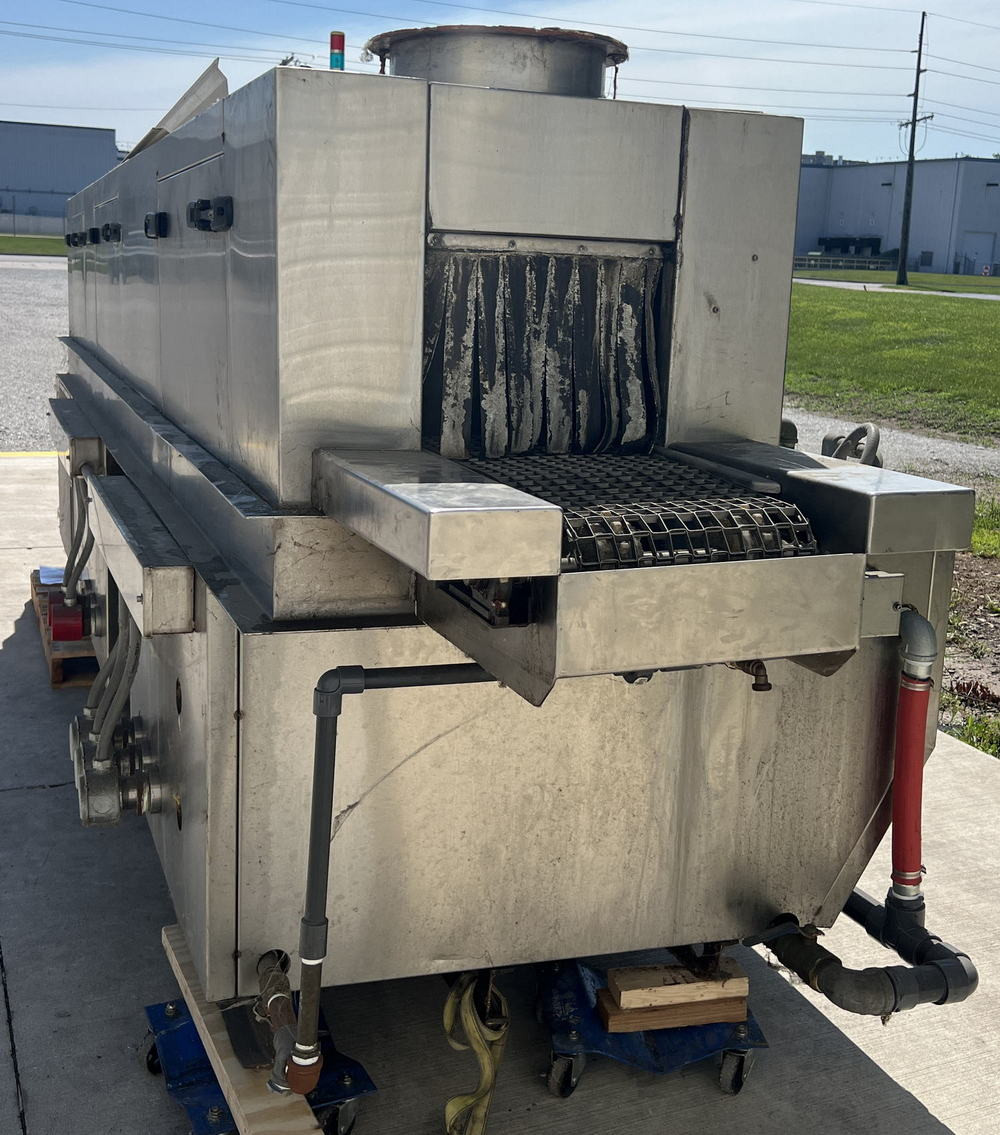

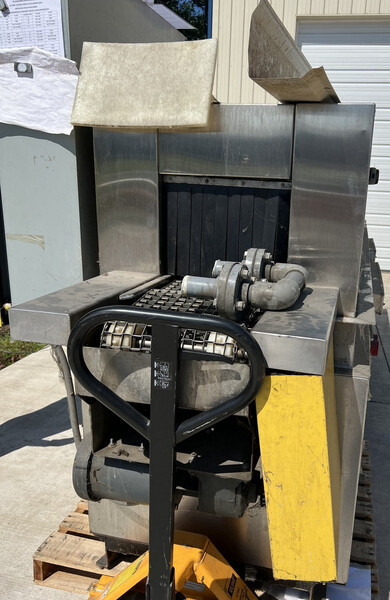

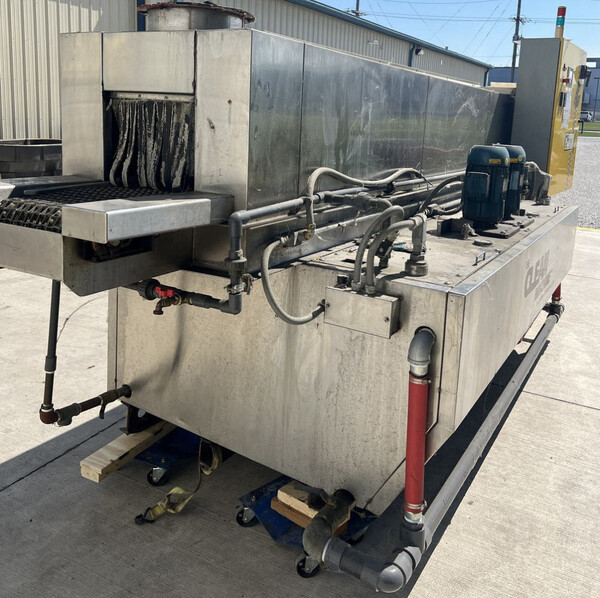

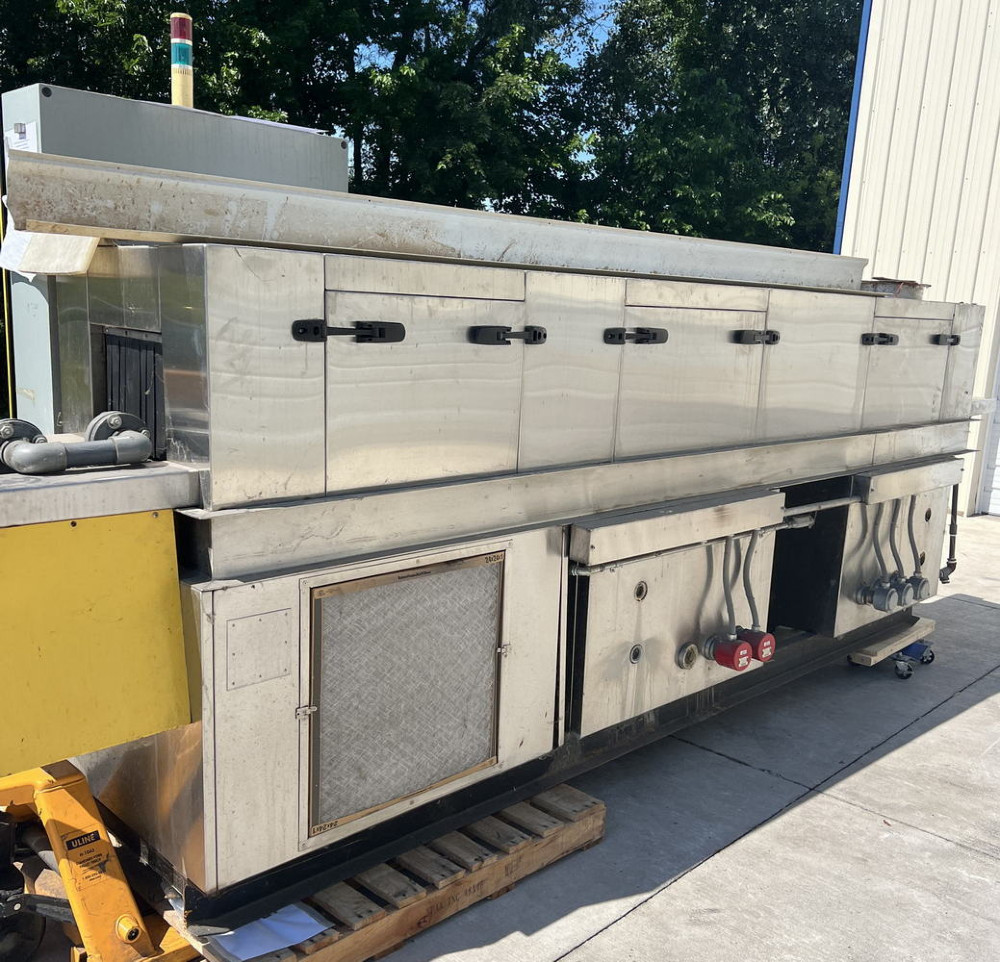

Clean Machine #CM12, Stainless Steel belt washer, elect. heated wash, rinse & blow-off

12" W x 8" H CLEAN MACHINE 3-Stage Parts Washer

SPECIFICATIONS:

All Stainless Steel Construction

Belt Width: 12"
Opening Height: 6-1/2", Modifiable to 10"

Floor to Top of Belt: 43"

16" Load Length

36" Long Wash Section:

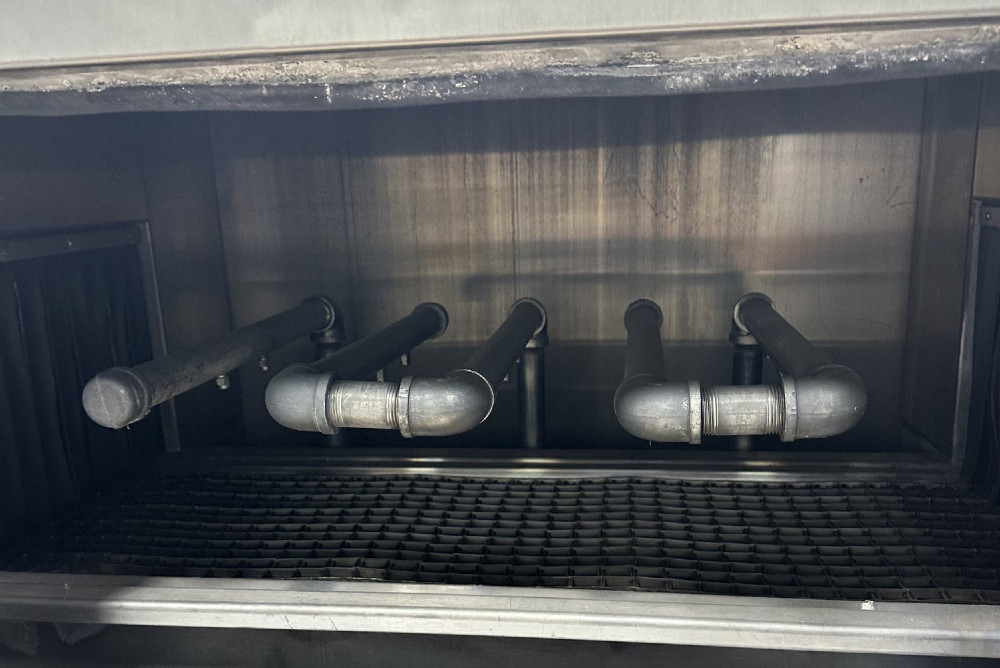

(5) Top Spray Bars with 3/2/3/2/2 Nozzles
(3) Bottom Spray Bars with 3 Nozzles Each
(3) 12 kW Indeeco Electric Heaters, 480/3
3 HP Pump with Variable Frequency Drive, AB Powerflex Gusher Pump
Auto Fill Float with Overfill Safety Float
Dual Removable Chip Screen
Sloped Tank Bottom with Wash-Out Nozzles

24" Long Quiet Zone

36" Long Rinse Section:

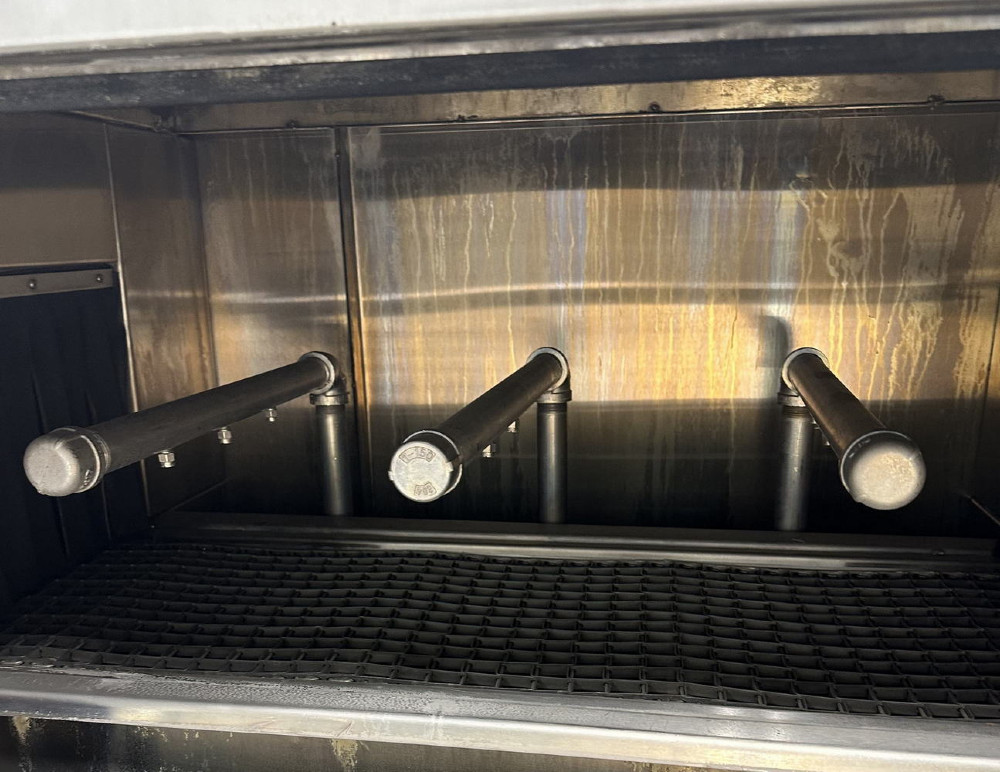

(3) Top and Bottom Spray Bars, 3 Nozzles Each

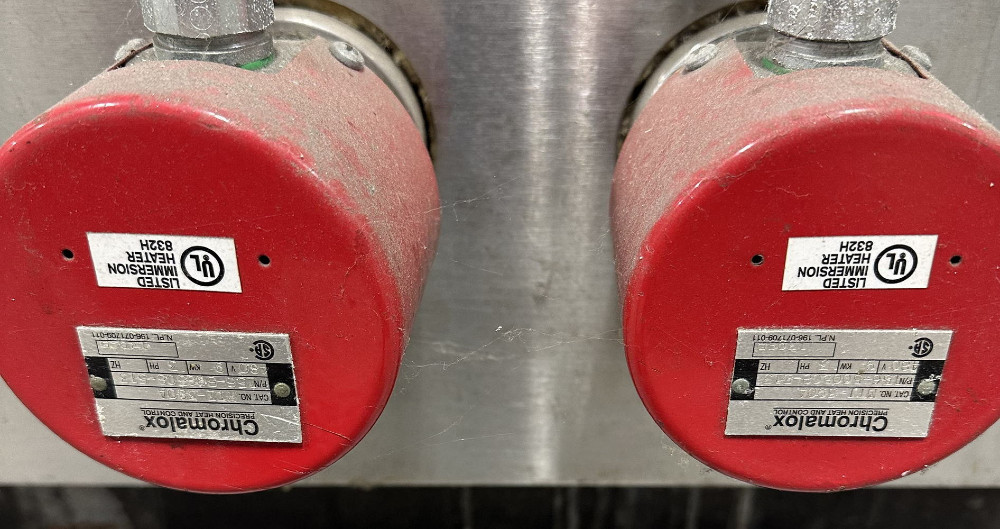

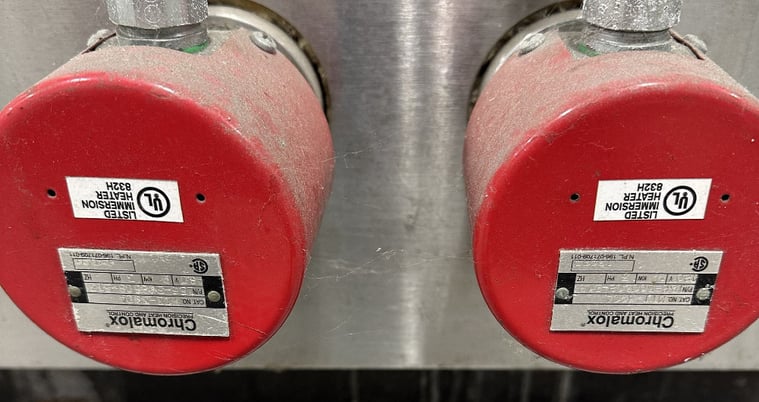

(2) Chromalox 9 kW Electric Heaters, 480/3
3 HP Pump with Variable Frequency Drive, AB Powerflex Gusher Pump
Auto Fill Float with Overfill Safety Float
Dual Removable Chip Screen
Sloped Tank Bottom with Wash-Out Nozzles

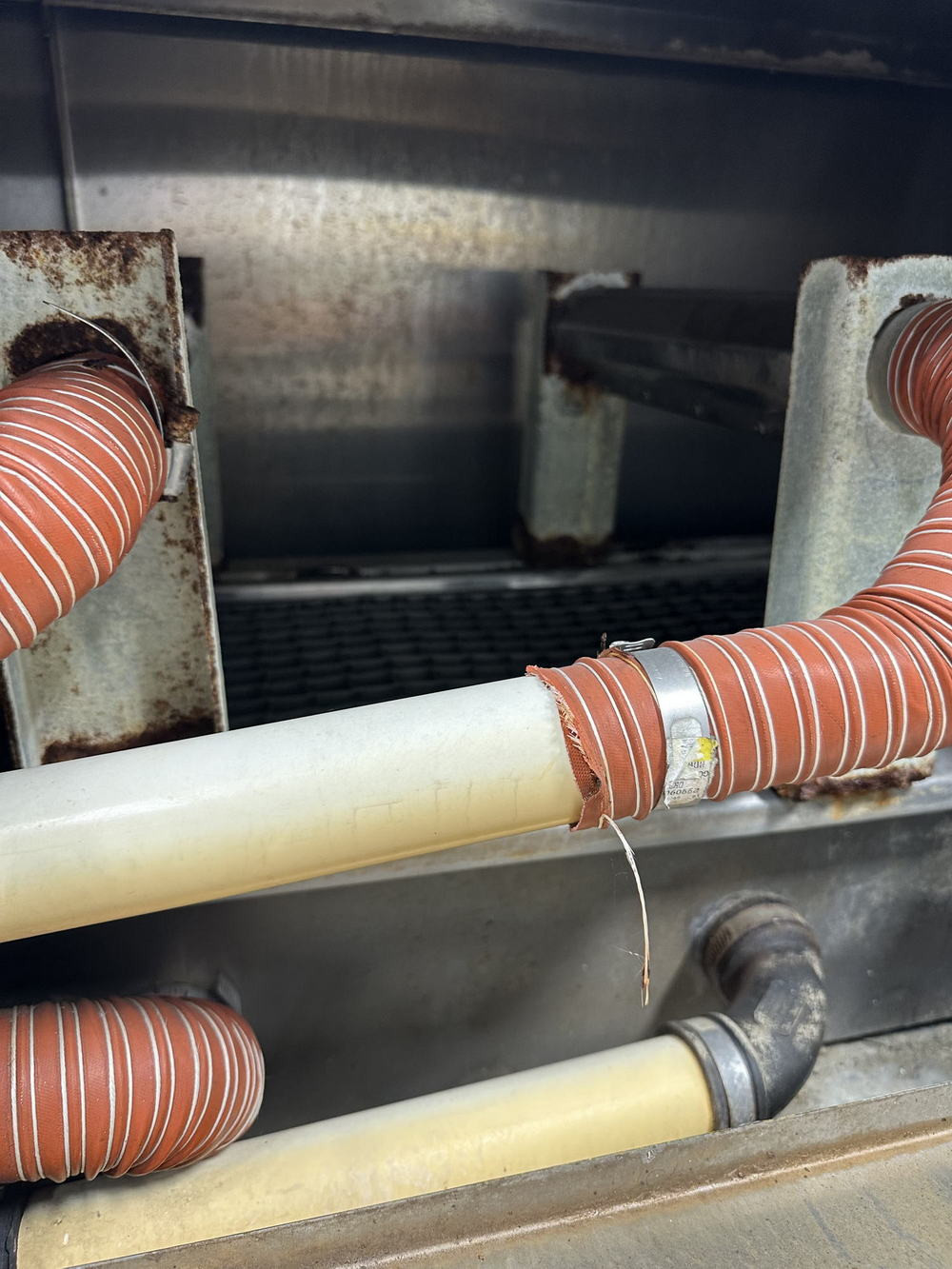

48" Blow-Off Section:

Regenerative Type
Air Knife
Air Tube with Drilled Holes
5 HP with (2) 24" x 24" x 1" Filters

16" Unload Length

EQUIPPED WITH:

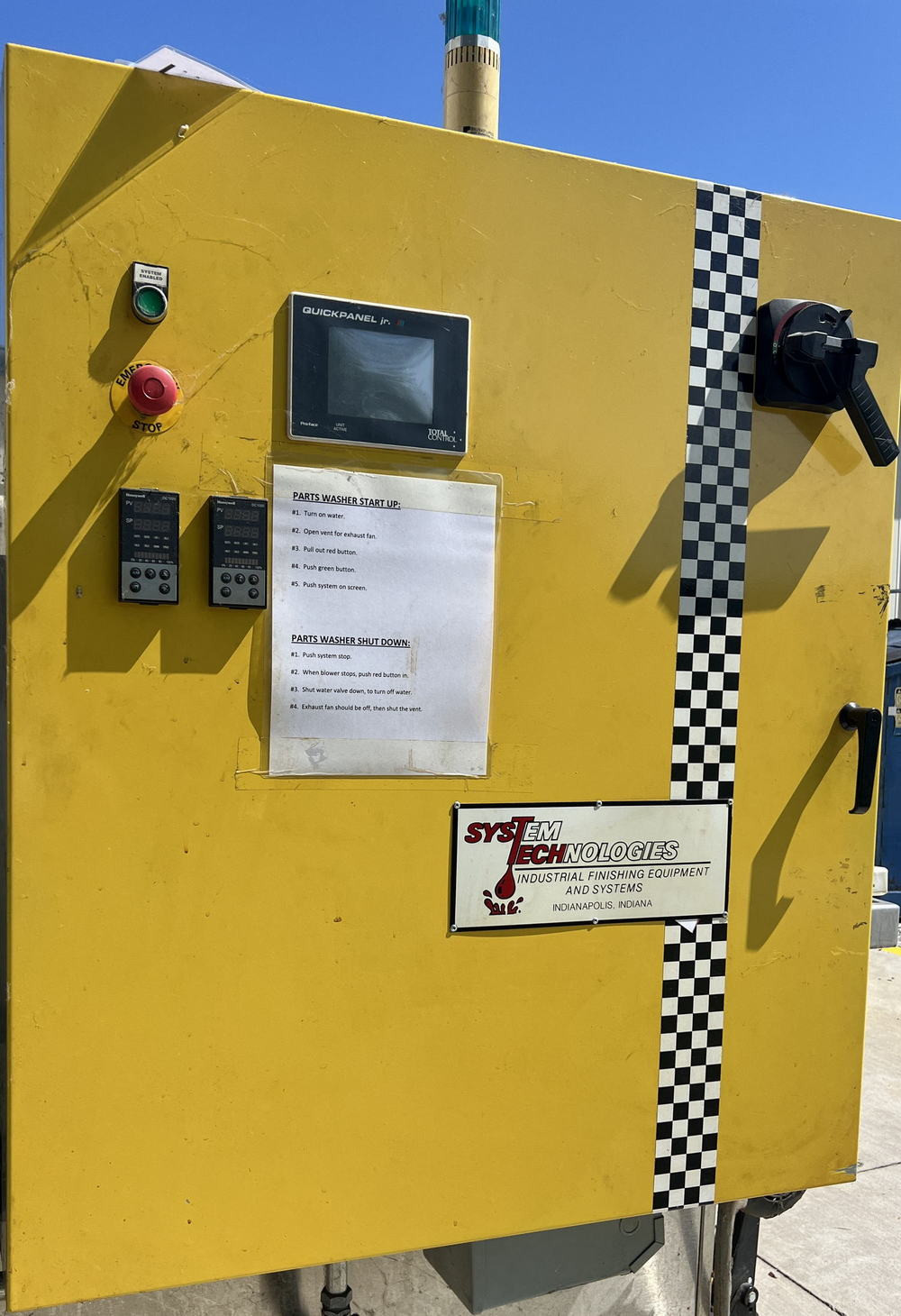

Push Button Start and E-Stop
Honeywell Temperature Control on Both Tanks with Hi/Low Alarms
1/2 HP Power Flex Variable Drive
AB Micro Logic 1500 PLC Control
Quick Panel JR TCP Operator Interface
Stainless Steel Conveyor Belt
Wired for Exhaust Fan System (Did Not Ship with Washer)
Wire for Belt Type Oil Removal in Wash Tank (Missing)
Both Overflow and Bottom Drains
