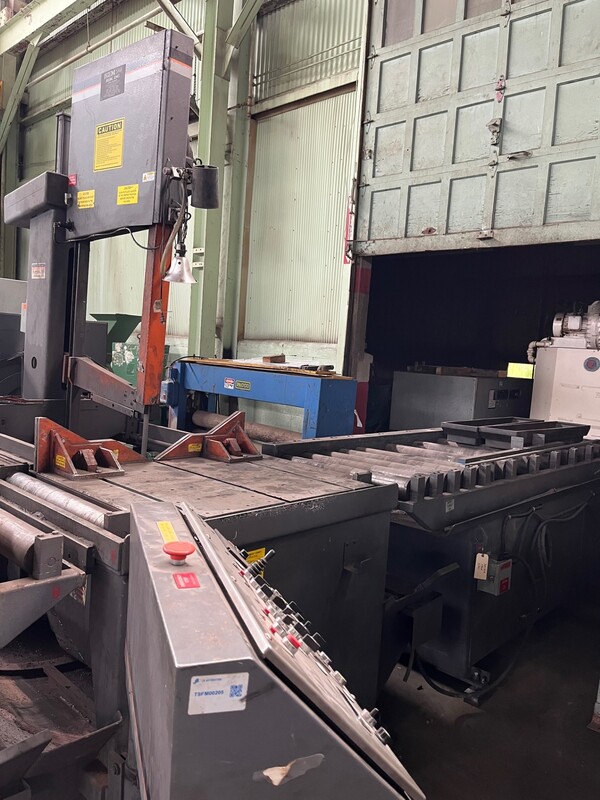

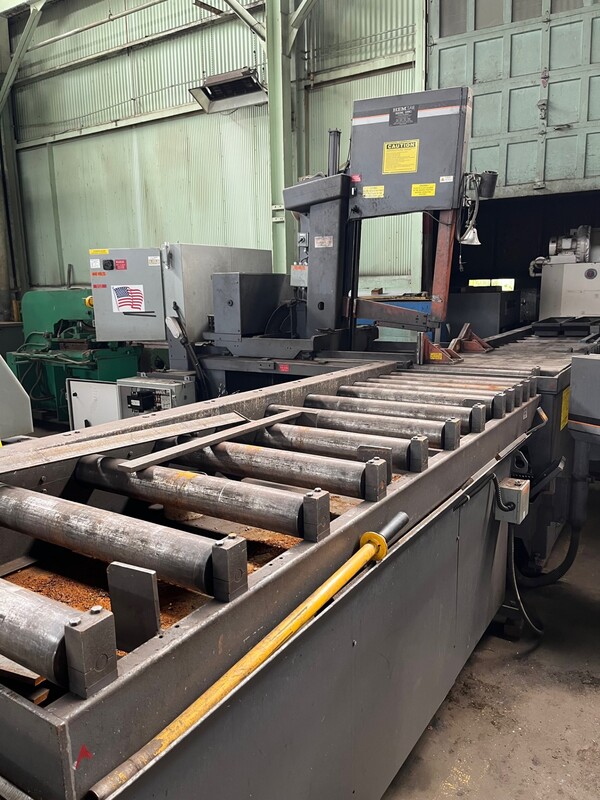

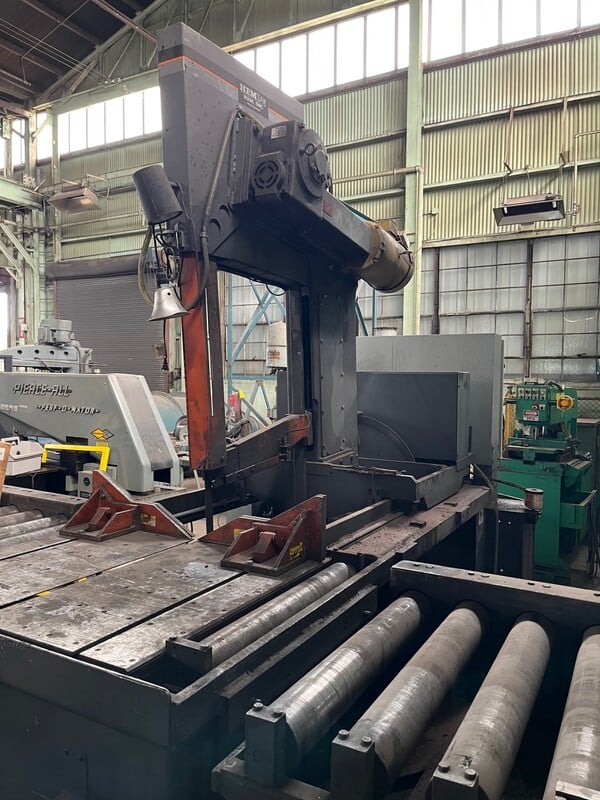

22" x 30" Hem #VT140HM-60, semi-automatic double miter tilting head vertical band saw

Estimated monthly payment valid upon approved credit.

Request Formal Quote

22" x 30" HEM SEMI-AUTOMATIC DOUBLE-MITER
TILTING-HEAD VERTICAL BAND SAW w AUTOMATED MATERIAL HANDLING SYSTEM
New 2012, Feed Tables - power tilt
22" x 30" HEM SEMI-AUTOMATIC DOUBLE-MITER
TILTING-HEAD VERTICAL BAND SAW w AUTOMATED MATERIAL HANDLING SYSTEM
New 2012, Serial No 1143812, Model VT140HM-60,
EQUIPPED WITH:

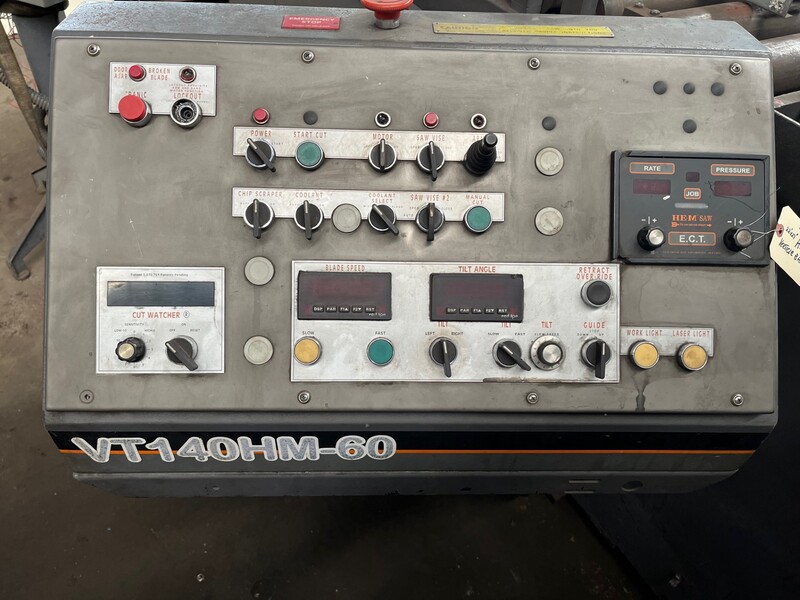

HEM Swing Away Control Console w/Cut-Watcher

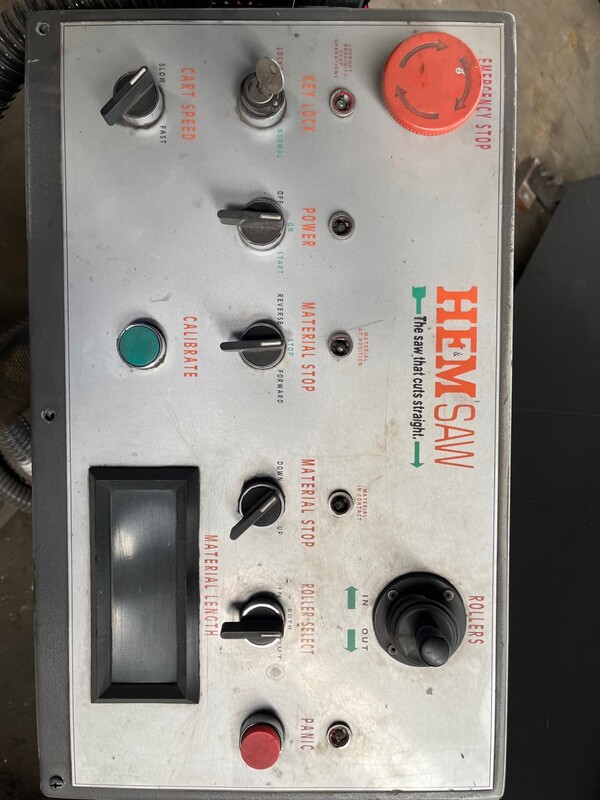

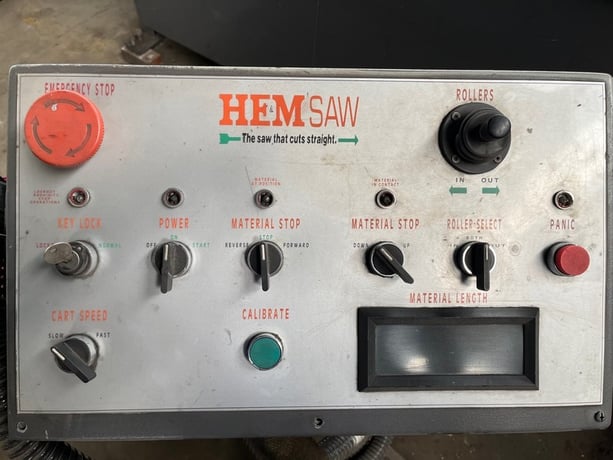

HEM Material Handling Automation Control Stand
Powered Tilt - Variable Blade Speed

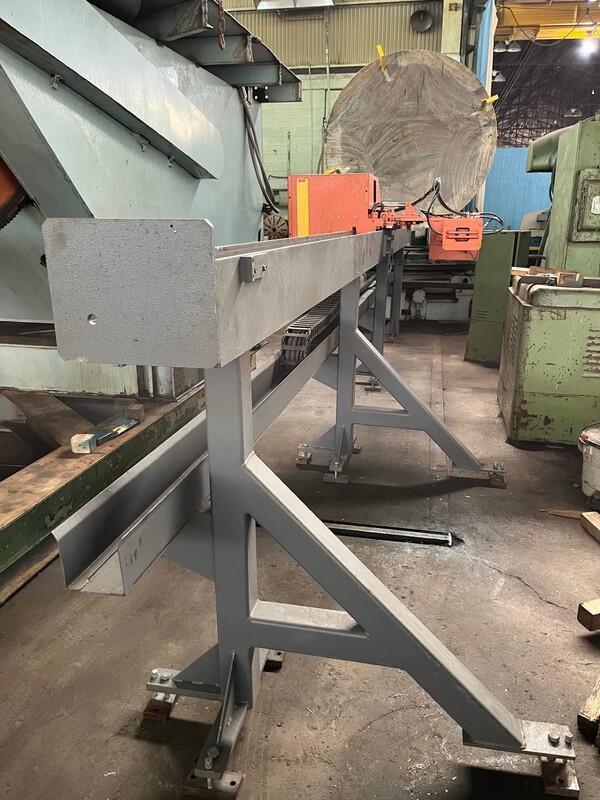

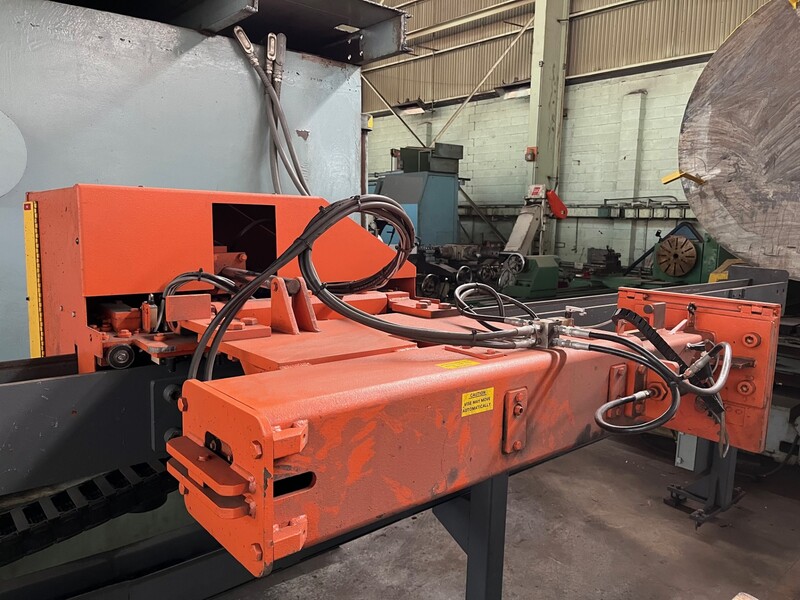

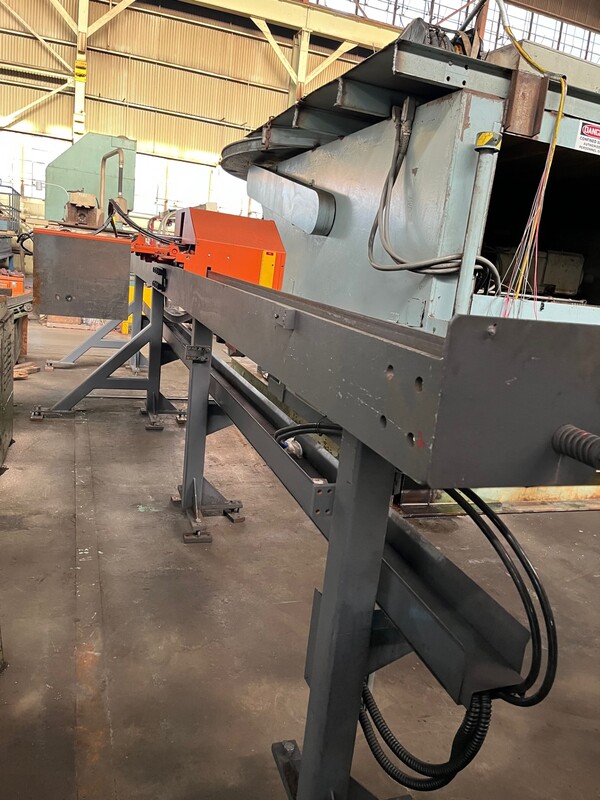

Automated Material Handling System w Swing Away Cut To Length Automatic Stop

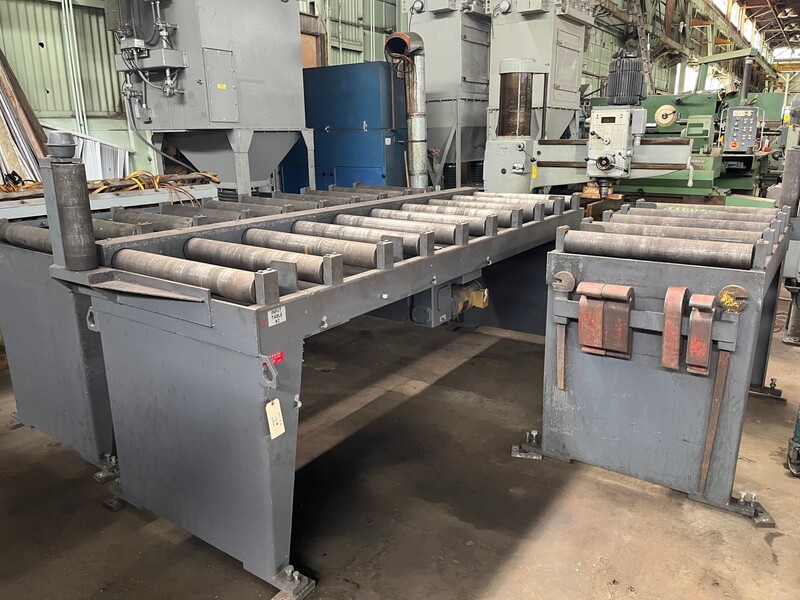

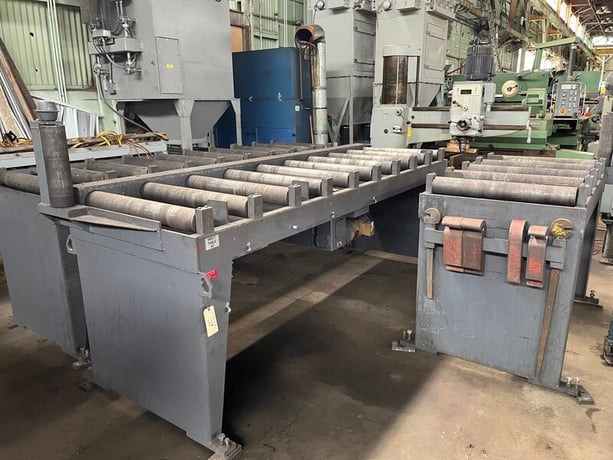

(4) 10' x 30" Feed Tables - (1) 5' x 30" Feed Table

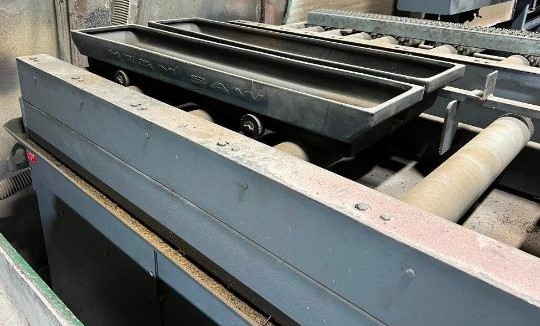

Powered Chip Conveyor
CATALOG SPECIFICATIONS:
Work Capacity, Nominal.......... 22" x 30"
Work Capacity 45-Degree Blade, Left.......... 22" x 20"
Work Capacity 45-Degree Blade, Right.......... 22" x 20"
Work Capacity 60-Degree Blade, Left 22" x 13.5"
Work Capacity 60-Degree Blade, Right 22" x 13"
Square Capacity, Range.......... 0 to 22"
Round Capacity, Range........... 0 to 22"
Blade Width 1.5"
Blade Lenth 20'
Blade Thickness .050"
Main Motor, Horsepower 10 HP
Hydraulic Motor, Horsepower 5 HP
F.O.B. OUR WAREHOUSE
