T & H #WU11-9, 3/8" Stainless Tube Mill, 2009

Description

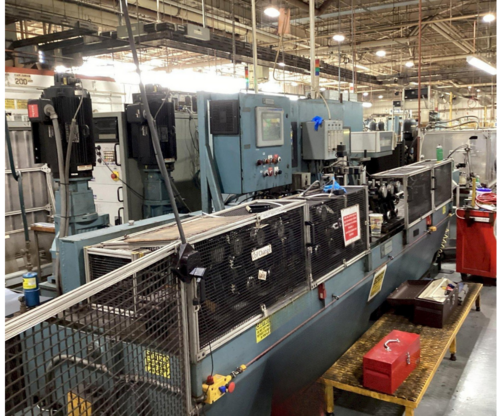

This listing is for a 3/8" T&H Lemont WU11-9 Tube Mill.
Manufacturer: T & H Lemont
Model: WU11-9
Tube OD Range: .236" 1.000"
Finished Tube Diameter: .312"
Wall Thickness Range: .012" .030"
Maximum Tube Diameter: .750"
Material Capability: 316L Stainless Steel
Mill Speed: 060 FPM
Passline Height: 43"
Mill Direction: Right to Left

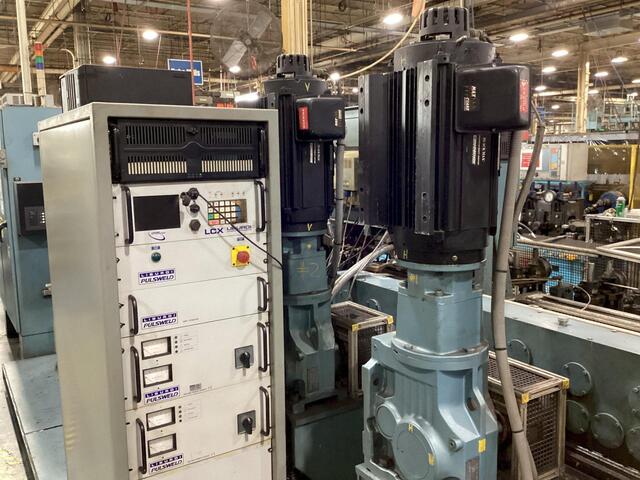

Voltage: 480V / 3 Phase
Welding: Laser / TIG
Driven Roll Shaft Diameter: 1.125"
Roll Space (Breakdown / Fin / Sizing): 3.000"
Nominal Roll Root Diameter: 2.500"

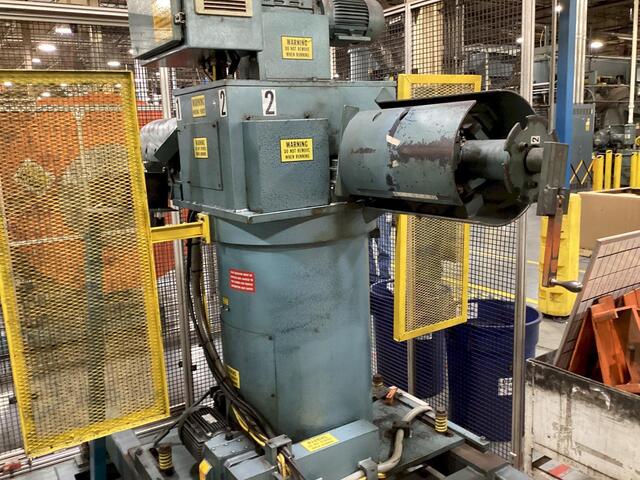

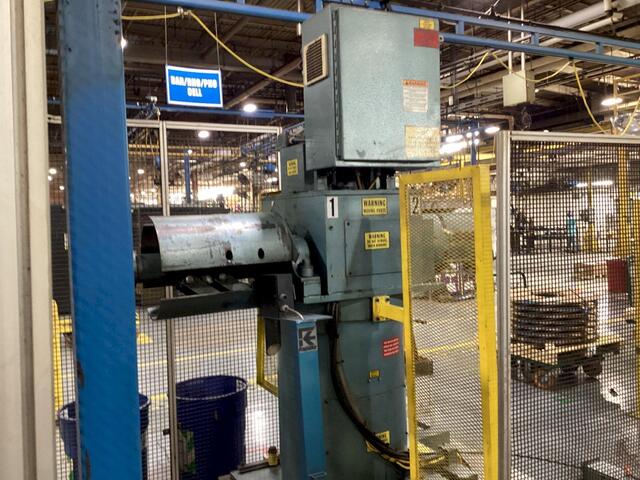

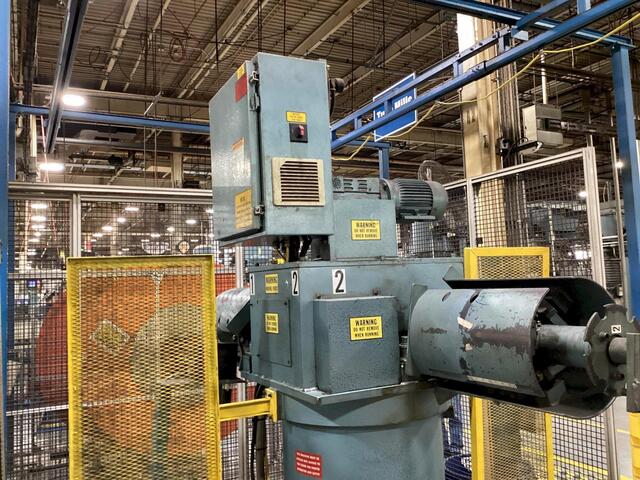

Uncoiler Capacity: 1,500 lbs per side
Maximum Coil Width: 12"
Maximum Coil OD: 54"
Drum Expansion: 14"20" Manual
Segments: 3
Shear & End Welder Material: 316L Stainless
Strip Width: 1.000"
Gauge Capacity: .012"
Maximum Shear Strength: 65,000 PSI
Power Supply: 110V, 20 Amp
Weld Type: TIG

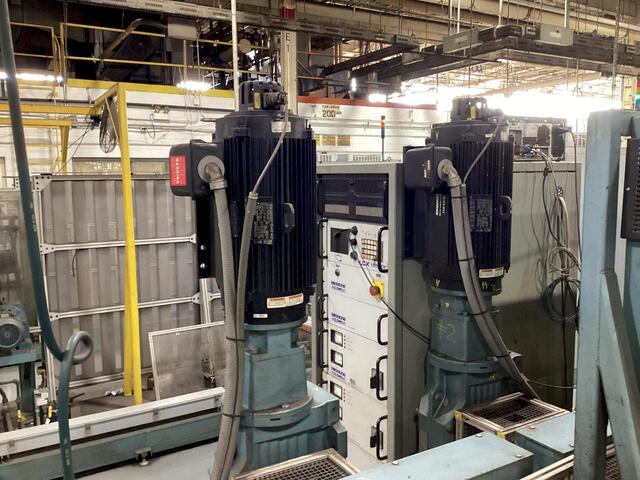

Drive Motors: (3) 10 HP
Variable Motor Speed: 1001150 RPM (2100 RPM Max)
Dynamic Braking: All Sections
Speed Stability: 1%
Flying Cutoff System: Technisales ACCU-CUT
Cut Capacity: .236" 1.000" OD x .012" .030" Wall
Maximum Line Speed: 60 FPM
Cut Length Range: 18' 20'
Length Tolerance: .020"
Tube End Squareness: .008"
Maximum OD Burr: 10% of Wall Thickness
Run-Off Table: Height Adjustable Steel Weldment with Air-Activated Dump
Eddy Current Inspection System: Eddy Check S NEMA 12 with Inspection Head, Differential Encircling Coil, Probes, RF Cables, Electronic Rack, Power Supplies, Connector Box, Paint Marker, Horn & Lamp
Location: Holland, OH
Spec Sheet
2009 T & H WU11-9
SPECIFICATIONS:
Weight... 999 lbs
