3/8" T & H Lemont #WU11-9, Tube Mill, Stainless Steel

3/4" x 0.012" TUREK & HELLER WU-11-9 PRECISION STAINLESS STEEL TUBE MILL, NEW
2009
MANUFACTURER - TUREK & HELLER
MODEL - WU-11-9
TYPE - PRECISION SMALL DIAMETER TUBE MILL
WELDER - SINGLE TORCH TIG TYPE
MATERIAL - STAINLESS STEEL
YEAR - 2009
MAXIMUM DIAMETER - 0.750"
CURRENTLY TOOLED FOR - 0.312"
WALL THICKNESS RANGE - 0.012"
MILL DIRECTION - RIGHT TO LEFT
LINE COMPONENTS:
TUREK & HELLER DOUBLE END POWERED UNCOILER
WEIGHT PER SIDE - 1500 LBS
MAXIMUM WIDTH - 12"
MAXIMUM OD - 54"
ID RANGE - 14" - 20"
EXPANSION TYPE - MANUAL
SEGMENTS - 3
UNLOADING METHOD - CRANE
INCLUDES: COIL DEPLETION SENSOR & PNEUMATIC DRAG BRAKES
TUREK & HELLER SHEAR & END WELDER
STRIP WIDTH - 1"
GAUGE RANGE - 0.012"
SHEAR STRENGTH - 65,000 PSI
POWER SUPPLY - 110 V, 20 AMP
TYPE - TIG
WELD POWER SUPPLY - 225 AMP AC/DC POWERR SOURCE

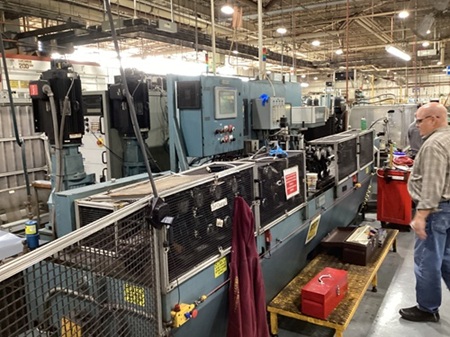

TUREK & HELLER WU11-9 TUBE MILL SYSTEM
MILL CONFIGURATION - (4) BREAKDOWN/FORMING STANDS, (3)FINISH STANDS, (3)
SIZING STANDS
MAX TUBE DIAMETER - 0.750"
CURRENTLY TOOLED FOR - 0.312"
MAX WALL THICKNESS - 0.012"
DRIVEN SHAFT DIAMETER - 1.125"
BREAKDOWN SECTION ROLL SPACE - 3"
FIN SECTION ROLL SPACE - 3"
SIZING SECTION ROLL SPACE - 3"
NOMINAL ROLL ROOT DIAMETER - 2.5"
PASSLINE HEIGHT FROM FLOOR TO BOTTOM LINE OF TUBE MILL - 43"
MILL SPEED - 0-60/FPM
VOLTAGE - 480 V, 3 PH
MOTORS - (3) 10 HP AC MOTORS (BREAKDOWN, FINISH, SIZING)

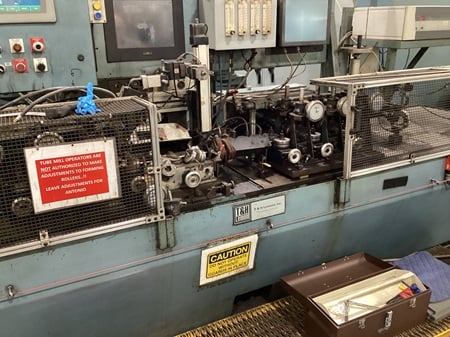

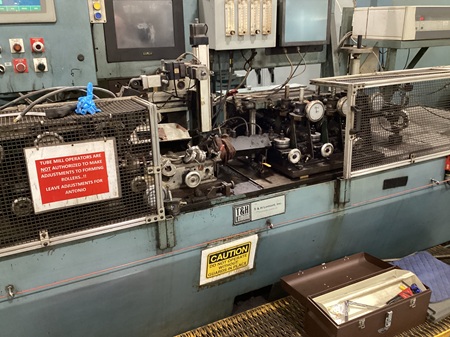

FOUR BREAKDOWN STANDS
SIDE HORIZONTAL PASS BETWEEN - 2, 3,4
THREE FINSHING STANDS
SIDE HORIZONTAL PASS BETWEEN - 5,6,7 (FRONT/BACK)
2 ROLL WELD BOX
ENTRY HORIZONTAL SIDE PASS
MILLER WP27 SINGLE TIG TORCH UNIT W/ HF AND 5000 HZ AMP PULSING
WATER COOL DOWN SECTION
WELD INSPECTION

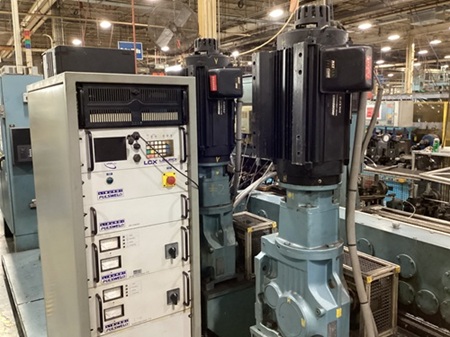

LIBURDI LCX PULSWELD
200 AMP POWER SOURCE & WELDING SYSTEM
THREE SIZING STANDS
SIDE HORIZONTAL PASS BETWEEN - EACH STAND
FULL BODY INSPECTION
BETA LASERMIKE
TECHNISALES ACCU-CUT FLYING DOUBLE CUT TUBE CUTOFF
TUBE CUTOFF DIAMETER RANGE - 0.236" - 1"
WALL THICKNESS RANGE - 0.012" - 0.030"
MATERIAL - STAINLESS STEEL TUBE
SPEED - UP TO 60 FPM
CUT LENGTHS RANGE - 18" - 20'
CUT LENGTH TOLERANCE - 0.020" +/-
TUBE ENDS TO BE SQUARE WITHIN - 0.008"
CLOSED LOOP LENGTH CONTROL
RUNOUT TABLE
ALLEN BRADLEY POWERFLEX VARIABLE FREQUENCY DRIVES
MILL CONTROLS, HYRDAULIC SYSTEM, COOLANT SYSTEM, & ELECTRICS
