20' Emmegi #Precision-T2-Pneumatica-TU/5, Twin-Head Double Miter Saw, 19.69" saw blade diameter, 5.5 HP, 2250 RPM, 95 psi, 2012

Estimated monthly payment valid upon approved credit.

Request Formal Quote

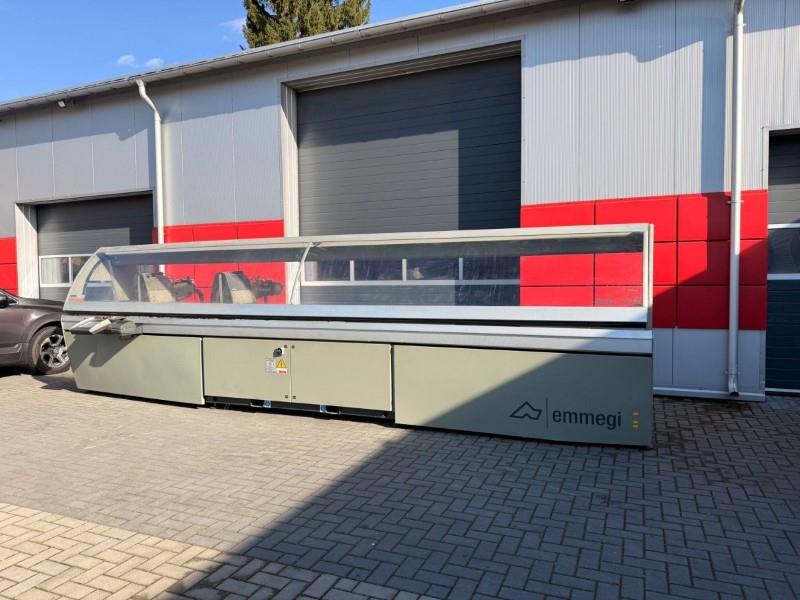

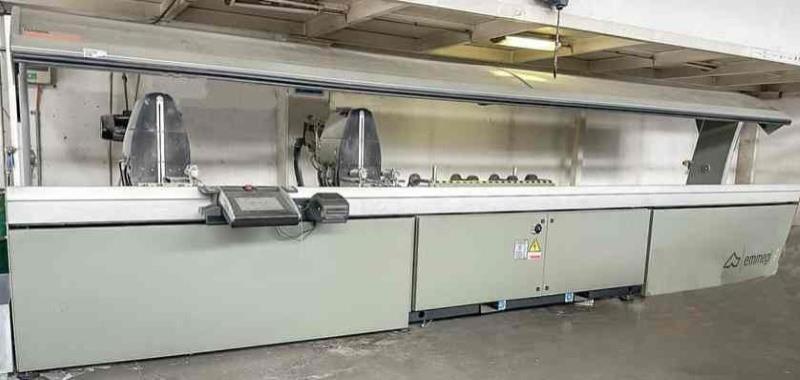

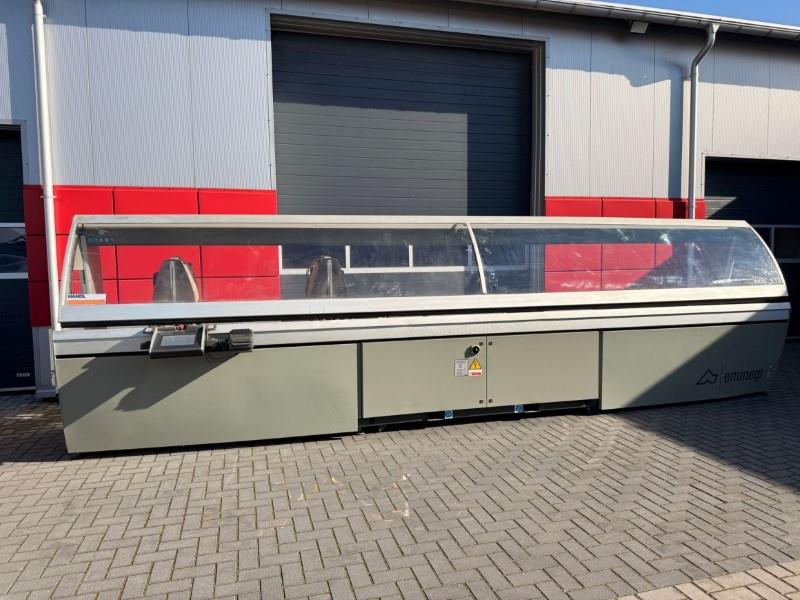

EMMEGI - PRECISION T2 PNEUMATICA TU/5: Twin Head Double Miter Saw for Window Profile Fabrication - 6 Meter (20 ft.)

Twin head, cutting off machine with (3) Controlled axes with: Automatic movement of the mobile head; electronic management of all 45 (internal) to 15 (external) angles. Blades feed driven by: Hydropneumatic cylinders. Available with: Useful cut of 5 m or 6 m in length.

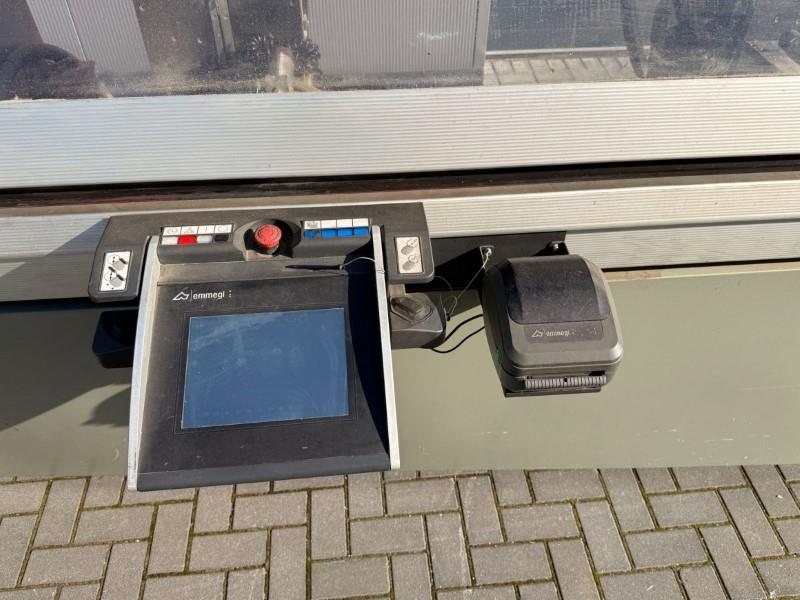

The ergonomic state-of-the-art control panel features: 10.4” Touchscreen display; fully customized software; packed with functions developed in the Microsoft Windows ® environment specifically for this machine.

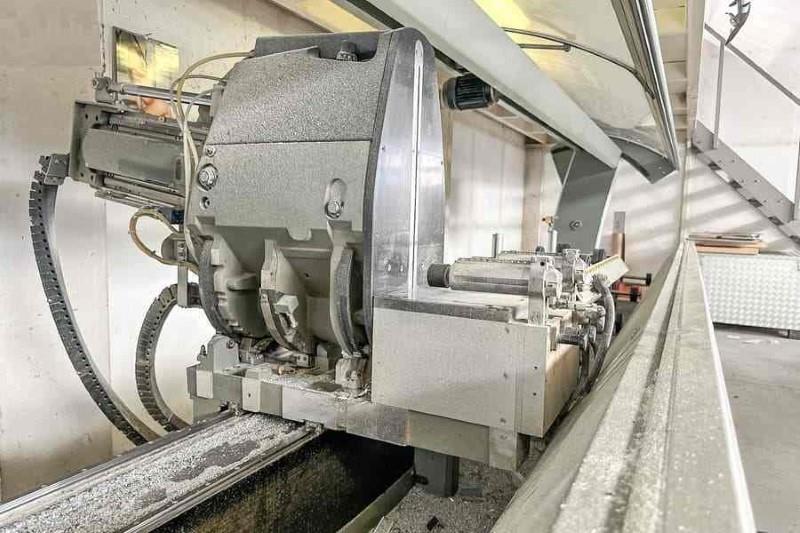

Tilting of each head: Up to 15 outward & 45 inward for both aluminum & PVC versions; designed with means of: (2) Circular guides placed on (4) pairs of steel casters. This patented solution eliminates obstructions in the cutting area, all to the benefit of profile positioning & clamping.

Specifications
● Cutting bed length: 6,000 mm (20').
● Min. cutting length at 90: 375 mm (13-3/4").
● Min. cutting length tilted at: 45: 375 mm.
● Pivoting range inwards: 90 - 45 (up to 22-1/2 manual with digital display).
● Tilting range inwards pneumatically: 90 - 45.
● Saw blade diameter: 550 mm.
● Saw blade speed: 2,250 RPM.
● X-Axis positioning speed: 25 MPM.
● Number of blades: (2).
● Blade advancement: 8-Speed options.
● Power output per motor: 4 kW (5-1/2 HP).
● Compressed air supply: 7 Bar (95 PSI).

Weight: 4,244 Lbs. (1,925 kG).
Dimensions: :24-3/4′ x 6-1/4′ x 5-1/4′ (7,544 x 1,905 x 1,600 mm).

Features
● Capability for series production, as well as for special applications.
● Universal pivoting & tilting of both saw units: Allow cutting of high & wide profiles, as well as every type of compound miter.
● External dimension cuts are possible for all cutting variants. Consequently, no complicated length calculations are necessary.
● Pivoting range with: Digital angle display.
● Functionality of Special Cuts PRO (extended cuts; short cuts; bevel cuts; "V" cuts).
● Functionality of semi-auto. cuts SLICE (push cutting at variable angles & lengths).
● Safety hoods.
● Pulsed coolant system.
● Hydropneumatic saw feed.
● Advanced Windows Computer.
● (2) Vertical Pneumatic Clamps.
● Workpiece support: Movable.
● Chip Extraction System.
● Roller table conveyor: 10 x 15.


NOTE: The machine is in Very Good condition and ready for immediate shipment.
