Description

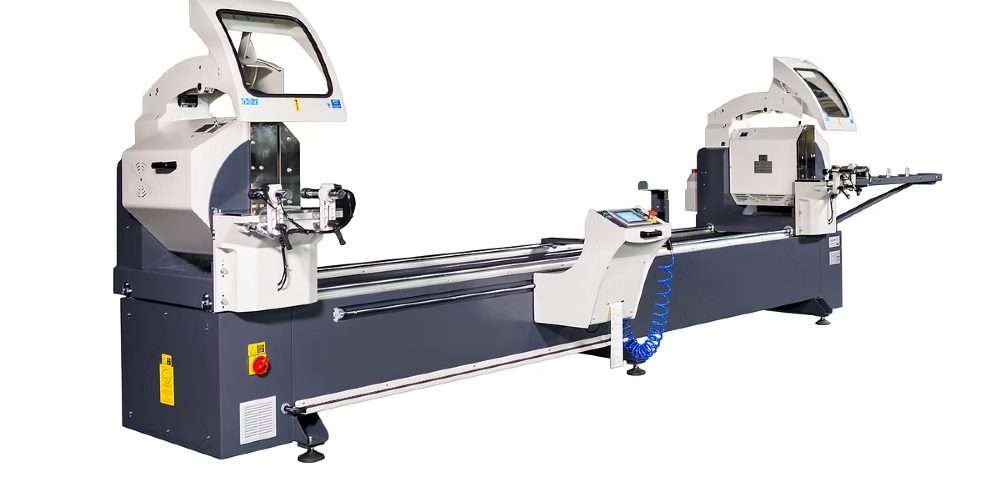

GEMINI – IV SA
Double Head Cutting Machine Ø18” — Semi-Automatic with 1 Axis Servo Control
Used for cutting processes of aluminum and vinyl/PVC profiles in various angles and thicknesses.
Features
Semi-automatic double head cutting machine
1 axis servo-controlled X axis positioning
Hydro-pneumatic cutting feed adjustment
Servo drive X axis for accurate positioning
X axis positioning speed: 1,180”/min — 30,000 mm/min
Rapid hydro-pneumatic angle positioning of heads at 45° and 90°
Hydro-pneumatic controlled rotation axis of head
Minimum internal rotation angle: 90°
Maximum internal rotation angle: 45°

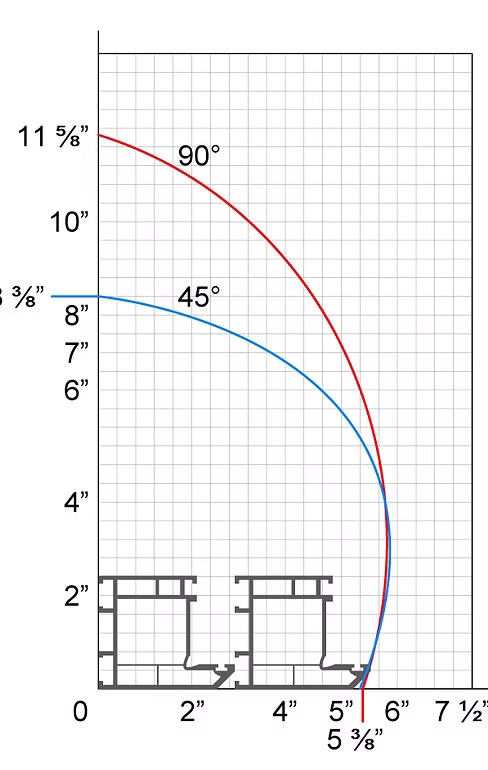

Minimum cutting length with double head at 90° & 45°: 12” / 310 mm — 19” / 490 mm
Maximum cutting length with double head at 90° & 45°: 157” / 4,000 mm
Large Ø18” / 450 mm saw blades for increased cutting capacity

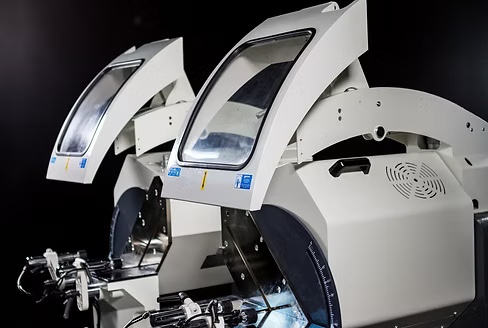

Cutting zone protection covers

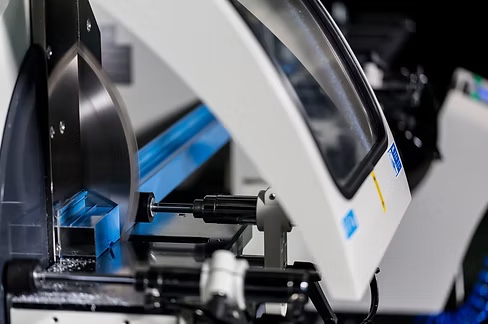

Horizontal and vertical pneumatic clamps
Automatic intermediate profile support — 2 pieces
Roller conveyor on moving head
Cooling lubrication system
Manual adjustment of saw blade stroke distance
Saw blade stroke speed adjustment based on the profile
Data transfer via remote network connection, Ethernet, and USB
Standard Equipment
Hydro-pneumatic cutting feed adjustment
Servo drive X axis
Two carbide saw blades
Cooling lubrication system
Cutting zone protection covers
Horizontal and vertical pneumatic clamps
Automatic intermediate profile supports
Roller conveyor on moving head
Optional Equipment
Vacuum cleaner for chips
Technical Specifications
Saw blade diameter: Ø18” / 450 mm
Saw blade motor power: 3 HP / 2.2 kW
Saw blade speed: 3,000 rpm
Electrical supply: 400 V / 50–60 Hz / 3-phase
Air pressure: 6–8 bar
Air consumption: 16 gal/min
Maximum cutting length: 157” / 4,000 mm
Machine dimensions: 239” x 60” x 61”
Machine weight: 2,480 lbs
