Description
- Description
Product Description

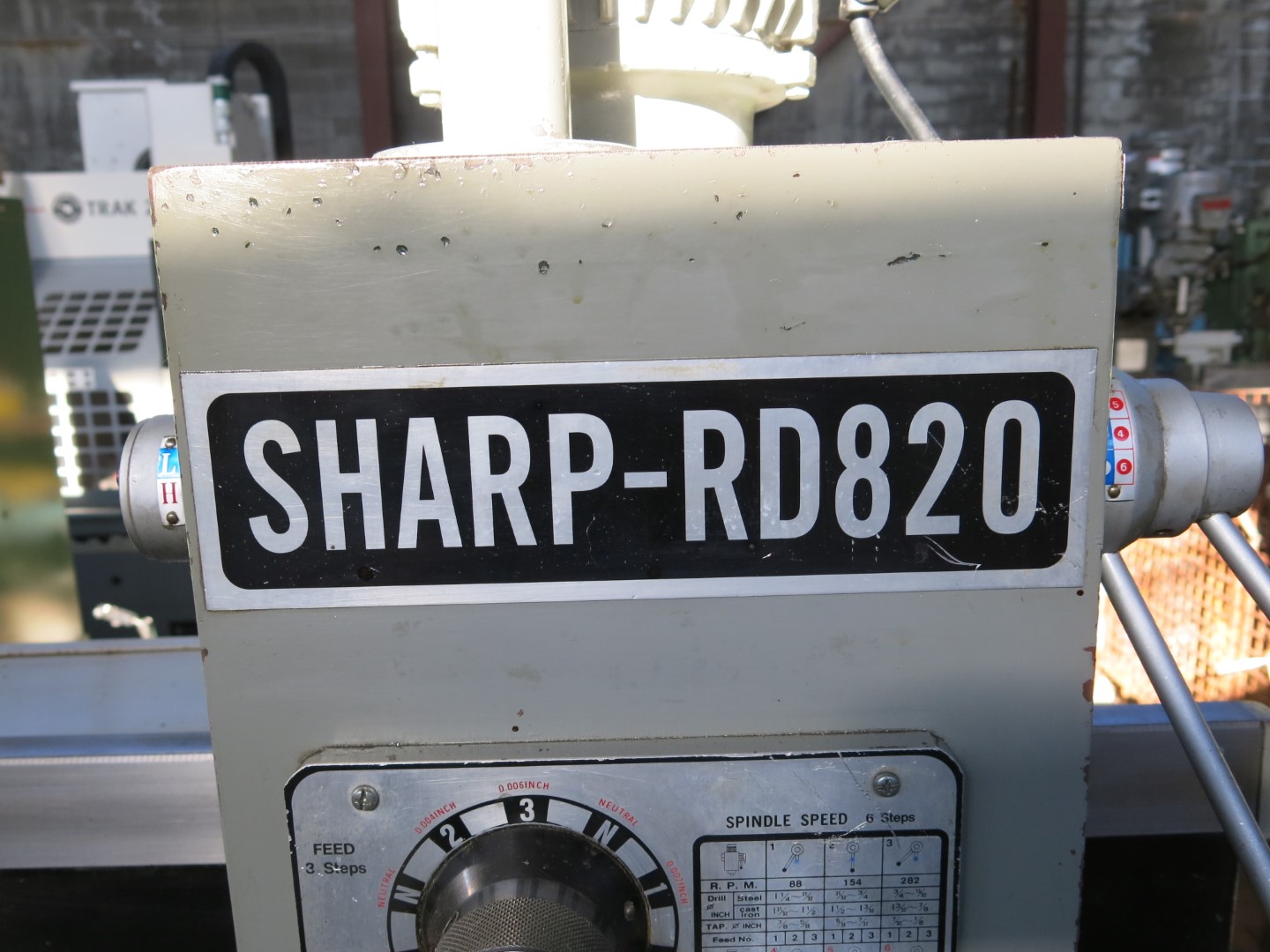

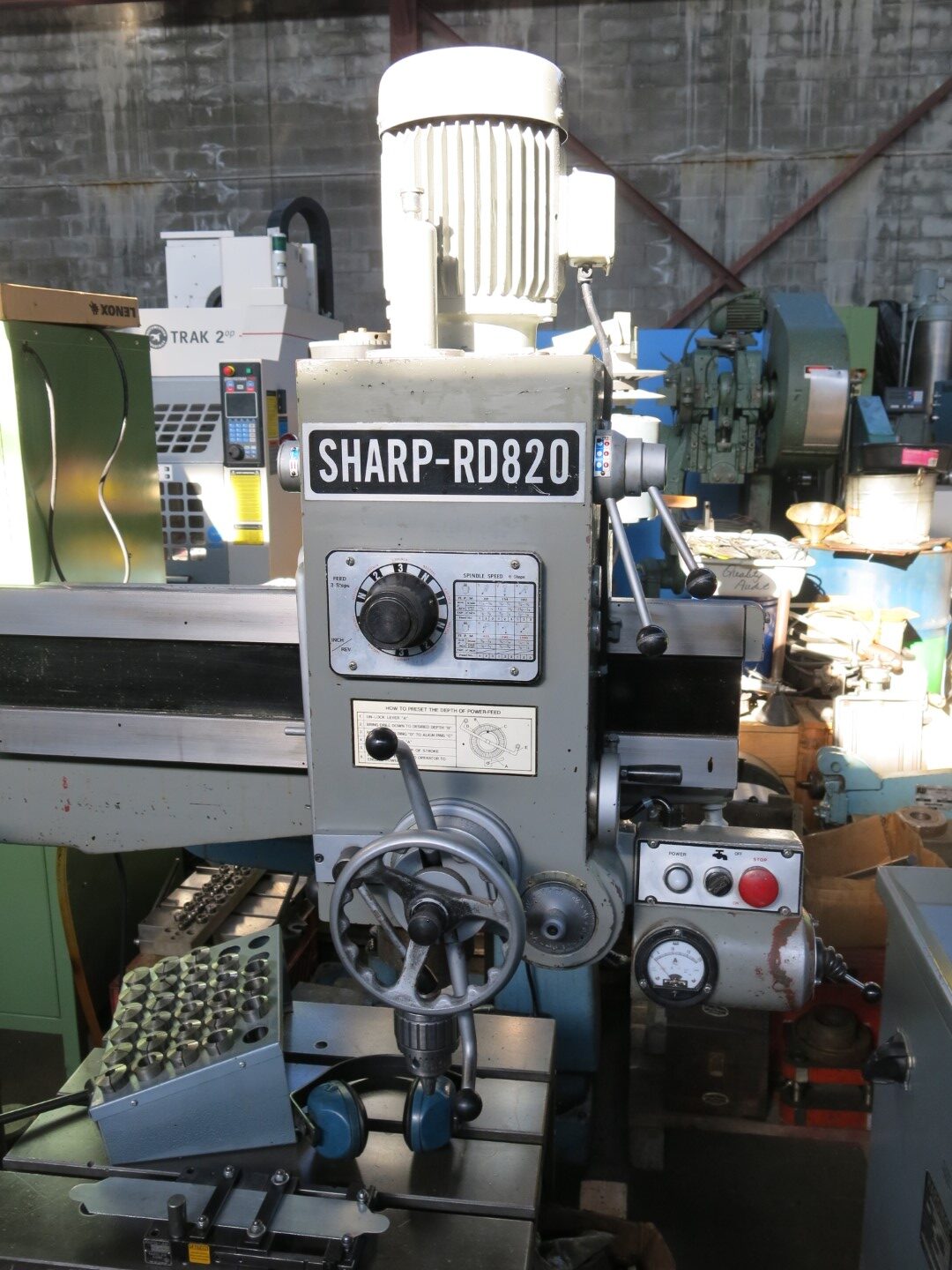

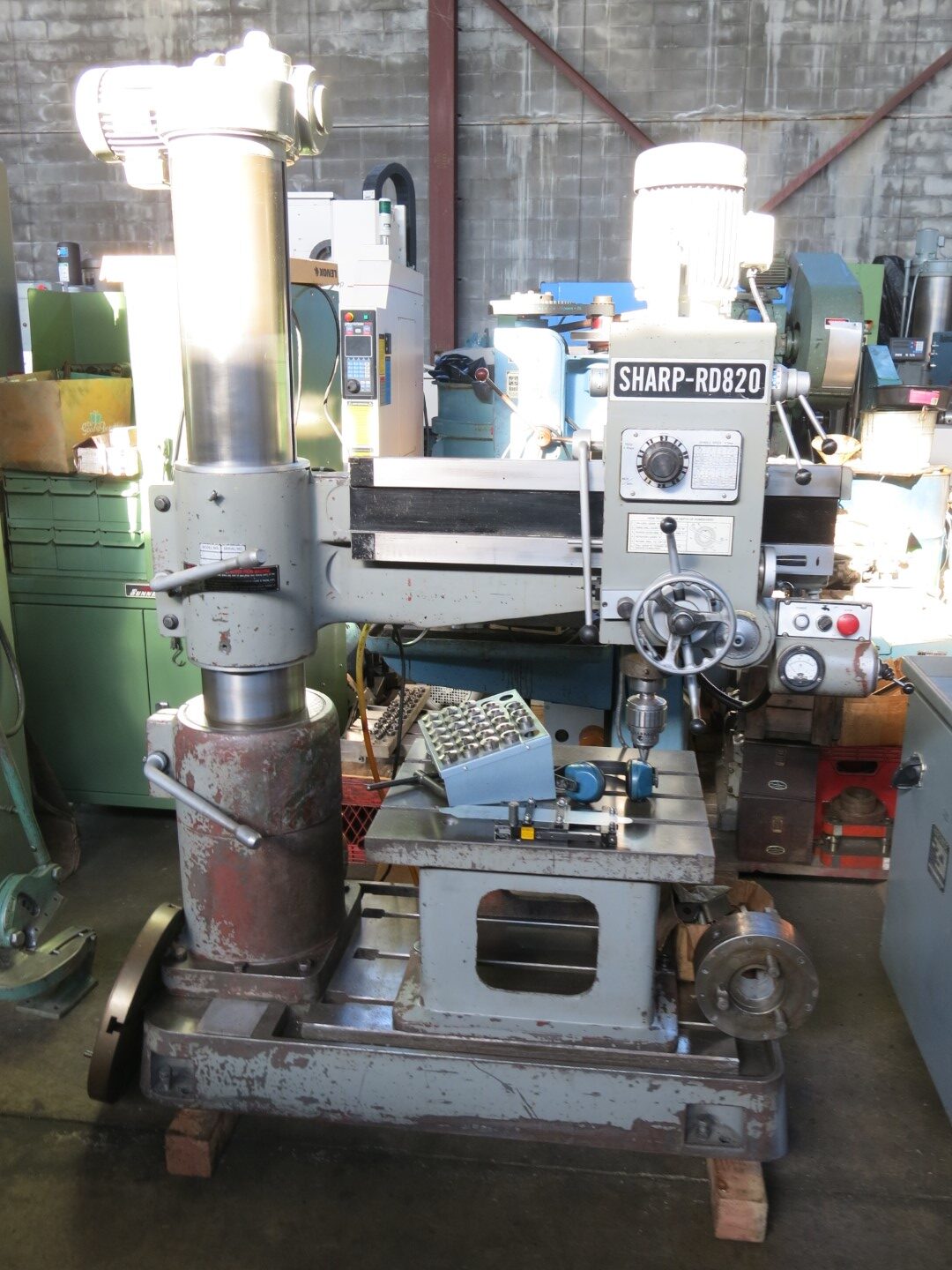

Sharp RD820 Radial Drill
| INCH | METRIC | |
|---|---|---|
| Diameter of column | 8.29 inches | 210 mm |
| Distance from column surface to spindle center, max. | 33.46 in. | 850 mm |
| Distance from column surface to spindle center, min. | 9.06 in. | 230 mm |
| Travel of spindle head | 25.2 in. | 640 mm |
| Distance from base surface to spindle end, max. | 47.64 in. | 1210 mm |
| Distance from base surface to spindle end, min. | 14.76 in. | 375 mm |
| Elevating height of arm | 24.61 in. | 625 mm |
| Effective area of table | 23.62 x 17.52 x 14.96 in. | 600 x 445 x 380 mm |
| Dimensions of base | 49.21 x 25.20 x 6.30 in. | 1250 x 640 x 160 mm |
| Taper hole in spindle | MT #4 | |
| Stoke of spindle | 8.27 in. | 210 mm |
| R.P.M. of spindle (rpm range x steps) | 73-1247 x 6 Steps | 73-1247 x 6 Steps |
| Feed of spindle (1PR x steps) | 88-1500 x 6 Steps | 88-1500 x 6 steps |
| Main motor (HP) | 3 HP | 3 HP |
| Elevating motor (HP) | 1 HP | 1 HP |
| Clamping motor for column and gear-box (HP) | Manual Clamp | Manual Clamp |
| Clamping motor for arm (HP) | Manual Clamp | Manual Clamp |
| Coolant pump (HP) | 1/8 HP | 1/8 HP |
| Machine height from floor, max. | 91.34 in. | 23.20 mm |
| Measurement (LxWxH) | 66 x 32 x 87 in. | 1680 x 810 x 2210 mm |
| Approximate shipping weight | 2976.25 Lbs. | 1350 Kg |
| CAST IRON | INCH | METRIC |
|---|---|---|
| Drilling | 1.97 in. | 50 mm |
| Capacity Tapping | 1.26 in. | 32 mm |
| Boring | 4.17 in. | 106 mm |
| STEEL | INCH | METRIC |
|---|---|---|
| Drilling | 1.26 in. | 32 mm |
| Capacity Tapping | 0.98 in. | 25 mm |
| Boring | 2.75 in. | 70 mm |
| TOTAL POWER CONSUMPTION | INCH | METRIC |
|---|---|---|
| 220V | 5KVA/15 amps | 5KVA/15 amps |
| 440V | 5KVA/7.5 amps | 5KVA/7.5 amps |
ALL ORIGINAL PAINT- WHATEVER THEY USED FOR COOLANT TOOK SOME OF THE PAINT OFF OF THE BASE BUT MACHINE RUNS VERY WELL
Inquire Further with Mullin Machinery!
Buyers Who Viewed This Listing Also Viewed …
2' -8" Knuth #R-32-Basic, radial drill arm, coolant, Halogen light, motorized arm height adjustment
Category: Radial Drills
Seller: Greenway & Associates Ltd
Location: Orange City, IA
Mfr: Knuth
Model: R-32-BASIC
Coolant system, Cube table, Halogen light, Precision ground gears, Motorized arm height adjustment, Mechanical clamping for head column arm, Manufacturer Knuth 8" x 32" Radial Arm Drill Model R 32 BASIC Condition New Serial Number 101522 Stock Number 11151 Drilling capacity 1"/1.3" Column diameter ...more
2' Walker Turner, Radial Arm Drill, 160-8300 RPM Spindle, 1/2 HP, 220 V
Category: Radial Drills
Seller: iGAM
Location: Detroit, MI
Mfr: Walker Turner
WALKER TURNER radial arm drill, used condition, model unknown. Ideal for precision drilling, this reliable piece is perfect for workshops seeking quality equipment., Spec Sheet, WALKER TURNER _UNKNOWN_, Dimensions. 50x43x69, Weight. 890lbs.
2' -14" Knuth #R60V, Radial Drill, 2014
Category: Radial Drills
Seller: Revelation Machinery
Location: Chicago, IL
Mfr: Knuth
Model: R60V
Year: 2014
Make: Knuth, Model: R60V, Year: 2014, Machine Location: Texas, Drilling Capacity: 2.44”, Tapping Capacity, Cast-Iron: M 52, Tapping Capacity, Steel: M 46, Drilling Depth (Max.): 12”, Throat: 14” – 63”, Spindle Nose-To-Table Surface Distance: 14” – 49”, Column Diameter: ...more
2' -6" HTC Johanson #300, power elevation, air clamping, front work table, rear work base, 220 V., 1981, ag #16224
Category: Radial Drills
Seller: Yeoman Machinery Corp
Location: Elkhart, IN
Mfr: Htc Johanson
Model: 300
Year: 1981

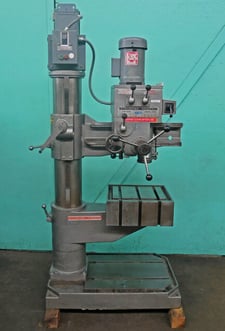

2.3'-7.7" Standard #28-in., Radial Drill, 28" capacity, 22" Vert. & 16.75" Horz. Arm Travel, 4.5" Quill Travel, 1 HP, 110-1384 RPM, 460 V, MT #3 Taper
