Description

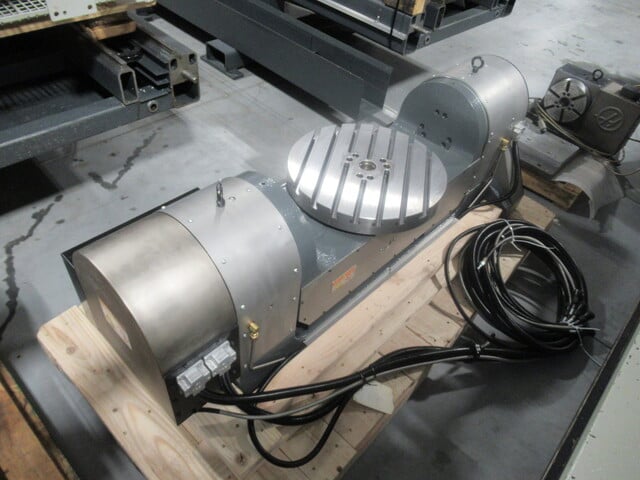

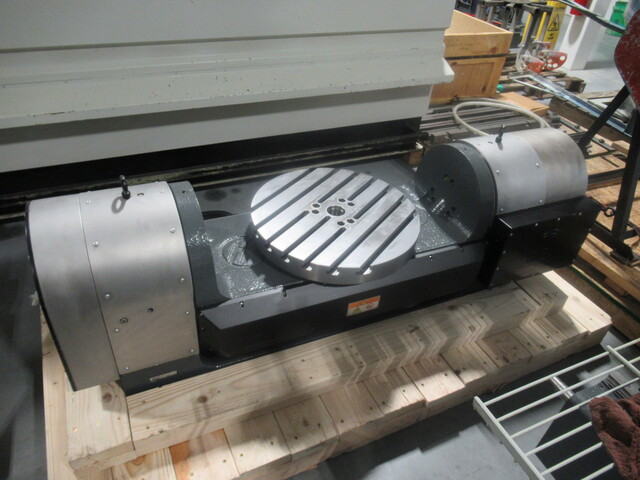

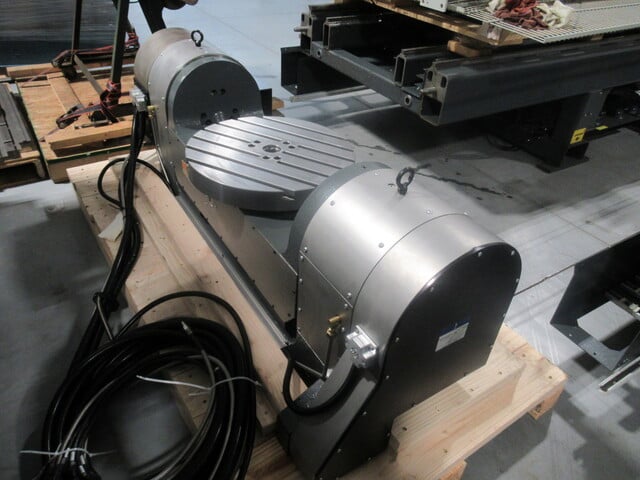

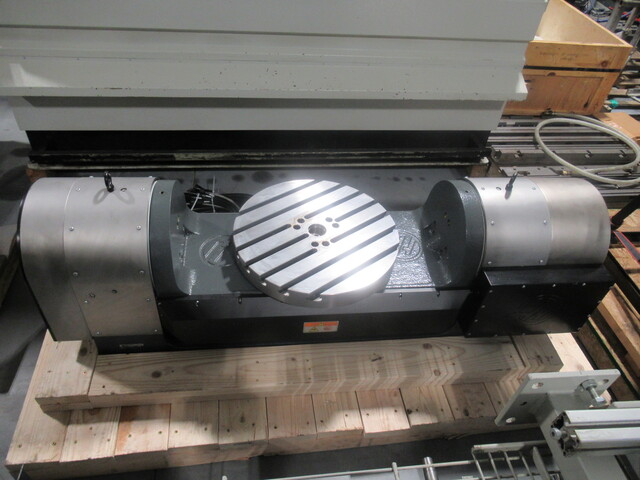

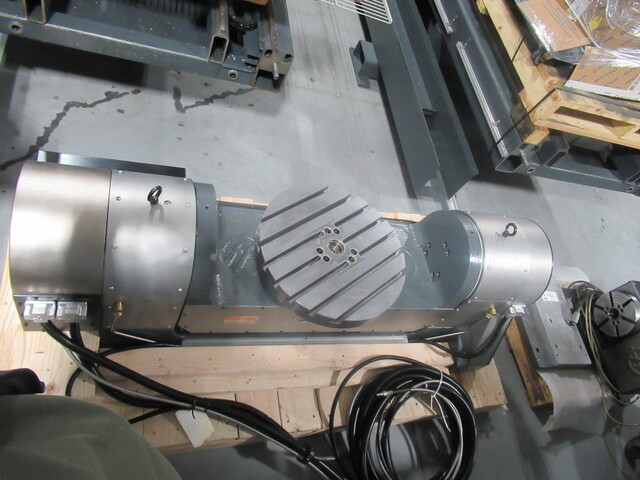

The Haas TR310 Trunnion Rotary Table is a robust dualaxis CNC trunnion designed to expand vertical machining centers into full 5axis machining platforms. With a large 310 mm platter and heavyduty construction, the TR310 allows shops to accurately machine complex, multisided parts in a single setup. Designed for seamless integration with Haas vertical machining centers, the TR310 delivers high positioning accuracy, repeatability, and rigidity for demanding applications. It is an excellent solution for manufacturers requiring efficient indexing, contouring, and simultaneous 5axis motion without sacrificing floor space or spindle access.

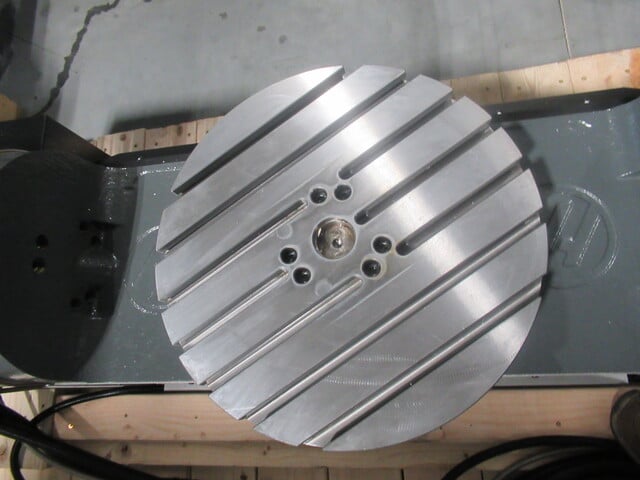

Platter Diameter:: 500 mm (19.685")
A Axis (Tilt) Max Speed:: 50 /sec
Max Weight on Platter:: 500 Lbs.
A Axis (Tilt) Max Torque:: 300 ft-lbf
A Axis (Tilt) Gear Ratio:: 1000 ft-lbf
A Axis (Tilt) Center Height:: 72:1
B Axis (Rotary) # of Heads / Platens:: 1
B Axis (Rotary) Max Speed:: 50 /sec
B Axis (Rotary) Max Torque:: 300 ft-lbf
B Axis (Rotary) Nose or Platen:: Platen
B Axis (Rotary) Gear Ratio:: 72:1
Max Part Swing:: 31" Diameter
Platter Diameter:: 500 mm (19.685")
A Axis (Tilt) Max Speed:: 50 /sec
Max Weight on Platter:: 500 Lbs.
A Axis (Tilt) Max Torque:: 300 ft-lbf
A Axis (Tilt) Gear Ratio:: 1000 ft-lbf
A Axis (Tilt) Center Height:: 72:1
B Axis (Rotary) # of Heads / Platens:: 1
B Axis (Rotary) Max Speed:: 50 /sec
B Axis (Rotary) Max Torque:: 300 ft-lbf
B Axis (Rotary) Nose or Platen:: Platen
B Axis (Rotary) Gear Ratio:: 72:1
Max Part Swing:: 31" Diameter
