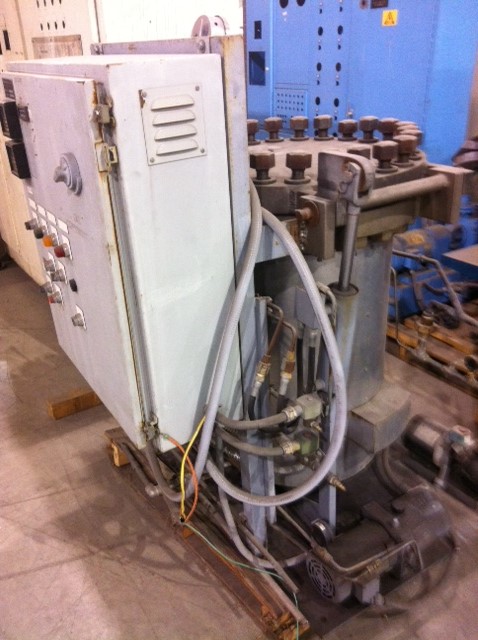

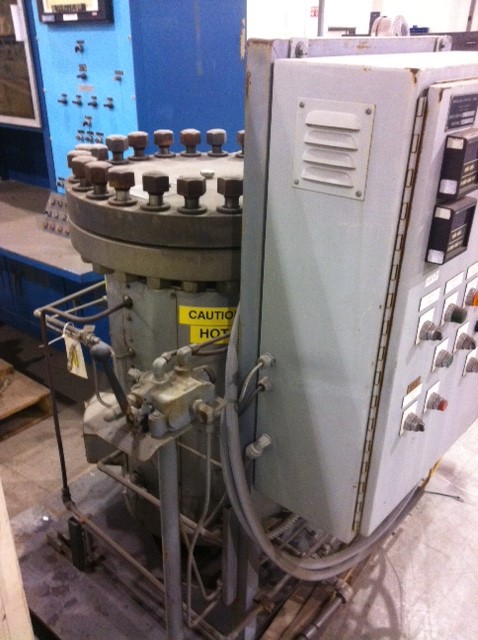

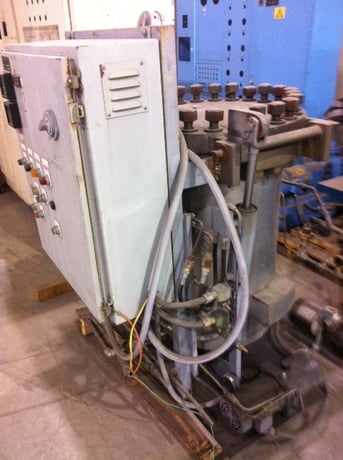

18" x 24" Bondtech autoclave, vertical, 710 psi, 600°, Carbon Steel

Manufacturer: Bondtech Corporation
National Board #: 753
Size: 18" x 24" deep (work space) vertical
Design Pressure: 710 PSIG Operating Pressure: 700 PSIG
Design Temperature: 600 Deg. F
Material: Carbon steel with electro less nickel coating

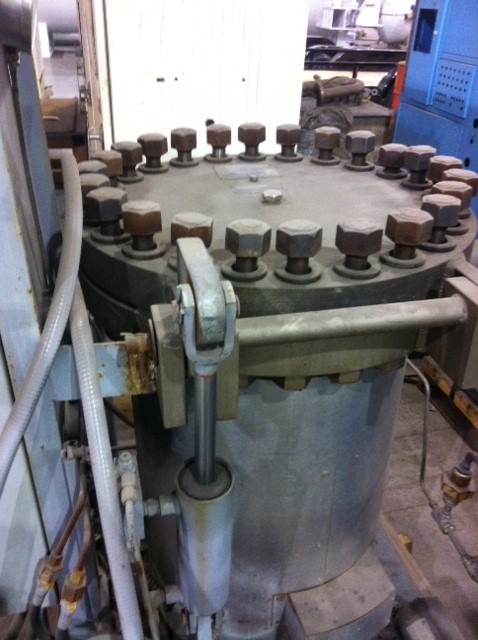

Door: Manual bolted (24 nuts) door to access work space; hydraulic arm to lift up and rotate to clear work space.
Insulation: External insulation to minimize heat loss and operator hazard
Heating: Externally mounted strip heaters rated at 36 KW, 480 V/3 phase.
Cooling: Accomplished by microprocessor causing cooling inlet solenoid valve to pen, allowing cooling water to flow through tubing to transfer heat from pressure vessel.
Vacuum: One 1/2" NPT vacuum source in work zone.

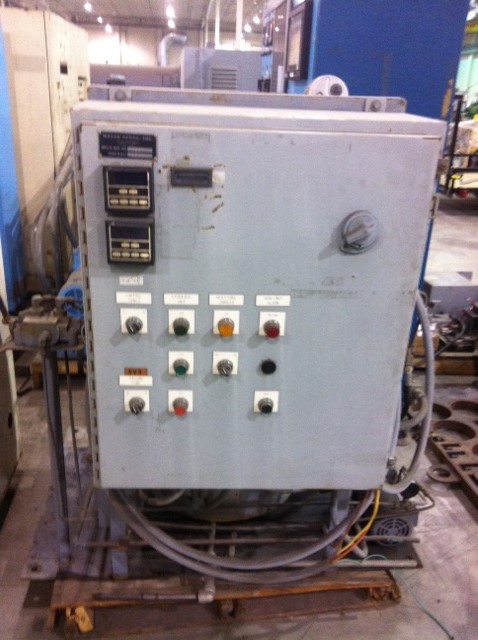

Controls: Nema 12 control panel with connection requirement of 480 v, 3 phase, power and yokigama UT 35 microprocessor with programmable controller, temperature hi-limit controller, all required relays, contactors, starters, pushbuttons, indicator lamps, fusing and overload protection.
Thermocouple: One thermocouple, vessel mounted to provide input to hi-limit controller.
Heat up rate: 770 Deg. F to 500 Deg. F in 30 minutes or less
Supports: Supports for internal shelving
Misc. ASME Code vessel, National Board certified.
