For Sale by Nidec Press & Automation
Description
Bore 4 inches
Stock Width Capacity 18 inches
Max Stock Thickness Capacity At Full Width .200 inches
Stroke 36 inches
Equipped With

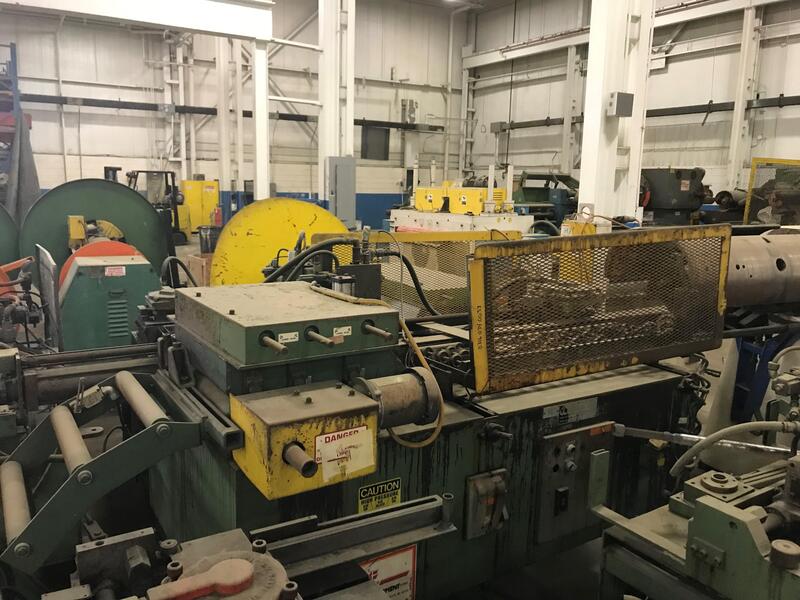

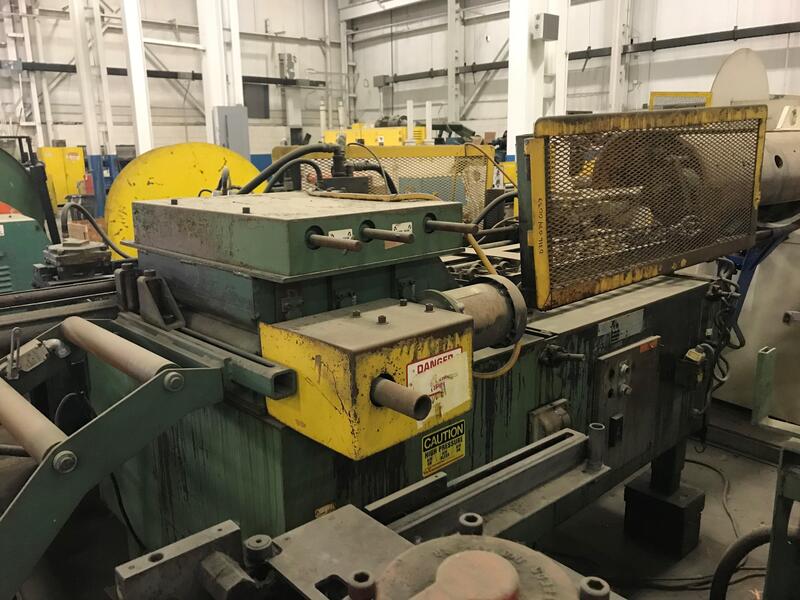

Coe Press Air Feed Straightener Combination Press Feed Specifications:
Stock width capacity: 18"
Stock thickness capacity: .200" x 18" Wide
Stock thickness capacity: .250" x 12" Wide
Stroke (feed) length capacity: 36"

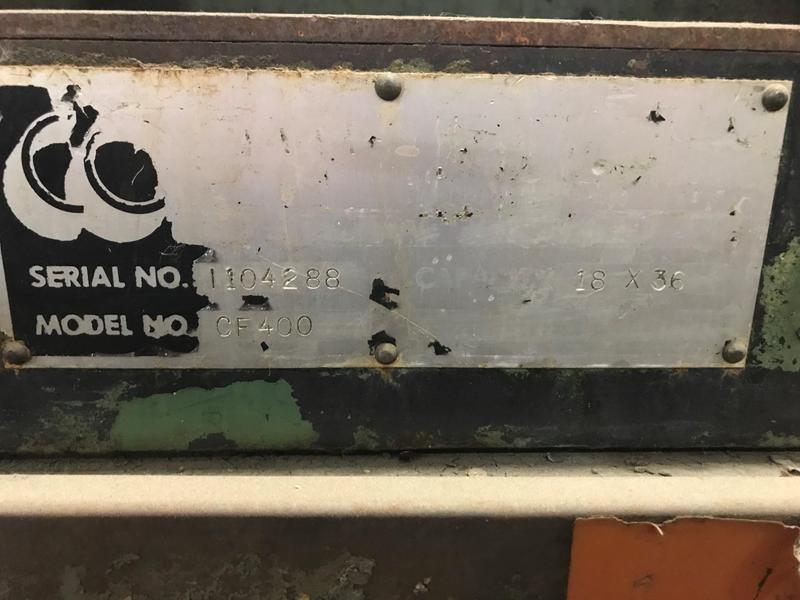

Serial No.: 1104288
Coe Press Air Feed Straightener Combination Press Feed Equipment and Features:
Air Feed powered pinch rolls (motorized) stock threading
Manual clutch engagement for air feed power pinch assembly
Remote pendant control for jog forward and reverse
Manual upper air feed pinch roll adjustment
Five air feed pull thru straightener rolls x three inch diameter
Individual upper air feed pull thru straightening roll adjustments
Adjustable stock width edge guides
Cascade loop support rollers
Air saver cylinder (adjustable) air consumption and speed
Numatics brand pneumatic solenoid control valve
Dual quick exhausts
Pilot pin circuit
Horizontal and vertical cabinet base adjustments
Terms: 40% Deposit, net prepaid
Get Your Price from Nidec Press & Automation!
