Estimated monthly payment valid upon approved credit.
Description

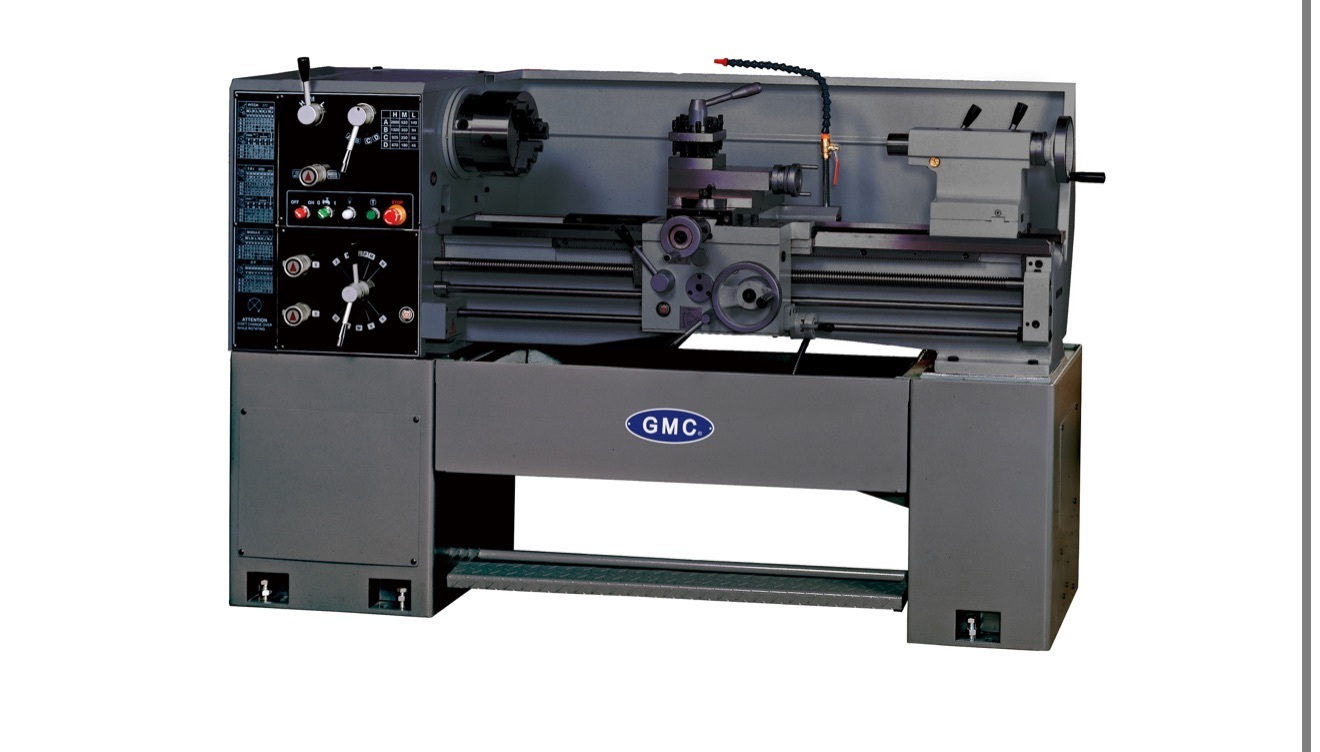

Machine Standard Features and Equipment: Made in Taiwan ISO 9001 certified Large spindle bore 2-3/16 Heavy Duty spindle D1-6 High Tensile cast iron FC25 Heavy Duty guideway width 10 Heavy Duty main motor 5HP 12 spindle speeds from 50-2,000 rpm 32 kinds of inch threads, and 32 kinds of metric threads Threading and feeding rate change without changing gears Spindle is balanced, hardened and precision ground Spindle is supported at 3-point by high precision bearings All gears and shafts are hardened and precision ground Guideways induction hardened and precision ground Automatic lubrication system in headstock and feed box One year industrial warranty for parts Standard Equipment (free): Free CARMAR DRO installed 8 3-jaw chuck with one set of reversible jaws 14 Face plate 1-3/16-5 steady rest with roller jaws 3 follow rest Removeable gap 4-way tools post 4-position carriage stop Foot brake LED Work light coolant system Full length splash guard (2) dead centers and (1) reducing sleeve MT6/MT4 Thread chasing dial Tool box and leveling pads Use 15HP rotary phase converter Specifications GML-1660AT Max. swing over bed 16 Max. length of workpiece 60 Max. swing over cross slide 9-1/2 Max. Swing in gap 21-3/4" Width of Bed 10 Effective length in gap to spindle 8-1/2 Effective length in gap to chuck jaws 3-1/2 Spindle bore 2-1/16 , D1-6 Taper of spindle center M.T.# 6 ( with MT6/MT4 sleeve) Spindle speeds 50-2,000 rpm / 12steps Longitudinal feeds 0.0017-0.0242 IPR, 32 kinds Cross feeds 0.00056-0.008 IPR, 32 kinds Inch threads 56-4 TPI, 32 kinds Metric threads 0.4-7.0 mm , 32 kinds Module threads 0.4-7.0 mm, 32 kinds Diametral pitch threads 8-120 DP , 32 kinds Max. travel of top slide 3-9/16 Max. travel of cross slide 8 Spindle length w/o chuck 20 Leadscrew length X TPI 1-1/4 x 4 TPI Diameter of tailstock quill 2 Max. travel of tailstock quill 4-3/8 Taper of tailstock quill center M.T. # 4 Oil for headstock / Gear box / Apron #30 weight machine oil, TEXACO regal R&O/100, 3 Gal. Main motor 5 HP, 220V/440V, 3 phase Amperage draw 20Amp on 220V, 12Amp on 440V Coolant pump motor 1/8 HP, 220V/440V, 3 phase Net weight, approx. 3,630 LBS Overall dimensions, LxWxH : 82x34x60 Machine shipping dimensions, LWH 102x34x60
Size 16"x60"cc Make LEBLOND Year 2011, ONE USED - 16” x60”cc LEBLOND Toolroom Engine Lathe, Model: RKL1560V, Serial Number: 16611052261, New 2011, 16” Swing Over Bedways, 10” Swing Over Cross Slide, 22” Swing in Removable Gap, Hardways, Inch/Metric Threading, 2 1/8” Spindle thru ...more
SERIAL. 0912282X2146, MODEL. GH-1660ZX, YEAR NEW. 2009, SWING OVER WAYS. 16", SWING IN GAP. 25-1/2", LENGTH OF GAP. 12", SWING OVER CROSS SLIDE. 9", DISTANCE BETWEEN CENTERS. 60", SPINDLE SPEEDS. (12) 25 TO 1800, DIAMETER OF SPINDLE HOLE. 3-1/8", ENGLISH THREADS. (40) 1-5/8 TO 112 TPI, METRIC THREADS. (27) 0.2 TO 6 ...more
