Manufacturer: Chevalier
Model: FSG-1632ADII
Year: 2006
Width/Cross: 16.0
Length/Longit.: 32.0
Stock # 179389
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

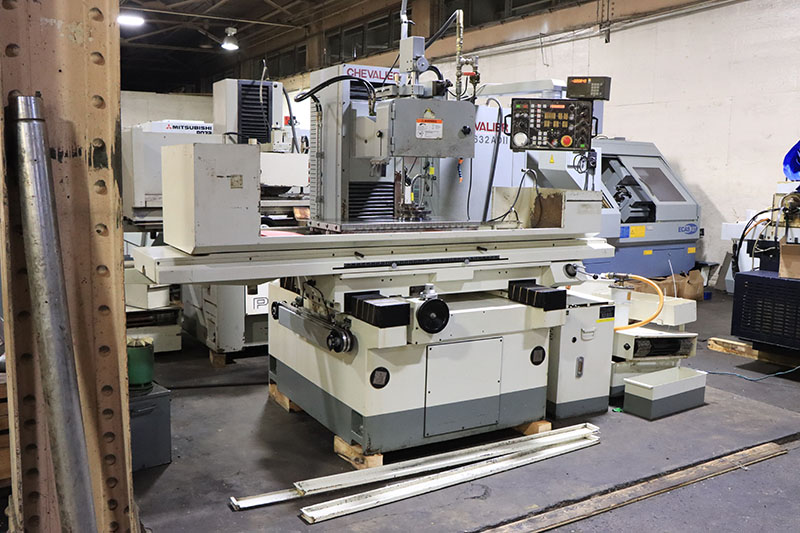

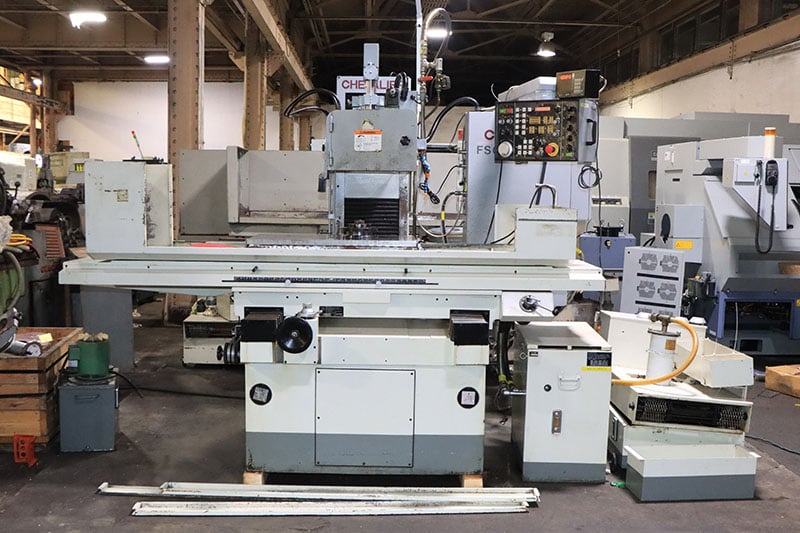

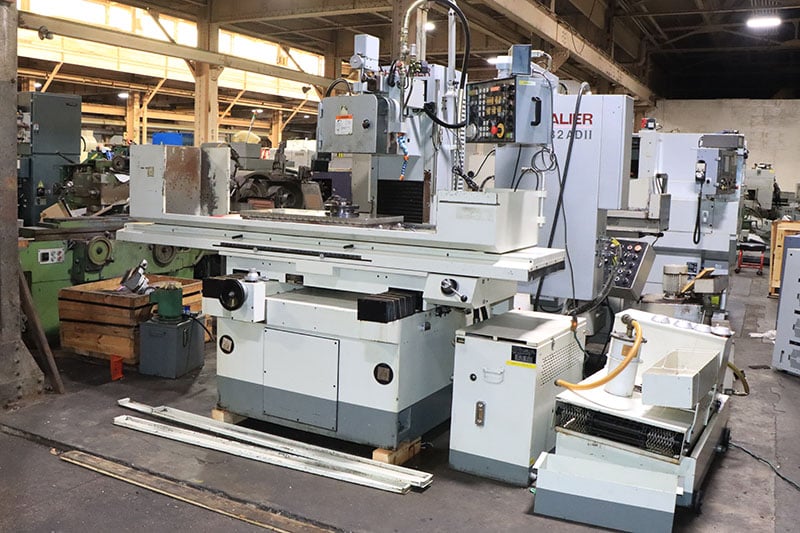

16" X″2" CHEVALIER PRECISION SURFACE GRINDER
W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC
INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)
MODEL: FSG-1632ADII…
S/N: GB95A005…
NEW: 2006
TABLE SIZE........................... 15-3/4" x″1-1/2"
MAX. GRINDING CAPACITY .................. 16" X″2"
MAX. LONGITUDINAL TABLE TRAVEL, HYD. ....″2-5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ..″3-3/8"
MAX. CROSSFEED TRAVEL, AUTOMATIC ........ 16"
MAX. CROSSFEED TRAVEL, MANUAL ........... 18"
DIST. FROM SPINDLE CENTER TO TABLE ...... 24-3/8"
VARIABLE TABLE SPEED, HYDRAULIC ......... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ........... 1/8" TO 2"
CROSSFEED HANDWHEEL, PER GRADUATION ..... 0.0025"
PER REVOLUTION .......................... 0.25"
MICROFEED, PER REVOLUTION ............... 0.005"
PER GRADUATION .......................... 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED ...... 0.000050" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ....... 0.0005"
PER REVOLUTION .......................... 0.05"
MICROFEED ........................... 0.00005"/.0001"
RAPID TRAVERSE RATE ..................... 8" IPM
SPINDLE MOTOR ........................... 5 HP
STANDARD GRINDING WHEEL ............. 14"DIA. x 2"W x 5"B
APPROX. WEIGHT .......................... 6,400 LBS
APPROX. DIMENSIONS .................. 102" x 69" x 75"H
EQUIPPED WITH:
HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED
ELECTROMECHANICALLY ACTUATED FEED OF SADDLE
AC SERVO VERTICAL DRIVE
PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC
INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM 0.00005"
T0 0.002" IN SURFACE OR PLUNGE MODES OF OPERATION.… FULLY
AUTOMATIC GRINDING CYCLE INCLUDING RAPID ADVANCE OF
GRINDING WHEELHEAD, 0 T0 7 SPARKOUT PASSES, AND RETRACTION
OF WHEELHEAD TO A PRE-SET DISTANCE AT THE COMPLETION OF
THE CYCLE.
TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS
WITH HIGH ACCURACY STEEL ROLLERS
PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING
GUIDE WAYS
FINE (MICRO) FEEDS GRADUATED TO .00005" FOR VERTICAL…
CROSS FEEDS
15-3/4" X″1-1/2" KANETSU…"CROSS POLE"
ELECTRO-MAGNETIC CHUCK WITH A PENDANT MOUNTED
POTENTIOMETER FOR VARIABLE HOLDING POWER AND A
SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION
OF WORK PIECE.
COOLANT SYSTEM w/PAPER FILTRATION
"SONY" 1-AXIS DIGITAL READOUT

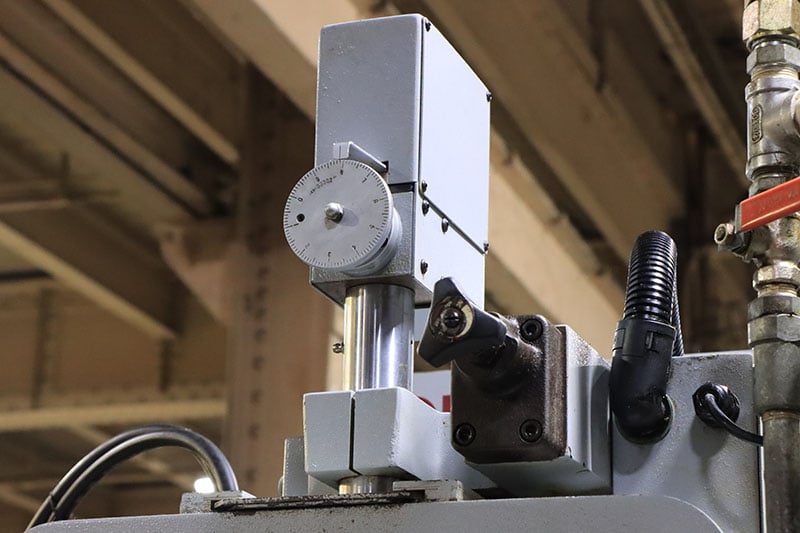

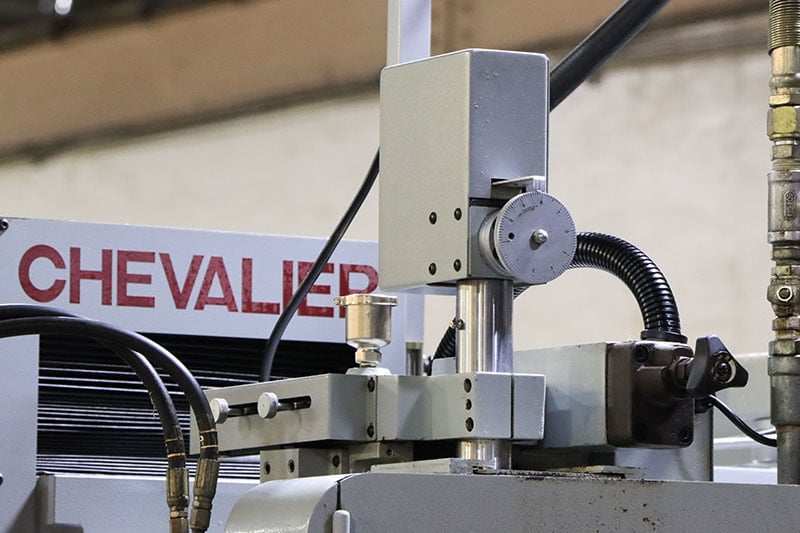

POWER…"OVER-THE-WHEEL" DRESSER, .00025" GRADUATION
EXTERNAL HYDRAULIC PUMP AND TANK
5 HP″/60/230-460 VOLT DRIVE SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR″/60/230 VOLTS
LINK TO VIDEO: https://youtu.be/tAt0ih7pZDc?si=RtJVza6L-kXVdIGr
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION… APPEARANCE - ORIGINAL PAINT… **
