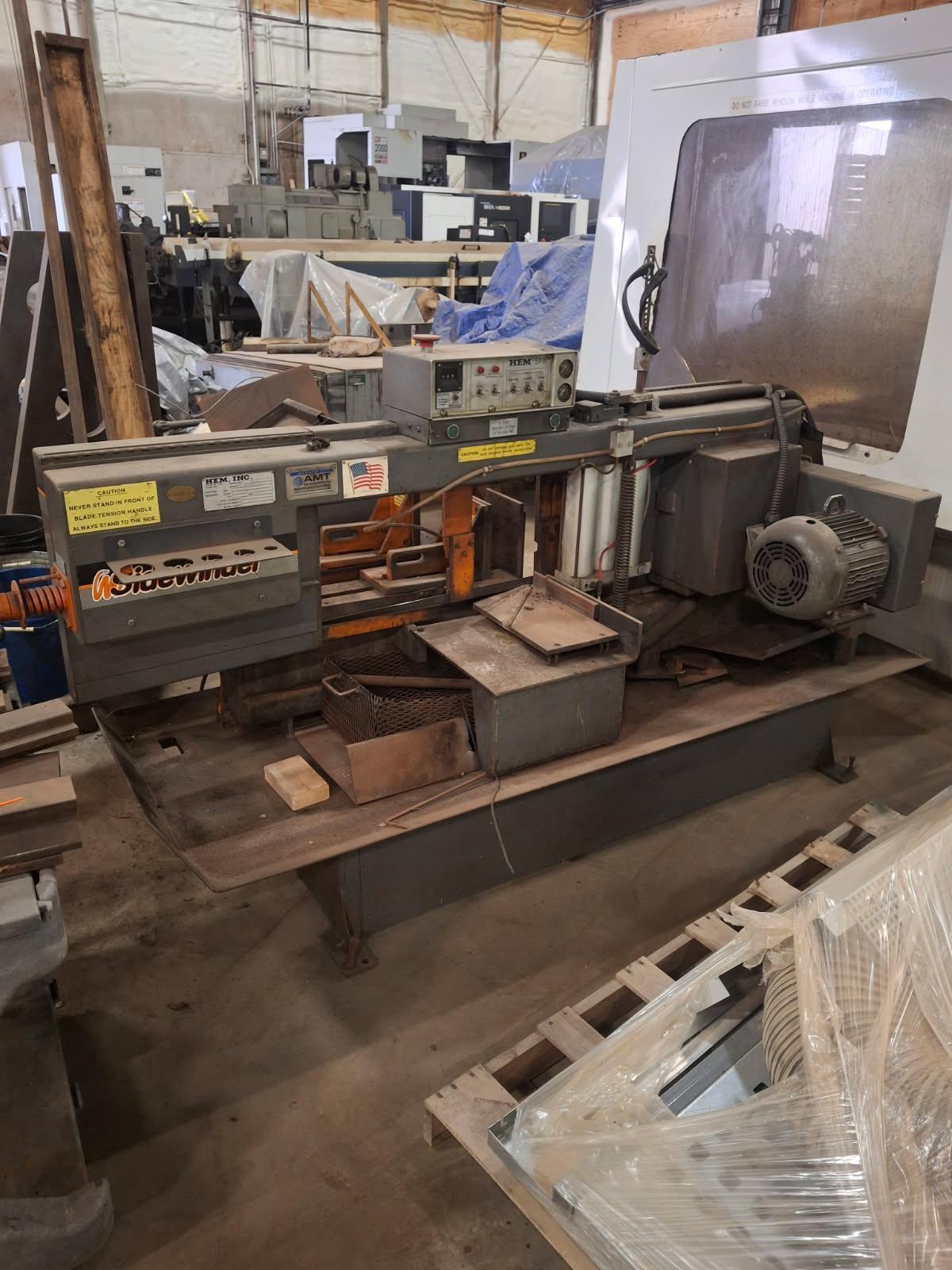

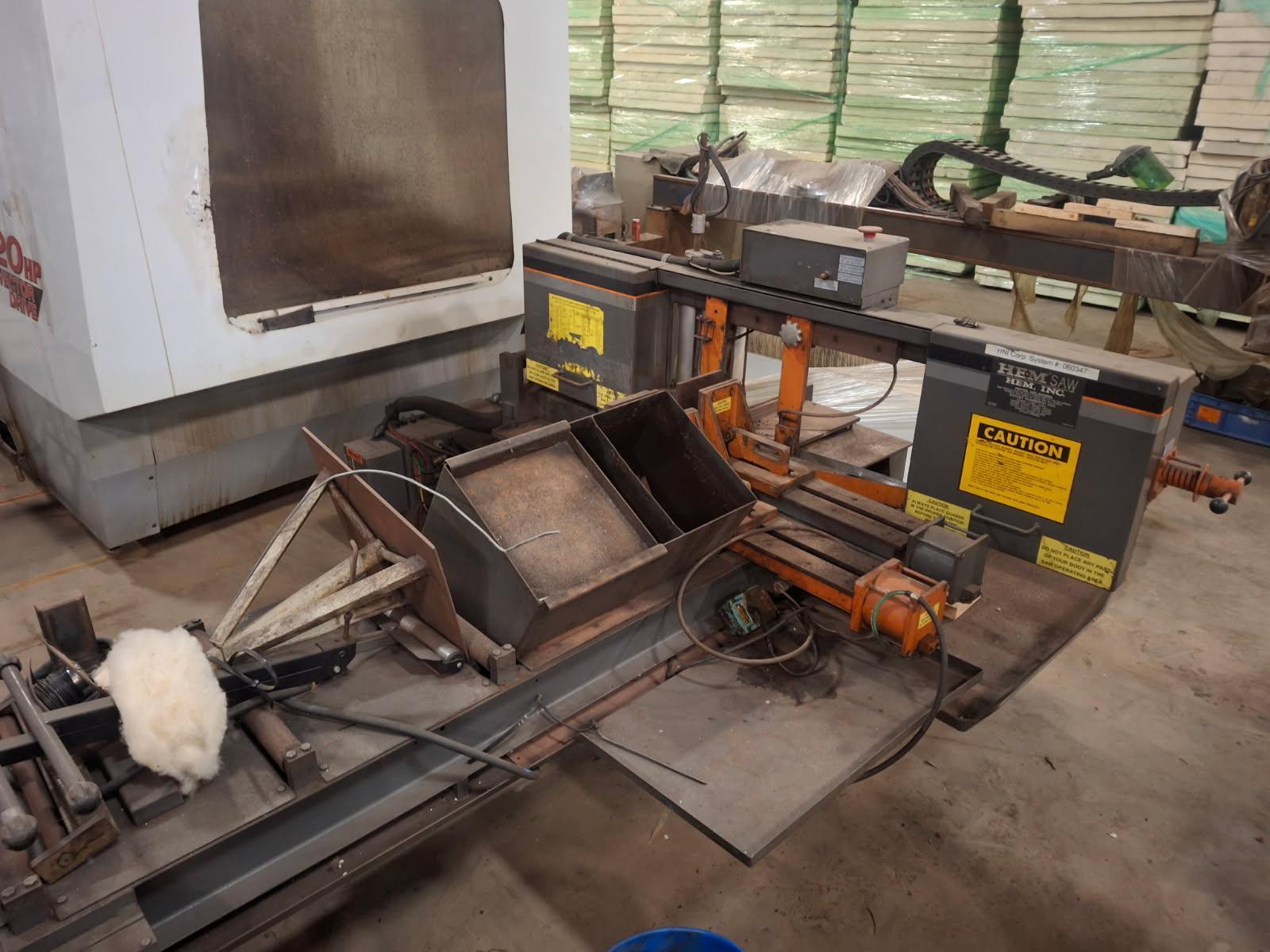

16" x 12-3/4" Hemsaw #SidewinderAuto, High Speed Production Bandsaw, 1" x 13' 6" x 0.035" blade, 3 HP, 220/440 V., ball bearing TFC, 60-300 SFPM,

SPECIFICATIONS:
SAW: PIVOT STYLE/HI SPEED/HEAVY-DUTY PRODUCTION BANDSAW. 16 in EXIT SUPPORT
SAW CAPACITY: 12-3/4 in H X 16 in W @ 90 DEGREES, 10 in H X 10 in W @ 45 DEGREES
BLADE SIZE: 1 in X 13 ft6 in X .035 in THK.
BLADE DRIVE: 3 HP, 220/440V AC, 3 PHASE, 1800 RPM, BALL BEARING TFC.
BLADE SPEED: INFINITELY VARIABLE SPEED DRIVE 60 - 300 SFPM.
COOLANT SYSTEM: TOTALLY BUILT-IN COOLANT SYSTEM, WITH HIGH PRESSURE 4 GPM SEALED COOLANT PUMP, 1/60 HP, COOLANT IS DISPENSED THROUGH BOTH GUIDE ARMS ON EITHER SIDE OF THE CUT, AS WELL AS THROUGH A FLEX-TUBE NOZZLE TO FLOOD THE CENTER OF THE CUT.
AIR REQUIREMENTS: 85 PSI, EQUIPPED WITH AIR FILTER AND LUBRICATOR.
OPERATOR CONTROL: CONTROL CONSOLE IS LOCATED ON TOP OF THE SAW ARM FOR OPERATOR CONVENIENCE. SAW MAY BE OPERATED IN SEMI-AUTOMATIC MODE OR FULLY AUTOMATIC MODE.
CUTTING PRESSURE: ADJUSTABLE CUTTING PRESSURE 0-800 LBS.
FEED RATE: ADJUSTABLE 0-3 INCHES/SECOND.
CLAMPING PRESSURE: ADJUSTABLE 0-1,700 LBS.
BLADE GUIDE SYSTEM: SIDE AND BACK GUIDES ARE FLAT CARBIDE INSERTS.
POWERED BRUSH: POWERED BRUSH DRIVEN BY AN ASSEMBLY MOUNTED ON THE DRIVE WHEEL REMOVES CHIPS FROM THE BLADE.
AUTOMATIC SHUT-OFF: SAW WILL AUTOMATICALLY SHUT OFF IF THE BLADE BREAKS, OR WHEN THE AUTOMATIC FEED SYSTEM IS OUT OF STOCK, OR WHEN THE PRE-DETERMINED NUMBER OF PIECES HAVE BEEN CUT.
SAFETY GUARDS: MACHINE IS EQUIPPED WITH BLADE GUARDS AND AWARENESS BARRIERS FOR SAFETY PURPOSES.
HOLD DOWN FIXTURES: TWO EACH HOLD DOWN FIXTURES THAT MOUNT ONE ON THE MAIN VISE AND ONE ON THE SHUTTLE VISE FOR USE WHEN CUTTING MORE THAN ONE PIECE AT A TIME.
AUTOMATIC BARFEED: AUTOMATIC SHUTTLE VISE FEED SYSTEM (0 - 24 in SINGLE STROKE) WITH ADDITIONAL ROLLERS 6 ft LONG TABLE WITH LOAD CAPACITY OF 3,500 LBS.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
