Description

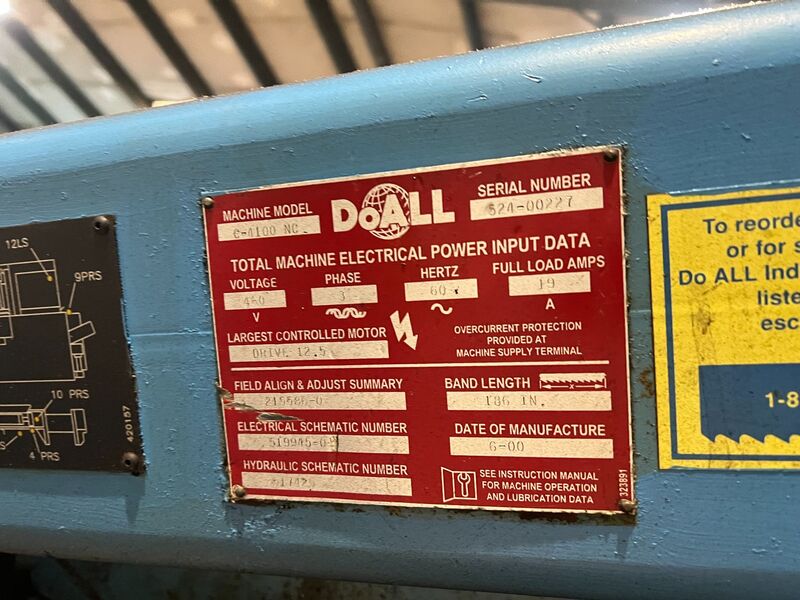

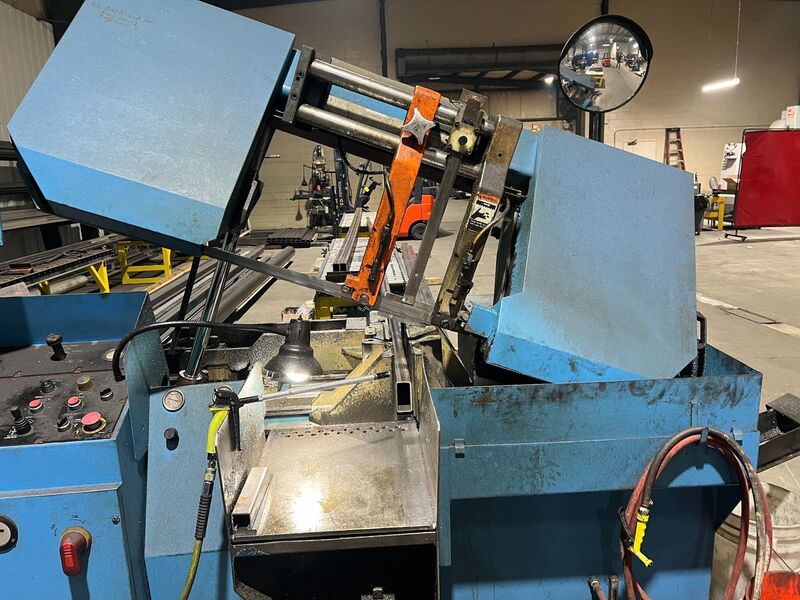

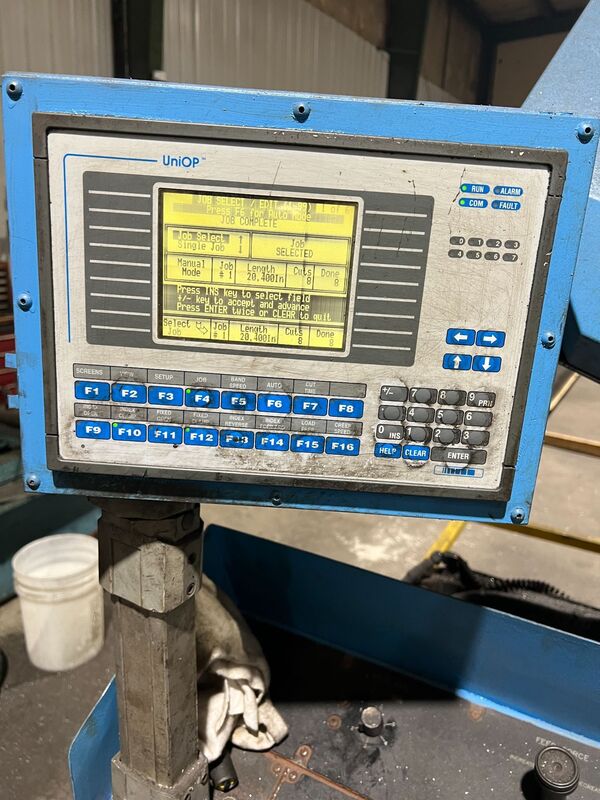

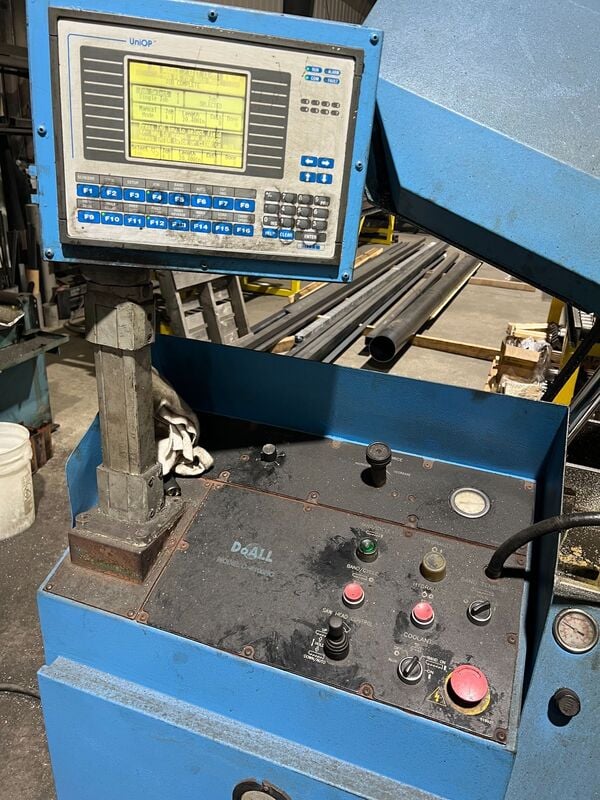

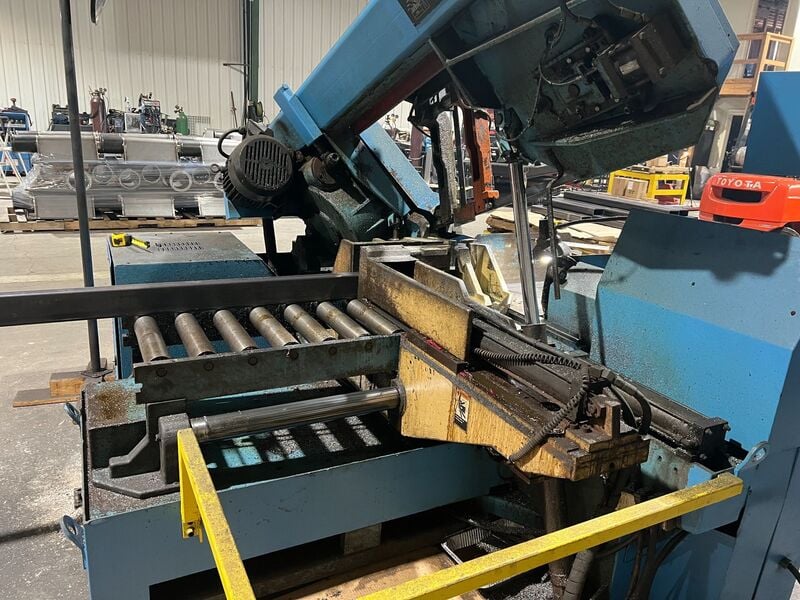

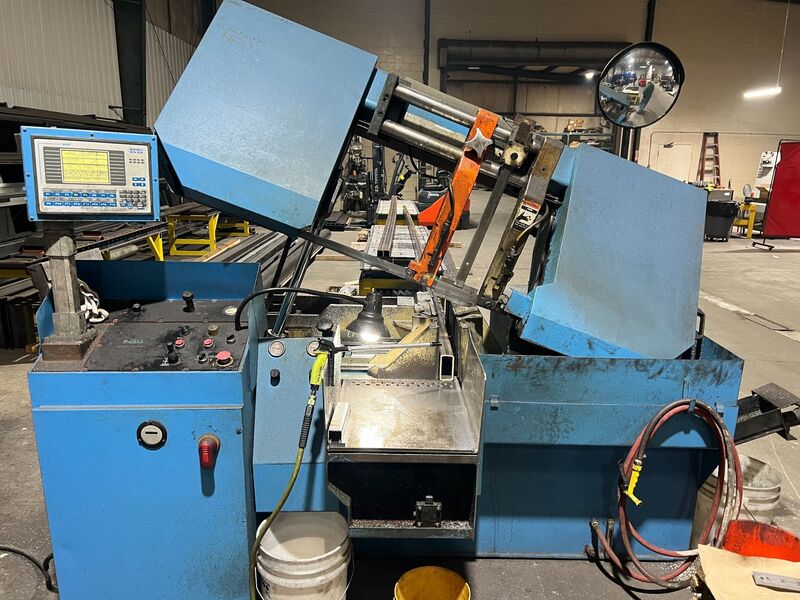

16" x 14" DOALL "C-4100NC" HEAVY-DUTY PROGRAMMABLE HIGH-PRODUCTION HORIZONTAL BAND SAW - UNIOP Programmable Control - Multiple Indexing - Automatic Hydraulic Stock Feed 16" x 14" DOALL HEAVY-DUTY PROGRAMMABLE HIGH-PRODUCTION AUTOMATIC HORIZONTAL BAND SAW Serial No. 524-00227, Model C-4100NC EQUIPPED WITH: UNIOP Programmable Control Multiple Indexing Automatic Hydraulic Stock-Feed Table Hydraulic Stock-Feeding and Clamping Vises Hydraulic Band Saw Up-Feed & Down-Feed Automatic Hydraulic Band Tension Built-in Coolant System w/Powered Chip Auger CATALOG SPECIFICATIONS: Maximum Capacity, Round Stock 16" Maximum Capacity, Square Stock 14" Maximum Capacity, Rectangular Stock 16"W x 14"H Minimum Capacity, Round 1/2" Single Length Index 24" Multiple Length Index 999" Minimum Length Index 1/4" Band Length 186" Band Width 1.25" Band Speeds, Variable 40 to 360 FPM Band Carrier Wheels, Diameter 21" Band Motor, Horsepower 10 HP Hydraulic Motor, Horsepower 2 HP Overall Height 7'4" Weight, Approximately 6800 LBS F.O.B. OUR WAREHOUSE
Introducing the 2004 DoALL C-4100 NC, a heavy-duty 16" programmable horizontal bandsaw designed for precision and efficiency in your industrial operations. Powered by a robust 10.00 HP motor and requiring a 460V three-phase connection, this bandsaw is engineered to handle the most demanding cutting tasks. The ...more
Main Drive Motor 10 HP. Single Automatic Index Length 24" (Max). Horizontal Band Saws. Hydraulic Drive Motor 2 HP. Round Capacity 16". Blade Speed 40 to 360 FPM. Variable Speed 105 - 275 fpm. Rectangular Capacity 16" x 14"..
Doal HEAVY DUTY 16" Capacity programmable Horizontal Bandsaw, With Variable vise pressure, Programmable blade speed, checked out and ready to run, like Amada, Behringer, HEM, Hyd-Mech, Kasto, Doall Fully automatic 16" Bandsaw with programmable control, 1.5" Blade, Hyd. blade tension, Like Marvel, Amada, HEM, Hyd-Mech ...more
