For Sale by Oz Machine USA Llc
Description

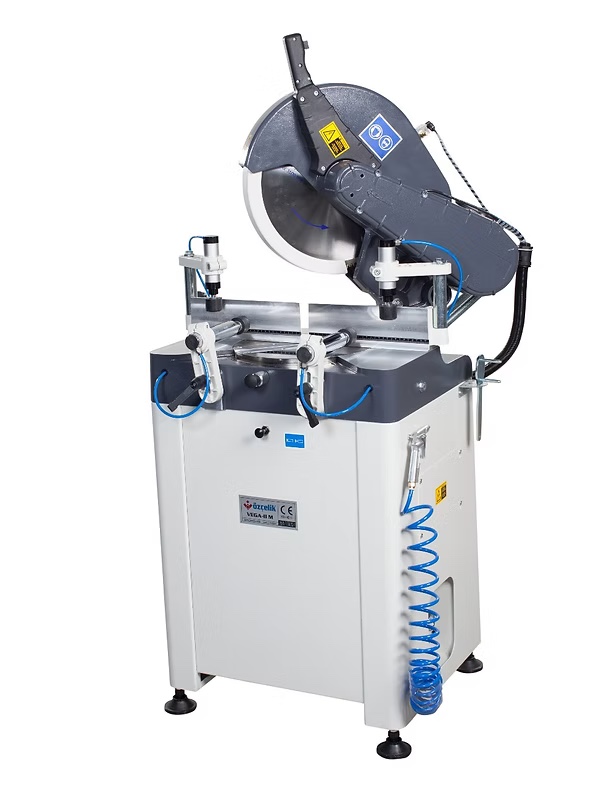

VEGA II M
Manual Cutting Machine Ø16”
Used for cutting processes of aluminum, vinyl/PVC, and wooden profiles.
Features
Manual cutting machine with Ø16” / 400 mm saw blade
Manual cutting process with handle
Safe cutting with double spring system and saw cover

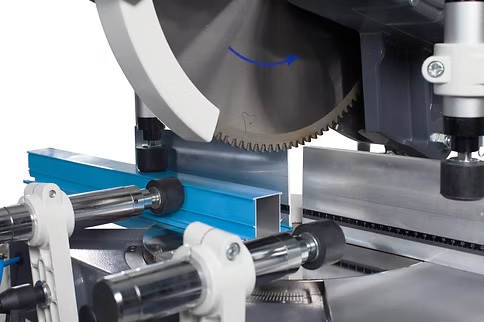

Pneumatic vertical and horizontal clamps
Cast core with impact resistance
Cutting speed adjustment based on the profile
Cutting at any desired angle between -45° and +45°
Compact design for profile cutting applications
Standard Equipment
Ø16” / 400 mm saw blade
Cooling system
Saw cover
Pneumatic vertical clamps
Pneumatic horizontal clamps
Optional Equipment
Conveyor
Single-phase system
Technical Specifications
Saw blade diameter: Ø16” / 400 mm
Motor power: 2 HP / 1.5 kW
Saw blade speed: 3,000 rpm
Electrical supply: 220 V / 60 Hz / 3-phase
Current: 8 A
Saw blade bore diameter: 1 1/4”
Saw blade thickness: 3/16”
Air pressure: 6–8 bar
Air consumption: 7 gal/min
Machine dimensions: 28” x 32” x 59”
Machine weight: 223 lbs
Inquire Further with Oz Machine USA Llc!
Buyers Who Viewed This Listing Also Viewed …
16" Oz Machine #Gemini-II-A, double head miter saw, hydro-pneumatic cutter, touch screen control, electronic length adjustment, horizontal and vertical clamping, NEW 2026
16" Wegoma #SD-31, Double Miter Saw, 2.2 kW, 440 V, 2001

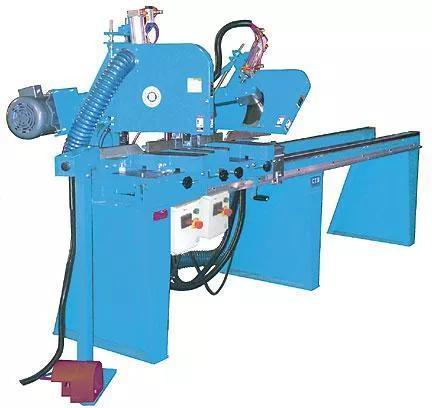

16" CTD #CDM60, Compound Double End Miter Saw, 2800 RPM, dual 3 HP, 4" x 10-1/2" capacity, 1" arbor
