For Sale by Oz Machine USA Llc

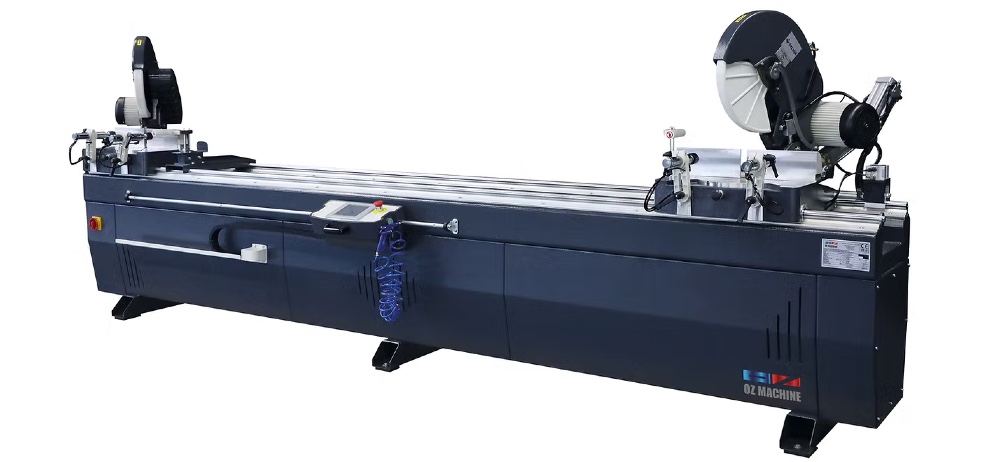

Description
Used for cutting processes of aluminum, vinyl/PVC, and wooden profiles in various angles and thicknesses.
Features
Semi-automatic double head cutting process
Hydro-pneumatic cutting feed adjustment
Electro-controlled X axis positioning
Moving head positioning control with linear scale
X axis positioning speed: 590”/min — 15,000 mm/min
Cutting at any desired angle between -45° and +45°
Maximum internal rotation angle: 45°
Maximum external rotation angle: -45°
Minimum cutting length with double head at 90° & 45°: 24” — 610 mm
Maximum cutting length with double head at 90° & 45°: 137” — 3,480 mm
Maximum profile loading length: 177” — 4,500 mm
Saw blade stroke speed adjustment based on the profile

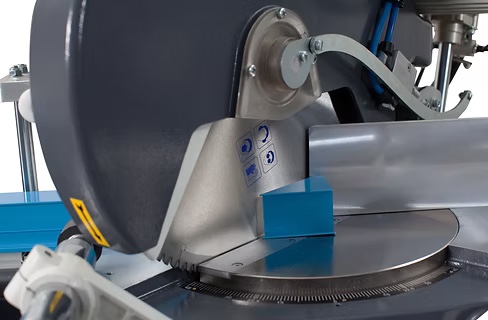

Secure cutting with saw blade protection covers

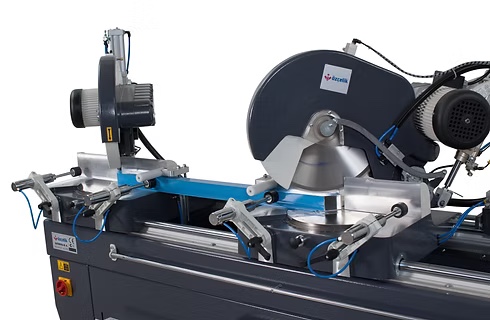

Pneumatic vertical and horizontal clamps
Manual intermediate profile support
Smart touchscreen control panel
Cooling lubrication system
Standard Equipment
Two 16” / 400 mm carbide saw blades
Hydro-pneumatic cutting feed adjustment
Electro control X axis
Cooling lubrication system
Horizontal pneumatic clamps
Vertical pneumatic clamps
Manual intermediate profile support
Smart touchscreen control panel
Optional Equipment
Vacuum cleaner for chips
Technical Specifications
Saw blade diameter: 16” / 400 mm
Saw blade motor power: 1.5 kW
Air pressure: 6–8 bar
Air consumption: 13 L/min
Machine dimensions: 165” x 41” x 60”
Machine weight: 1,382 lbs
Inquire Further with Oz Machine USA Llc!
