Click to zoom in
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Maximum shearing capacity, mild steel | 16 gauge / 1,6mm |
| Maximum shearing capacity, stainless steel | 20 gauge / 1,0mm |
| Maximum cutting length | 52-1/4 in. / 1327mm |
| Back gauge range | 30 in. / 762mm |
| Front gauge range | 37 in. / 940 mm |
| Floor space, gauges in position | 60 x 80 in. / 1524 x 2032 mm |
| Overall dimensions, less gauges, LxWxH | 61 x 25 x 42 in. / 1550 x 915 x 1067 mm |
| Strokes per minute, full length | 45 |
| Maximum operating pressure | 1450 psi / 98.6 atmos. |
| Motor | 230/460v, 3phase, 60Hz, 1745 RPM, 2 hp |
| Shipping weight | 1350 pounds |
| Export Crate | 56 cu. ft. / 1.59 cu. m |
Equipped With
Equipped With
FEATURES:

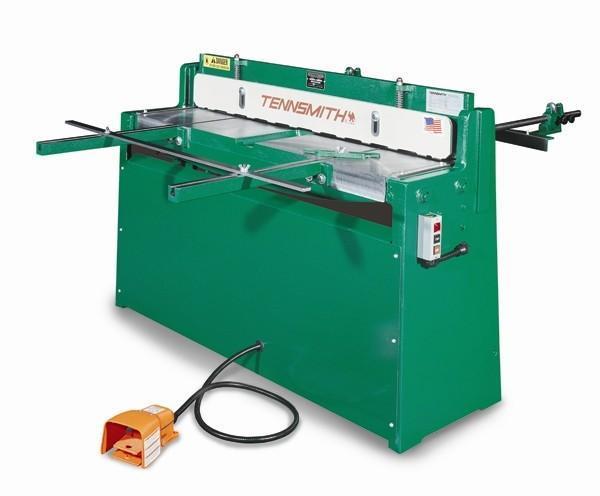

Model 52H power shear combine all the features of our foot shears with the advantage and convenience hydraulic operation. The hydraulic shear utilizes heavy-duty, industrial grade cylinders, which provide up to 45 strokes per minute in capacity materials. The 52H hydraulic unit features a solenoid actuated valve, 2-hp electric motor, self contained tank with thermometer, pressure gauge; check valve, and industrial quality cylinders. The motor is protected by a magnetic starter. Other electrical safety features include a low voltage on/off switch; step-down transformer with low voltage circuit fuse; fully enclosed electrical box; and insulated reinforced conduit for all wiring. The 52H comes standard with: high carbon high chromium tool steel blades, 30-inch rear operated back-gauge, two front support arms, front gauging bar, and neoprene inserted hold-down bar, and protractor. The hydraulic unit comes with a complete tank of Shell TELLUS PLUS 46 hydraulic oil.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
OPTIONAL FEATURES:
Model 52H wired for 220 volt, Single phase, 60 Hz electrics: $9,200.00
Squaring Arm, Four Foot with Inlaid Scale: $950.00
52 Inch High Carbon High Chromium Steel, per set: $1,065.00
DELIVERY:
SUBJECT TO STOCK
Model 52H power shear combine all the features of our foot shears with the advantage and convenience hydraulic operation. The hydraulic shear utilizes heavy-duty, industrial grade cylinders, which provide up to 45 strokes per minute in capacity materials. The 52H hydraulic unit features a solenoid actuated valve, 2-hp electric motor, self contained tank with thermometer, pressure gauge; check valve, and industrial quality cylinders. The motor is protected by a magnetic starter. Other electrical safety features include a low voltage on/off switch; step-down transformer with low voltage circuit fuse; fully enclosed electrical box; and insulated reinforced conduit for all wiring. The 52H comes standard with: high carbon high chromium tool steel blades, 30-inch rear operated back-gauge, two front support arms, front gauging bar, and neoprene inserted hold-down bar, and protractor. The hydraulic unit comes with a complete tank of Shell TELLUS PLUS 46 hydraulic oil.NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
OPTIONAL FEATURES:
Model 52H wired for 220 volt, Single phase, 60 Hz electrics: $9,200.00
Squaring Arm, Four Foot with Inlaid Scale: $950.00
52 Inch High Carbon High Chromium Steel, per set: $1,065.00
DELIVERY:
SUBJECT TO STOCK
Get Your Price from Smith Machinery Co!
