16 gauge x 3' Tennesmith #A3616, pneumatic shear, 3 HP, 40 SPM, #105163

$4,000 USD

Request Formal Quote

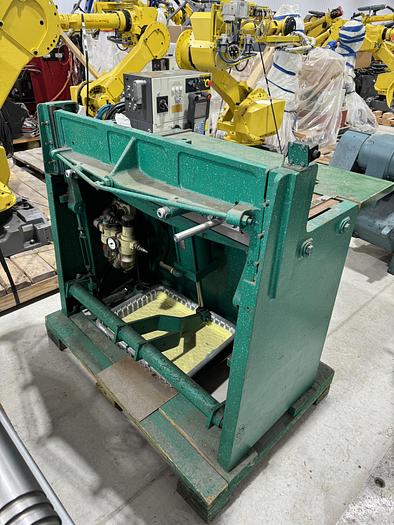

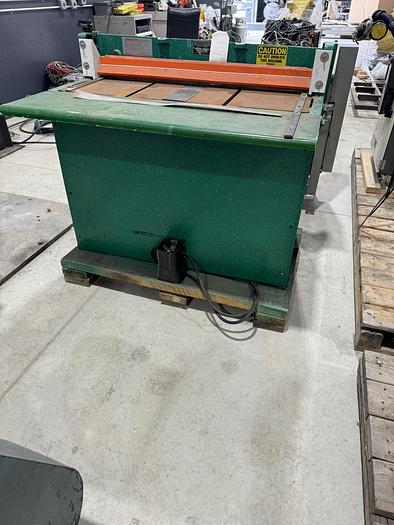

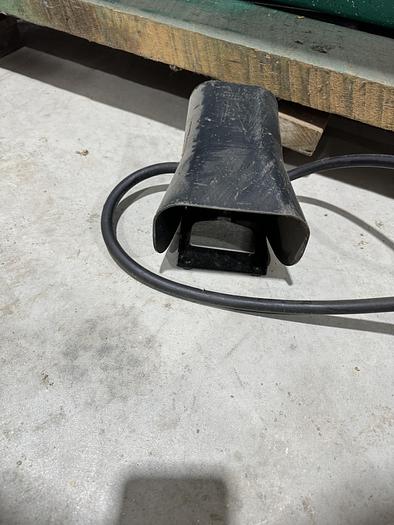

This used Tennesmith A3616 (nan) is a shear available from R.A.B. Industries. It is equipped with the nan controller.1- USED TENNESMITH MODEL A3616 PNEUMATIC 16 GAUGE X 36" SHEARSTOCK NUMBER: 105163===================================================SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMEDRELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICEAND TO VERIFICATION BY BUYER:3 x 16ga New Tennsmith Pneumatic Shear Model 36A power shears are a productive addition to any shop. The air shears utilize heavy-duty, tie rod-type pneumatic cylinders, which provide up to 40 strokes per minute in capacity materials.A foot-operated air valve control, pressure regulator, air gauge, oiler/condenser cups and neoprene, padded holddown feet are standard features. We recommend a maximum air supply of 75 psi for operating these shears at rated capacity. Where air supply pressures exceed 75 psi, an in-line regulator is helpful to provide pressure control.3 x 16ga Tennsmith Pneumatic Shear Model 36A Specifications:Max. Shearing Capacity (Mild Steel) 16 gauge 1.6mmMax. Shearing Capacity (Stainless Steel) 20 gauge 1.0mmMaximum Cutting Length 37 in 940 mmBack Gauge Range 30 in 762 mmFront Gauge Range 37 in 940 mmStrokes Per Minute Full Length 40Maximum Operating Pressure 75 psi. 1 atmos.Air Consumption Per Stroke 1.1 cu ft. 0.031 cu.m.Motor 3 HP 230/460V 3 Phase 60 Hz, 1745 rpmDimension 46-1/2 x 24 x 42 in.
