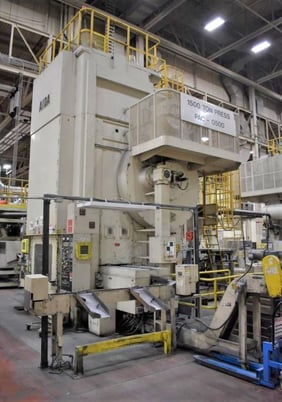

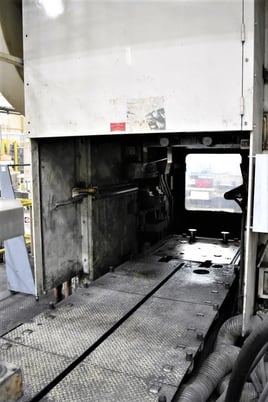

1500 Ton, Aida #PK-1500, knuck joint press, 9.84" stroke, 44.09" DL, 1.18" adj., 25-40 SPM, 1998

1500 Ton Aida PK-1500 Knuckle Joint Press, 9.84" STR, 44.09" SH, 1.18" ADJ, 47.24"x 47.24" Bed, 25-40 SPM Variable

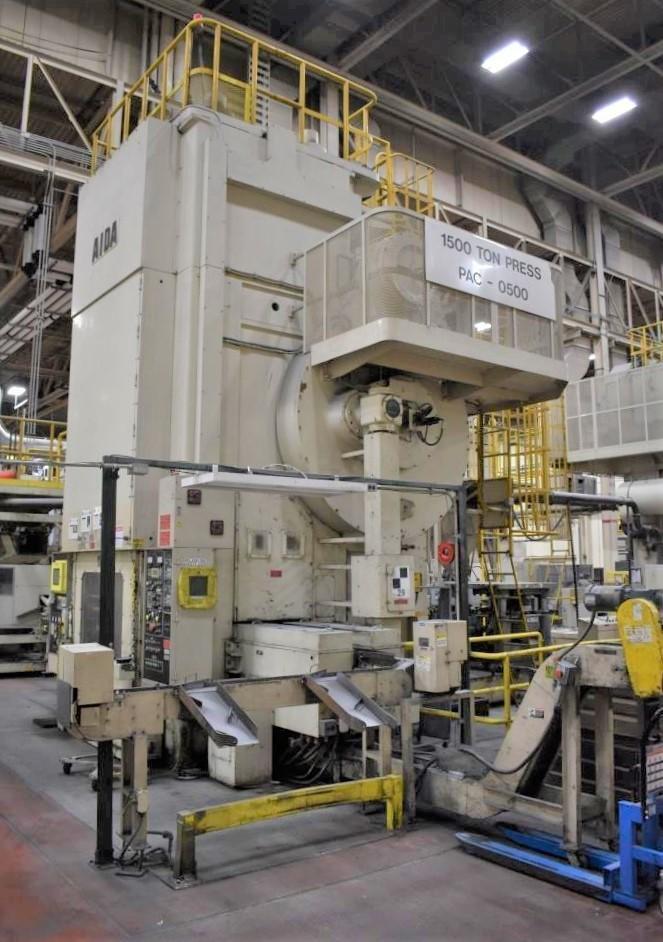

1500 TON AIDA PK-1500 KNUCKLE JOINT PRESS
YEAR: 1998
PRELIMINARY SPECIFICATIONS
Ton Force..................................1500
Slide Stroke...............................9.84”
Die Height.................................44.09”
Slide Adjustment...........................1.18”
Bolster Area...............................47.24”LR x 47.24”FB
Slide Area.................................47.24”LR x 47.24”FB
Speed (Variable)...........................25-40 SPM
Bolster Thickness..........................11.81”
Main Motor.................................125 DC
Volts......................................480
Hertz......................................60
Phases.....................................3
BED KNOCKOUT SPECIFICATIONS
Mechanical Type
Short Ton Force Capacity...................82
Stroke.....................................2.95”
Knockout Pin Diameter......................3.15”
2nd Stage (Center) Installed Stage
Attachment Of Pin Lifter In Common With Bed Knockout Pin
TRANSFER FEEDER SPECIFICATIONS
Transfer Device............................2-Axis
Feed Stroke................................7.87”
Clamping Stroke Per One Side...............3.93”
At Clamp Inside Distance Of Feed Bars......9.84”
27.99” From Bolster Height Of Feed Bar Bottom Face
DIMENSIONS
Height Above The Floor.....................292”
Weight.....................................218,600 LBS
Specifications are deemed accurate, however, subject to verification or prior sale.
