Manufacturer: Aida
Model: PK-1500
Year: 1998
Ton: 1500
Stroke: 9.84
Stock # 6824
Price: $375,000 USD
1 / 8
Click to zoom in
1 / 8
For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Location: Pomona, CA
Contact Dan Wheeler
Phone Number: 909...> Show Phone Number 909-348-5610
Let the seller know you found their listing on Surplus Record!
$375,000 USD
Description

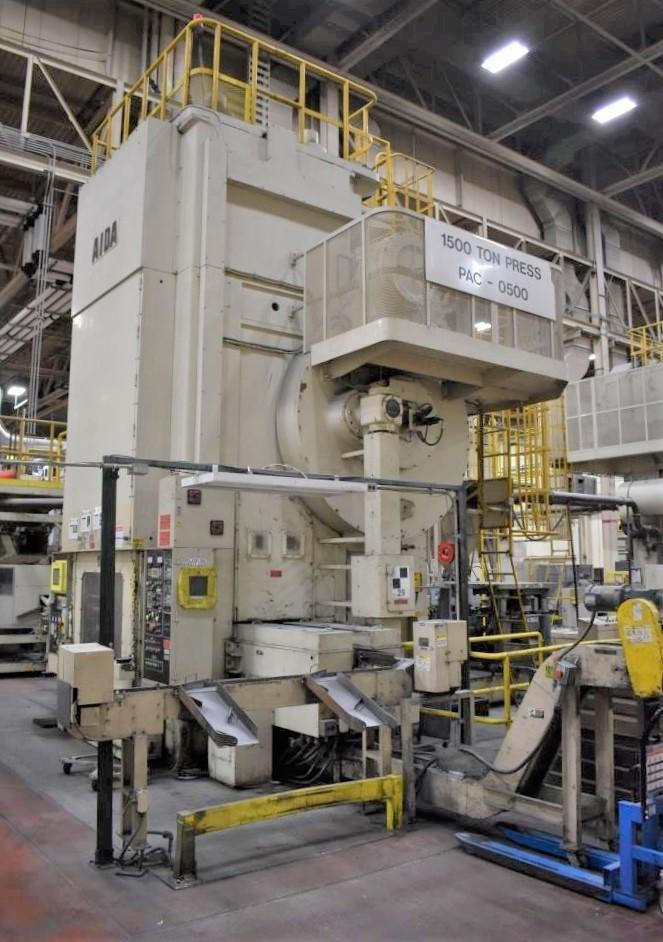

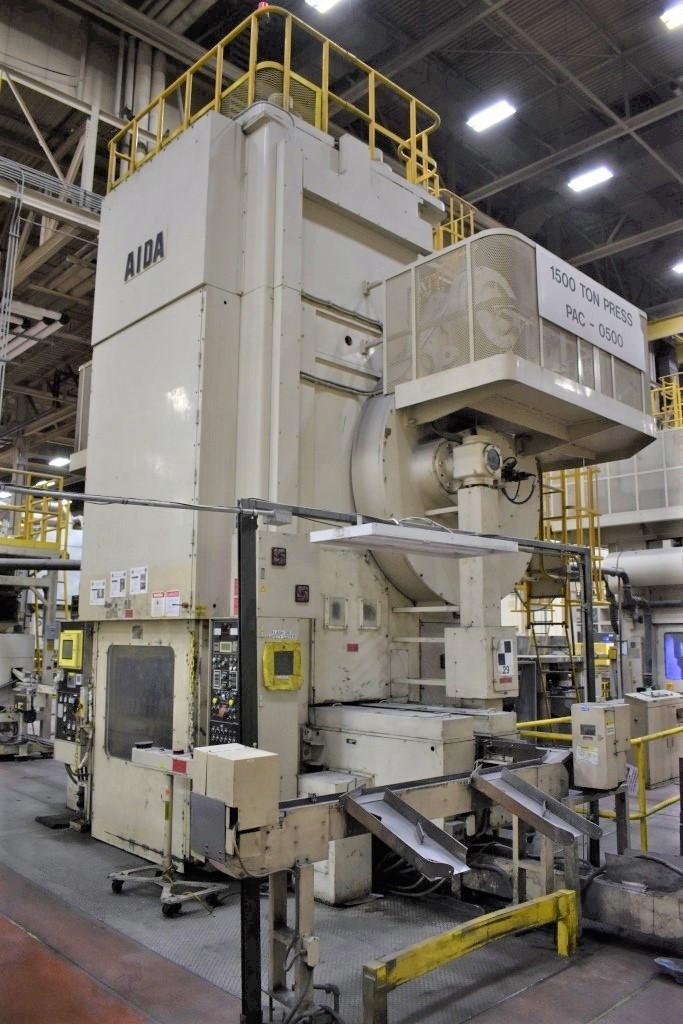

1998 Aida PK-1500 Single Point Knuckle Joint Press #6824
SPECIFICATIONS:
Capacity: 1500-Ton (14700-kN)
Stroke: 9.84" (250mm)
Die Height: 44.1" (1120mm)
Slide Adjustment: 0.79" (20mm)
Speed: 25-40 SPM
Bolster Area: 47.2" L-R x 47.2" F-B (1200mm x 1200mm)
Bolster Thickness: 11.8 (300mm)
Slide Face Area: 47.2" L-R x 47.2" F-B (1200mm x 1200mm)
Floor to Top of Bolster: 15.75 (400mm)
Transfer Feed Stroke: 7.87 (200mm)
Transfer Clamping Stroke: 3.93 (100mm)
Bed Knockout (Mechanical): 735 kN (75-Ton)
Stroke: 75mm
Diameter of Knockout Pin: 80mm
Installed 2nd Stage (Center)
Capacity of Pin Lifter: 9.8 kN (1-Ton) In Common w/ Bed Knockout Pin
Overall Dimensions (From GA Drawing): 216 L-R x 216 F-B x 372 H (Including Pit)
Height Above Floor Line: 292
Pit Depth: 80
Total Weight: 260,000-Lbs (130-Ton)
EQUIPPED WITH:
2-Axis Transfer System

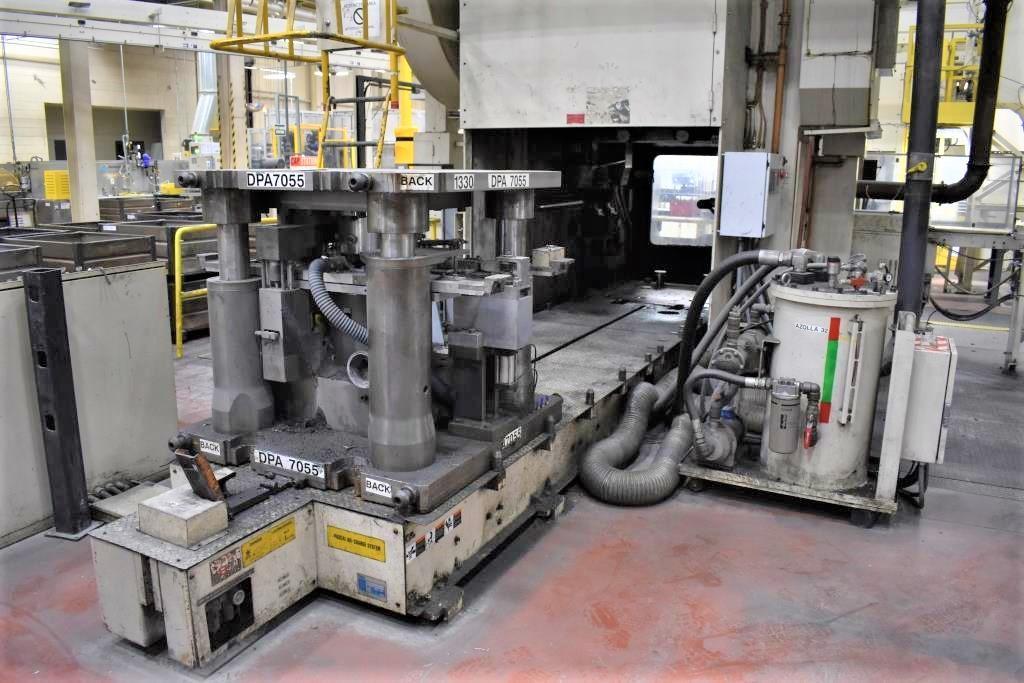

Die Change System

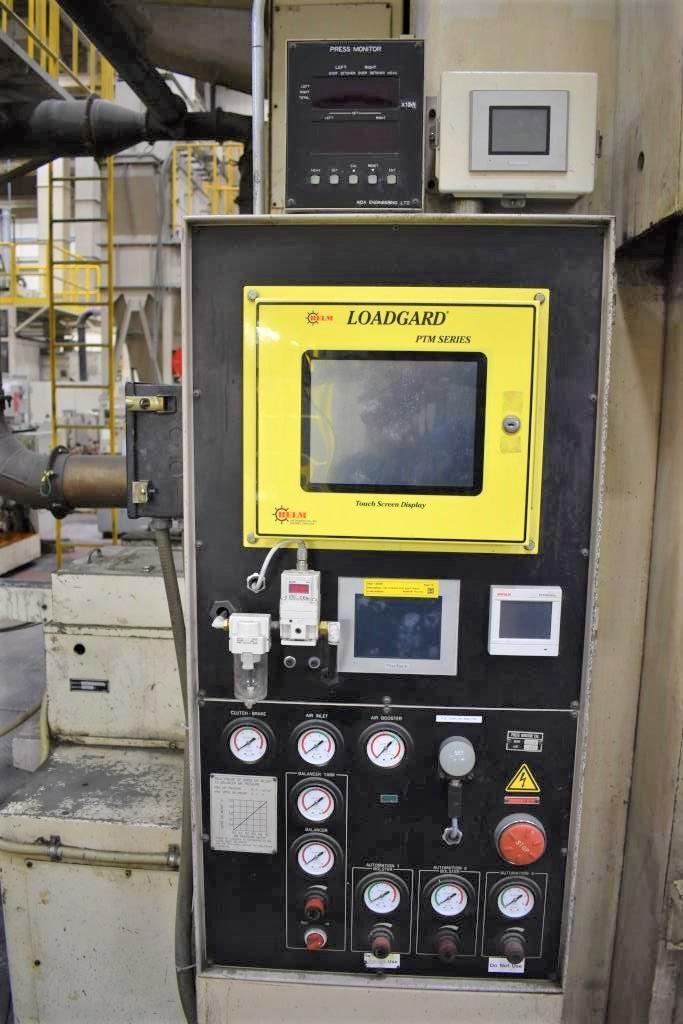

Helm Loadgard PTM Series Control

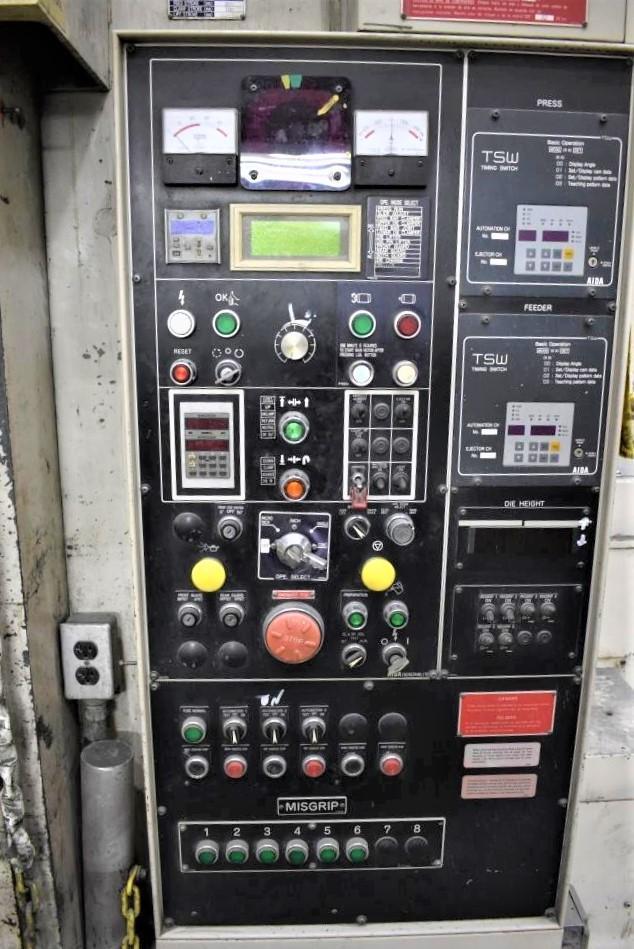

(2) TSW (Aida) Programmable Timing Switches
Digital Die Height Indicator
125-HP DC Main Motor - 3PH/60Hz/480V
SPECIFICATIONS:
Capacity: 1500-Ton (14700-kN)
Stroke: 9.84" (250mm)
Die Height: 44.1" (1120mm)
Slide Adjustment: 0.79" (20mm)
Speed: 25-40 SPM
Bolster Area: 47.2" L-R x 47.2" F-B (1200mm x 1200mm)
Bolster Thickness: 11.8 (300mm)
Slide Face Area: 47.2" L-R x 47.2" F-B (1200mm x 1200mm)
Floor to Top of Bolster: 15.75 (400mm)
Transfer Feed Stroke: 7.87 (200mm)
Transfer Clamping Stroke: 3.93 (100mm)
Bed Knockout (Mechanical): 735 kN (75-Ton)
Stroke: 75mm
Diameter of Knockout Pin: 80mm
Installed 2nd Stage (Center)
Capacity of Pin Lifter: 9.8 kN (1-Ton) In Common w/ Bed Knockout Pin
Overall Dimensions (From GA Drawing): 216 L-R x 216 F-B x 372 H (Including Pit)
Height Above Floor Line: 292
Pit Depth: 80
Total Weight: 260,000-Lbs (130-Ton)
EQUIPPED WITH:
2-Axis Transfer System
Die Change System
Helm Loadgard PTM Series Control
(2) TSW (Aida) Programmable Timing Switches
Digital Die Height Indicator
125-HP DC Main Motor - 3PH/60Hz/480V
Inquire Further with Wheeler Machinery Sales!
