For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

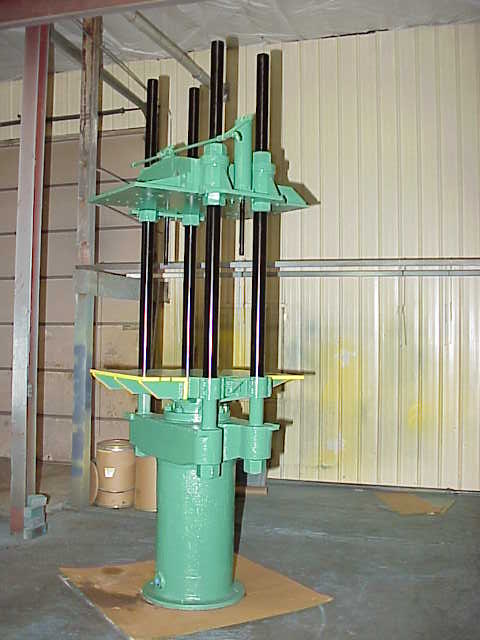

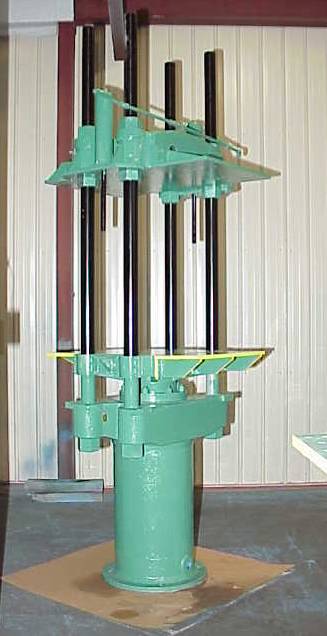

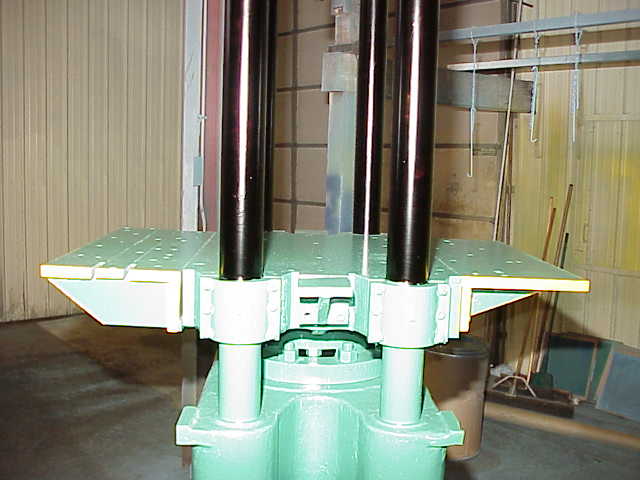

FRONT TO BACK DIMENSION INCLUDES TWO 12" REMOVABLE EXTENSIONS ON CROWN AND SLIDE. NOMINAL PLATEN SIZE WITHOUT EXTENSIONS IS 30 \u00bd" L to R X 24 \u00bd" F to B. DISTANCE BETWEEN POSTS: 31 \u00be" L to R X 10 \u00bd" F to B. POST DIAMETER 3 \u00bd". MAIN RAM: 12" DIAMETER, SINGLE ACTING, RATED AT 2700 PSI, 1 \u00bd" NPT PORTS, APPROX STROKE 36". ADJUSTABLE DAYLIGHT FROM 45" TO 71". FULLY GUIDED SLIDE WITH 5" BUSHINGS. TWO DOUBLE ACTING BREAK-AWAY CYLINDERS: 3 \u00bd" BORE, 1 \u00bc" ROD, APPROX 11" STROKE, \u00bd" NPT PORTS. OPERATOR HEIGHT 60 \u00bd". OVERALL DIMENSIONS: 48" L to R X 60" F to B X 145" TALL. APPROX WEIGHT: 15,000 LBS. SOME DRAWINGS. (ITEM #288)
Get Your Price from Icon Industries, Inc!
