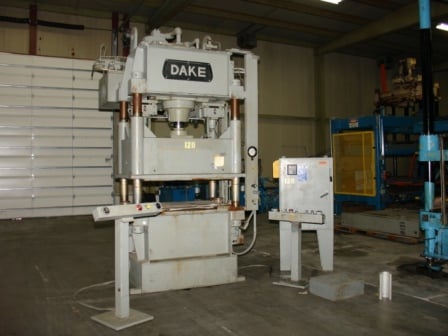

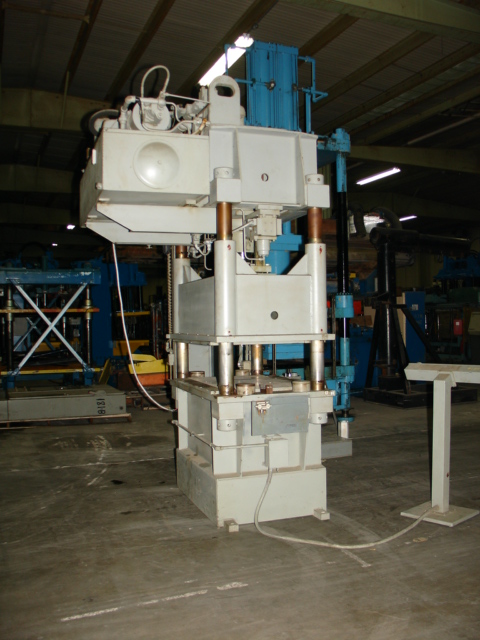

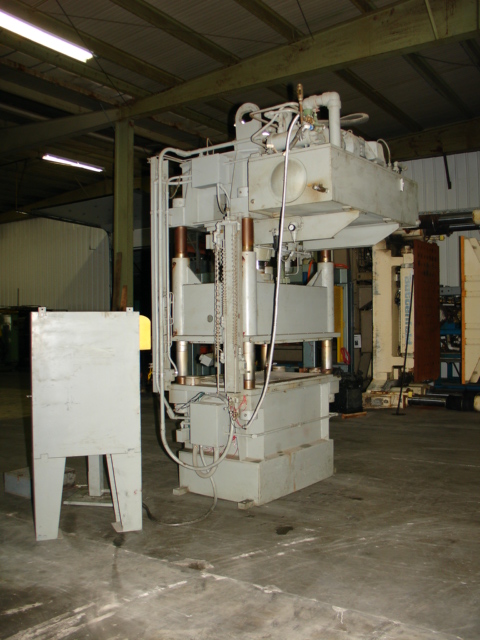

150 Ton, Dake, 48" x38", 4-post, down-act, 15" stroke, 15" daylight, 41" work hght, AB PLC, 30 HP, #2534

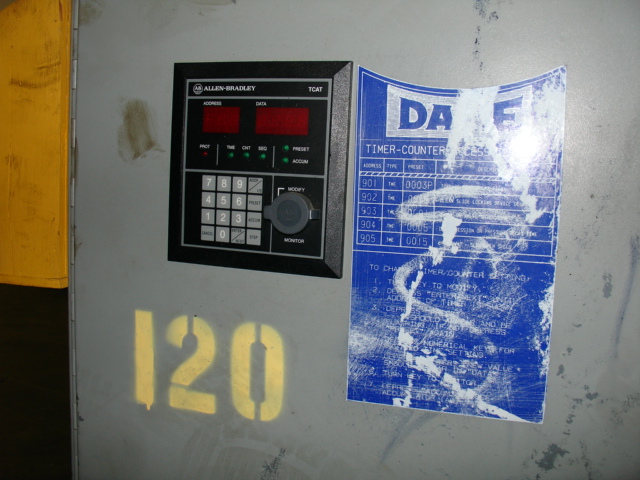

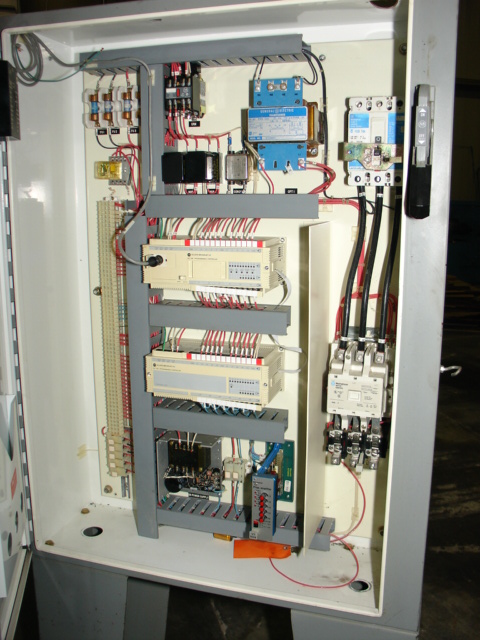

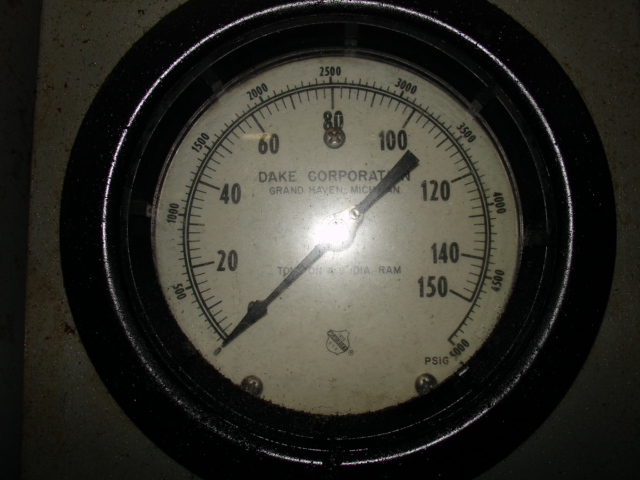

MODEL #27-843. SERIAL #186990. NEW IN 1988. APPROX 60" L TO R AND 25" F TO B BETWEEN THE POSTS. NOMINAL BED SIZE IS 48" X 38". 9" BORE CYLINDER WITH 6" ROD AND 15" STROKE. APPROX 15" DAYLIGHT. 48" X 38" X 1" PLATES MOUNTED TO SLIDE AND BED (17" DAYLIGHT IF REMOVED). 83 TON PULLBACK FORCE. 41" OPERATOR HEIGHT (WITH PLATE). FULLY GUIDED ON 4.5" DIAMETER POSTS WITH APPROX 30" BUSHINGS. TWO AIR-OPERATED SLIDE LOCKING DEVICES. FOUR OPTIONAL 5.5" DIAMETER STOP BLOCKS WITH SEVERAL SHIMS TO ASSURE PARALLEL SHUT HEIGHT (PRESS WAS BEING USED TO DIE-CUT FOAM). SELF-CONTAINED HYDRAULIC SYSTEM MOUNTED ON TOP/REAR OF OIL COOLER; GAUGE; REMOTE PRESSURE CONTROL; OPERATING AT APPROX 4750 PSI; APPROX SPEEDS: 205 IPM FAST CLOSE, 3-24 IPM PRESSING, 4-44 IPM BREAK-AWAY, 370 IPM FAST OPEN. ELECTRICAL CONTROL SYSTEM: ALLEN-BRADLEY SLC 100 PLC WITH SLC 100 EXPANSION UNIT AND T-CAT TERMINAL; REXROTH AMPLIFIER; TWO PALM BUTTON PEDESTALS (RIGHT AND LEFT): LEFT HAS TWO PALM BUTTONS, E-STOP AND OPEN BUTTON; RIGHT HAS TWO PALM BUTTONS, MOTOR START/STOP, SELECT SWITCH FOR RIGHT AND/OR LEFT PEDESTAL (BOTH KEYED), PRESSING AND BREAK-AWAY SPEED ADJUSTERS; RUN/JOG; OPEN AND E-STOP. DIMENSIONS OF FREE-STANDING PANEL IS APPROX 36" X 14" X 60" TALL. OVERALL DIMENSIONS OF PRESS IS APPROX 80" L TO R X 70" F TO B (WITH OVER-HANG) X 138" TALL (FOOTPRINT OF PRESS IS APPROX 63" X 38"). APPROX 18,000 LBS. ITEM #2534.
