Ton: 150.0
Stroke: 16.0
Daylight: 28.0
Stock # 1051
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Tom,Pete,Bob
616-22...> Show Seller's Phone Number 616-229-2957 Let the seller know you found their listing on Surplus Record!
Description

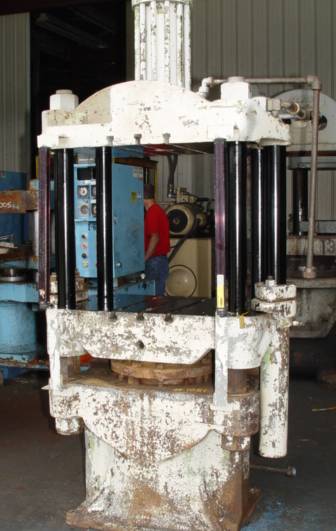

OVERALL PLATEN SIZE 42" L TO R X 24" F TO B. DISTANCE BETWEEN POSTS 28" L TO R X 13" F TO B. NOMINAL PLATEN SIZE 28" X 24". 3.25" DIAMETER POSTS. 28" DAYLIGHT. APPROX 16" STROKE. TWO 3.75" PUSH BACK CYLINDERS. MOVING BOLSTER FULLY GUIDED WITH 8.5" LONG BUSHINGS. 14" DIAMETER SINGLE-ACTING MAIN RAM WITH 1" NPT PORT. TOP TRANSFER CYLINDER: 6" BORE; 12" STROKE; 1.75" ROD WITH .75" NPT PORTS. OPERATOR HEIGHT: 39.5". TEE SLOTS IN CROWN AND MOVING BOLSTER. OVERALL DIMENSIONS: 53" L TO R X 36" F TO B X 96" TALL. APPROX WEIGHT 8,000 LBS. R2 C. ITEM # 1051.
Get Your Price from Icon Industries, Inc!
