For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Location: Pomona, CA
Contact Dan Wheeler
Phone Number: 909...> Show Phone Number 909-348-5610
Let the seller know you found their listing on Surplus Record!
$3,500 USD
Description

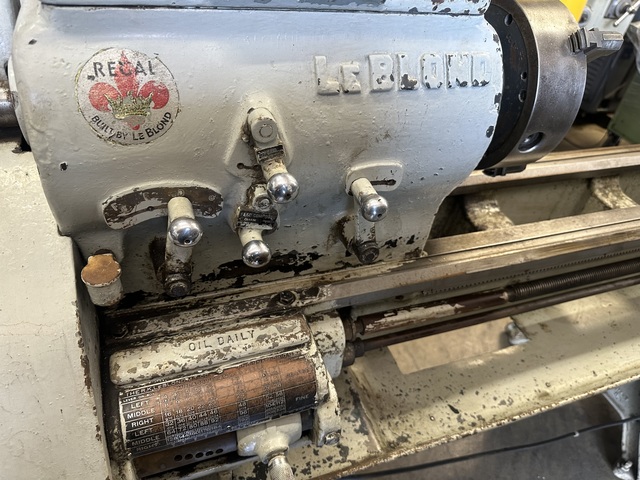

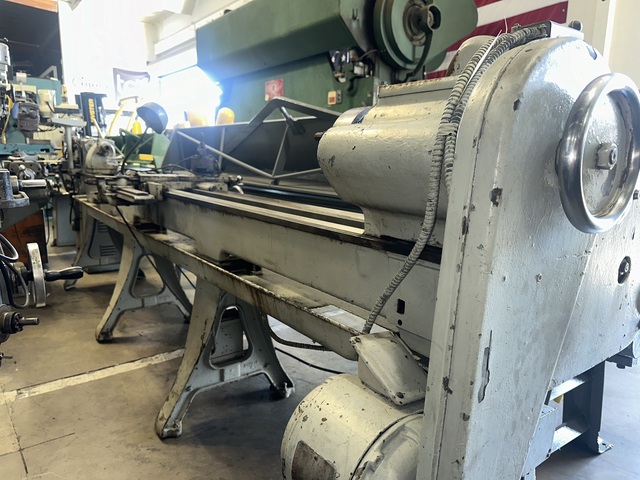

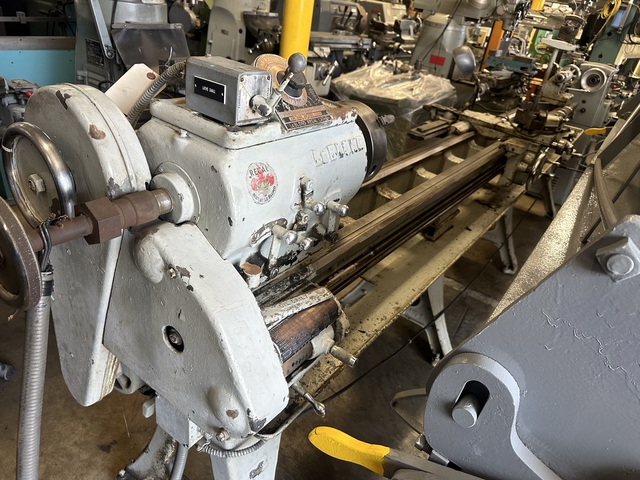

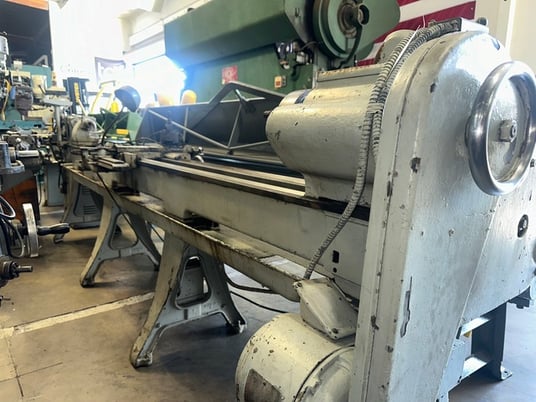

LeBlond Regal Engine Lathe - 15" x 116" #7194 #2
Overall Dimensions: 160" x 32" x 52" H 2500 lbs.
SPECIFICATIONS:
Swing Over Bed: 15"
Swing Over Cross Slide: 10"
Distance Between Centers: 116"
Spindle Speeds: 25 to 500 RPM (Variable)
Spindle Bore: 1"

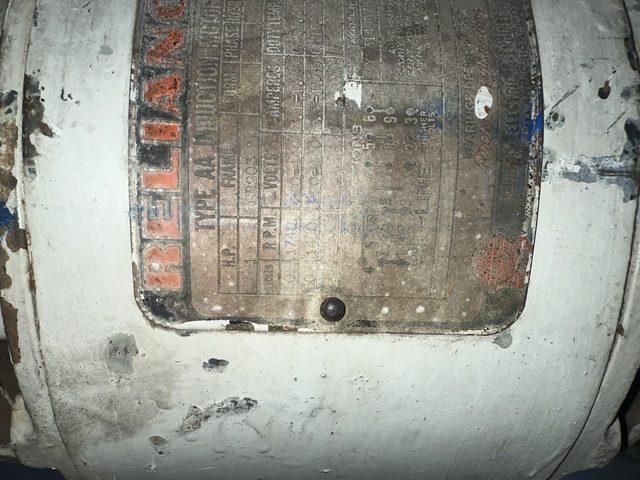

Main Motor: 5 HP
EQUIPPED WITH:

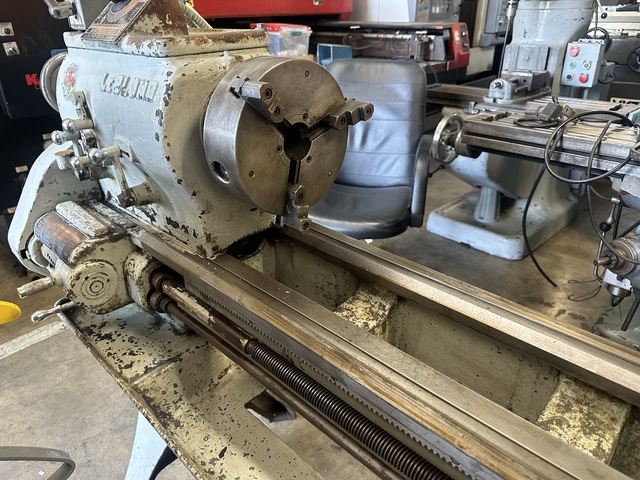

3-Jaw Chuck
Taper Attachment

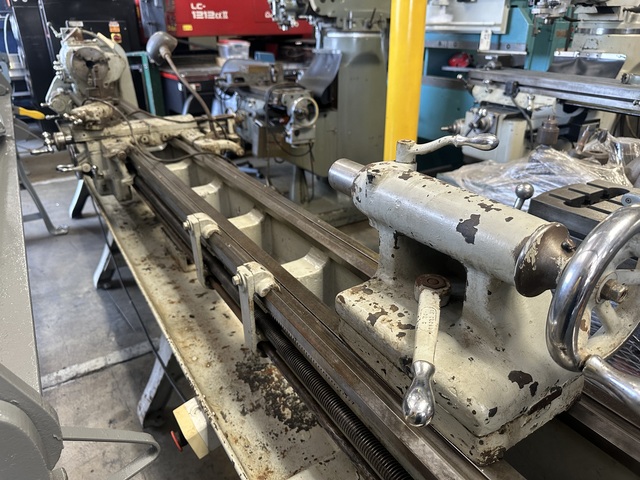

Tailstock
Overall Dimensions: 160" x 32" x 52" H 2500 lbs.
SPECIFICATIONS:
Swing Over Bed: 15"
Swing Over Cross Slide: 10"
Distance Between Centers: 116"
Spindle Speeds: 25 to 500 RPM (Variable)
Spindle Bore: 1"
Main Motor: 5 HP
EQUIPPED WITH:
3-Jaw Chuck
Taper Attachment
Tailstock
Inquire Further with Wheeler Machinery Sales!
