Description

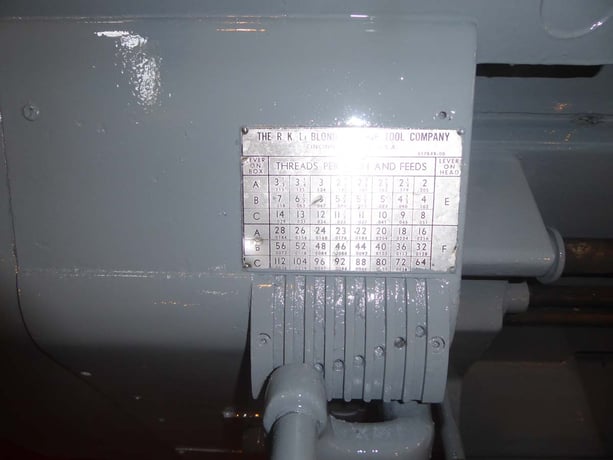

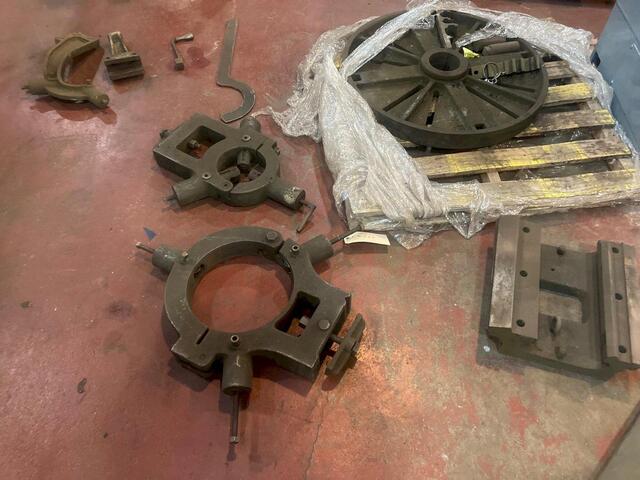

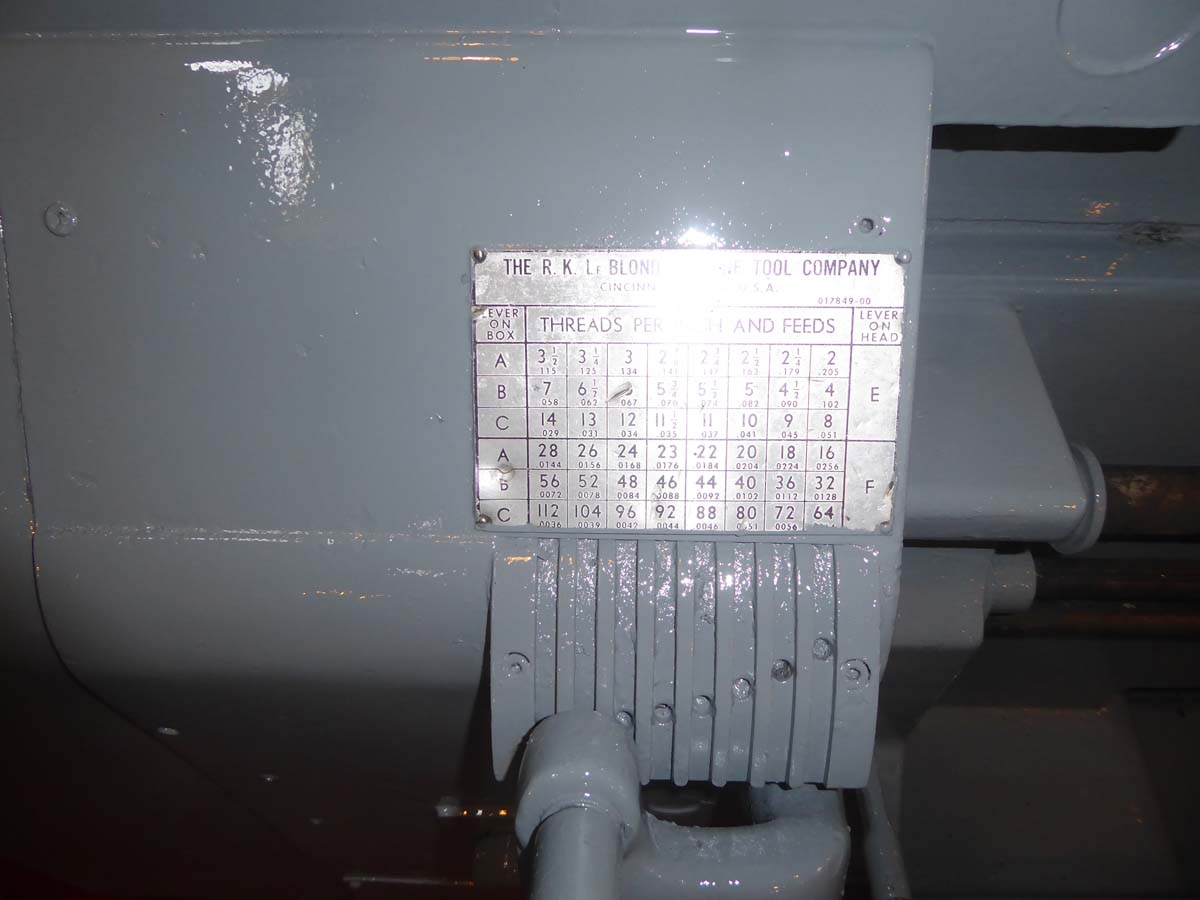

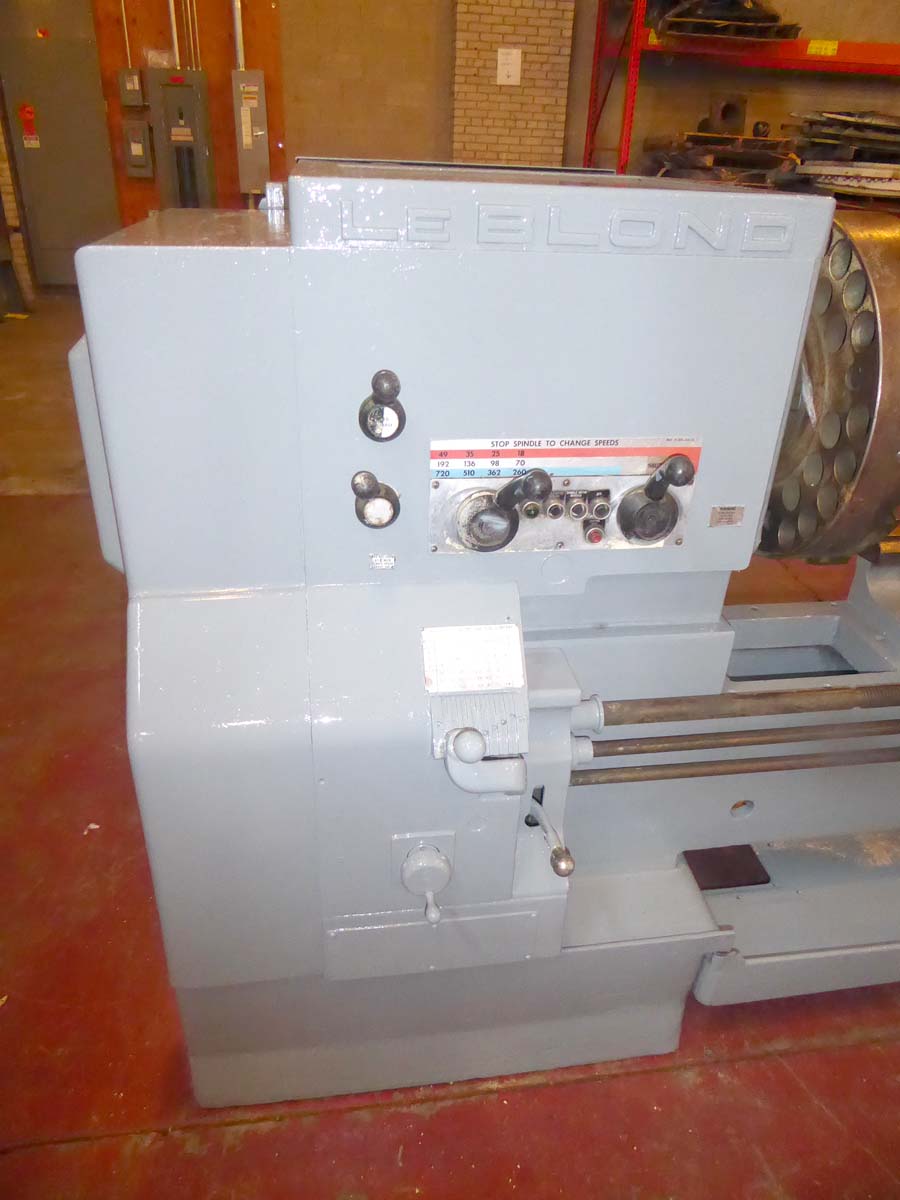

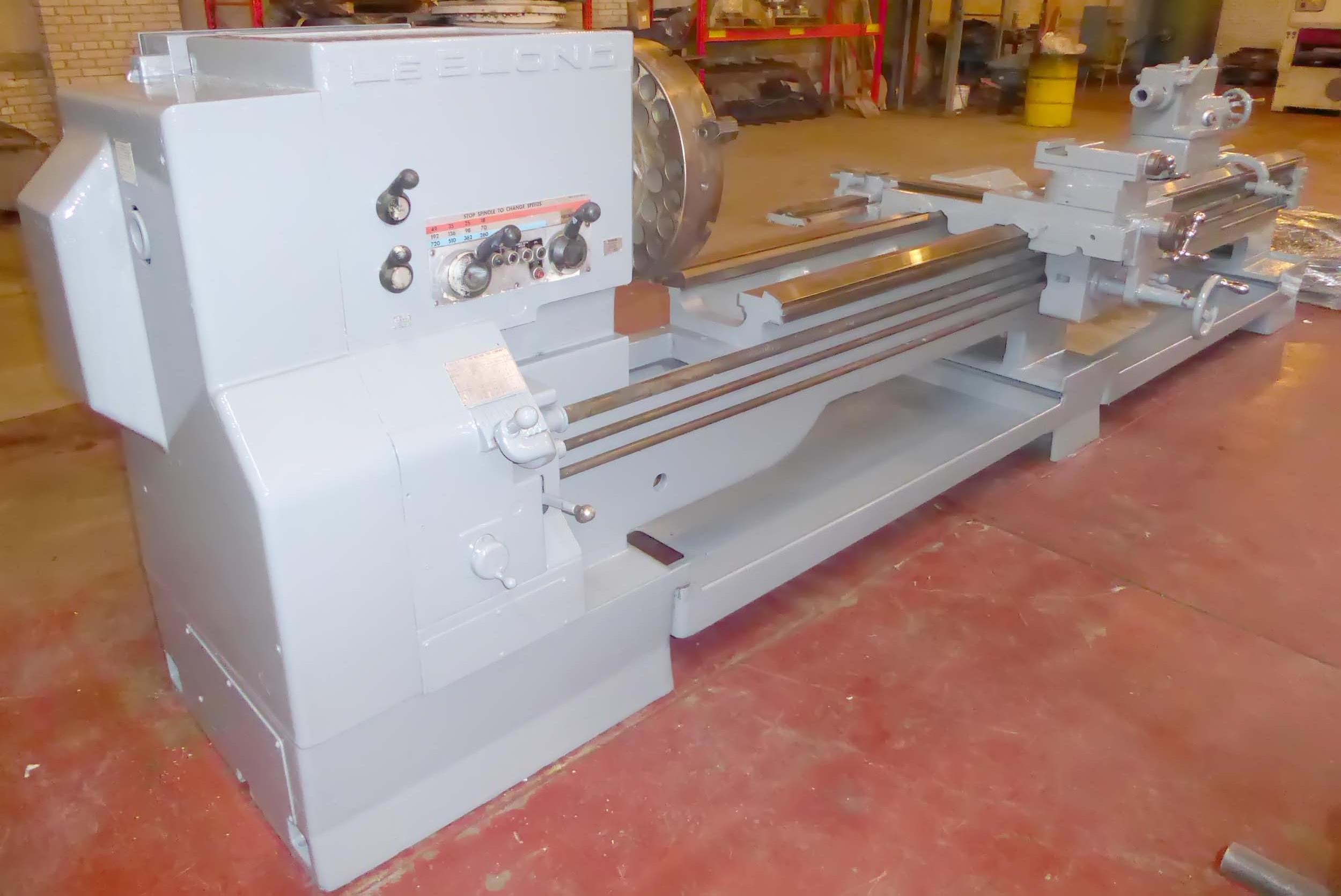

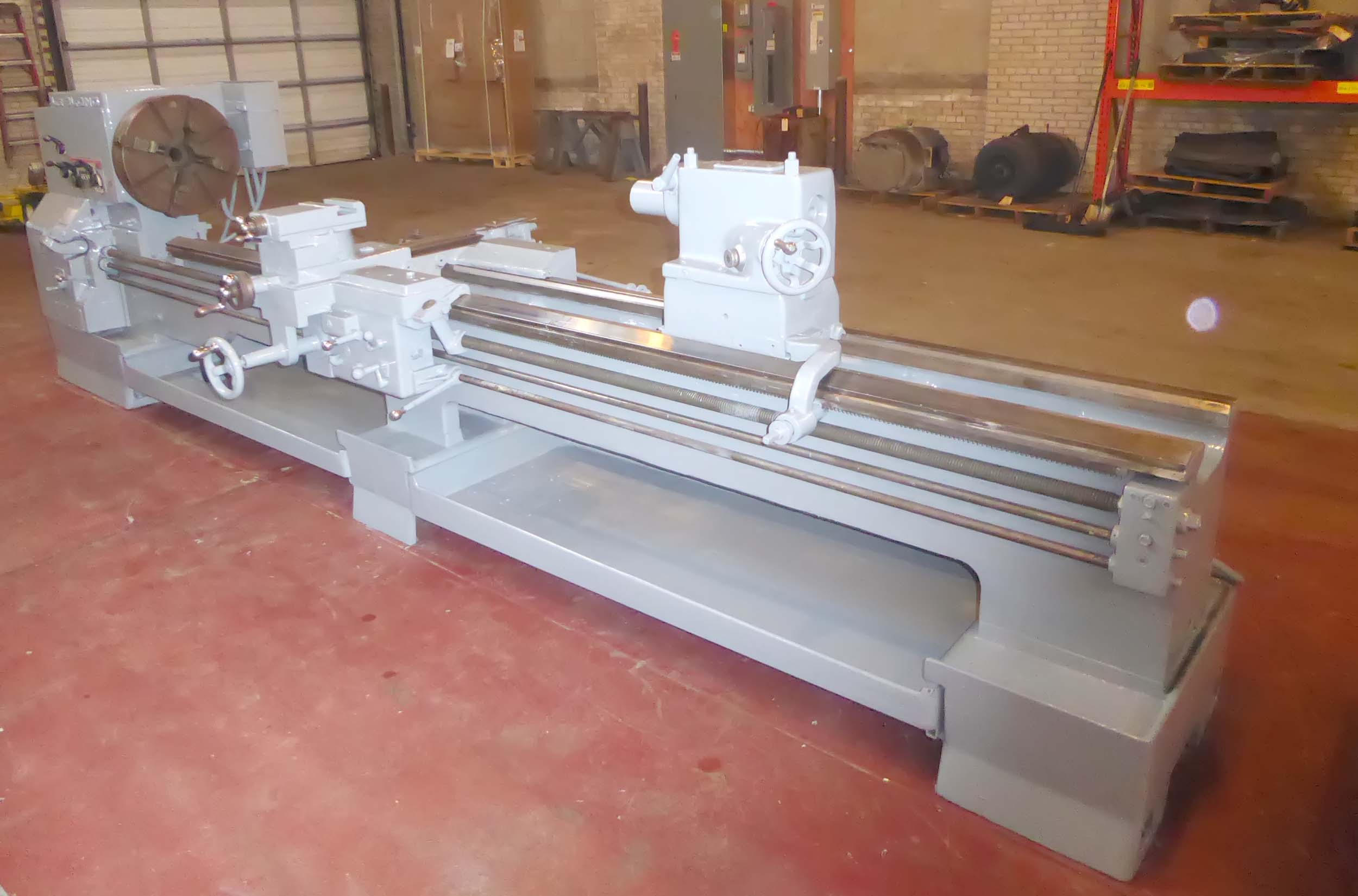

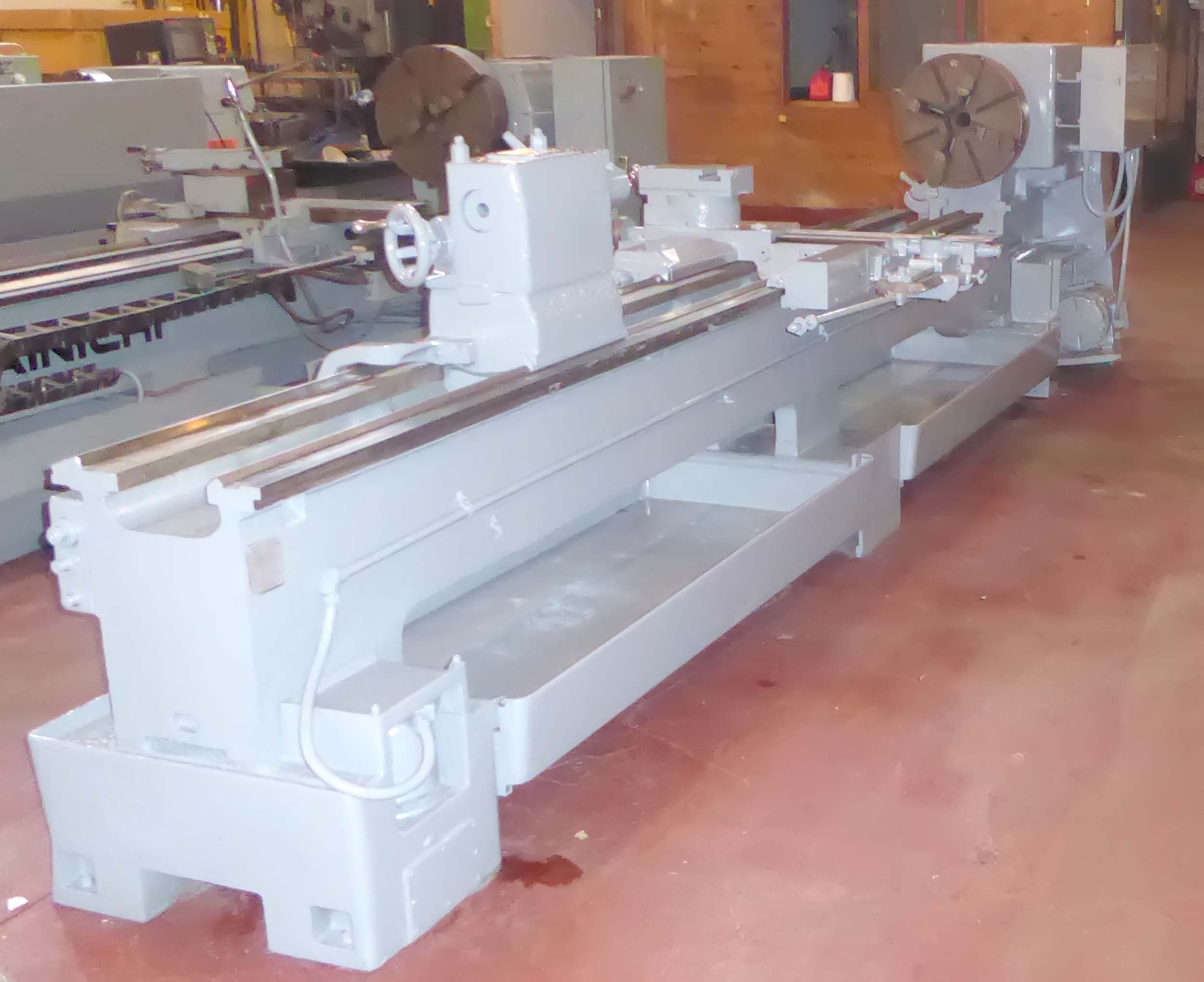

THE 1963 LEBLOND REGAL IS A HEAVY-DUTY ENGINE LATHE DESIGNED FOR PRECISION METALWORKING AND INDUSTRIAL MACHINING. THIS SPECIFIC MODEL FEATURES A 26 INCH SWING OVER THE BED AND CARRIAGE WINGS, WITH A 132 INCH DISTANCE BETWEEN CENTERS FOR HANDLING LARGE WORKPIECES. IT IS EQUIPPED WITH A REMOVABLE GAP, PROVIDING A 32 INCH SWING CAPACITY BY 9 INCHES. THE MACHINE IS POWERED BY A 480V, 3-PHASE ELECTRICAL SYSTEM AND FEATURES A SPINDLE WITH 12 SPEEDS RANGING FROM 18 TO 720 RPM. THE SPINDLE INCLUDES A 2 INCH THRU-HOLE AND A NO. 5 MORSE TAPER. TECHNICAL EQUIPMENT INCLUDES A TAPER ATTACHMENT, A THREADING DIAL WITH A RANGE OF 2 TO 112 TPI, AND A QUICK-CHANGE GEARBOX. FOR WORKHOLDING AND SUPPORT, THE LATHE IS OUTFITTED WITH A 21 INCH 4-JAW CHUCK, A 32 INCH FACE PLATE, AND TWO STEADY RESTS. BUILT WITH HARDENED AND GROUND REPLACEABLE STEEL BEDWAYS, THE UNIT INCLUDES A FULL-LENGTH COOLANT-CHIP PAN AND WEIGHS APPROXIMATELY 7,000 LBS.
