Sq.Ft.: 15
Pounds per Square Inch: 250
Stock # EX-298
Click to zoom in
For Sale by EcReCon Inc.
Surplus Record Dealer Since 2017
Location: Pedericktown, NJ
Contact Sales Dept.
Phone Number: 856...> Show Phone Number 856-299-4500
Let the seller know you found their listing on Surplus Record!
Description
Description:

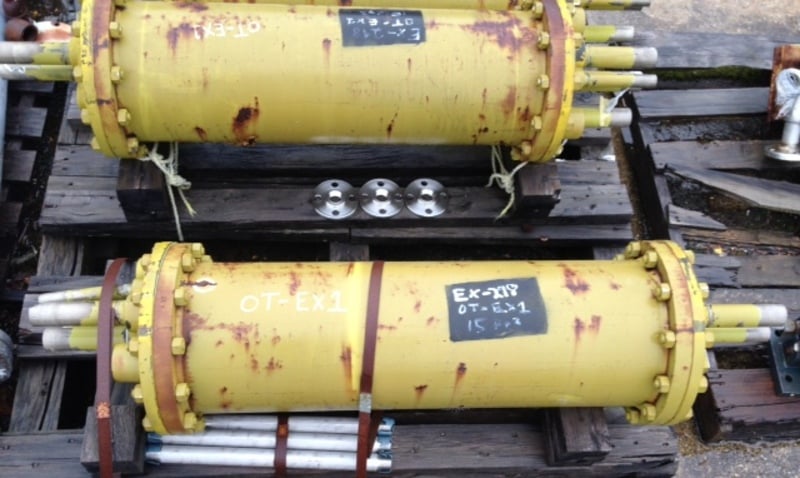

Qty. (3) each: 15 Sq.Ft. HELITHERM steam to water heat exchanger. Steam is primary or tube side fluid and Water is secondary or shell side fluid. Shell is 10.5" dia x 34.75" L. Has 3 coils.
AERCO INTERNATIONAL INC. SW1A03
SPECIFICATIONS:
FT2.......... 15 ft
Tube PSIG.... 250
Tube Mat..... SB62 bronze (copper)
Type......... SHELL AND TUBE
Horiz/Vert... V
Shell PSIG... 260
Shell Mat.... SB62 bronze clad (copper)
Shell Pass... 1
Tube Pass.... 1
Weight....... 240 lbs
Qty. (3) each: 15 Sq.Ft. HELITHERM steam to water heat exchanger. Steam is primary or tube side fluid and Water is secondary or shell side fluid. Shell is 10.5" dia x 34.75" L. Has 3 coils.
AERCO INTERNATIONAL INC. SW1A03
SPECIFICATIONS:
FT2.......... 15 ft
Tube PSIG.... 250
Tube Mat..... SB62 bronze (copper)
Type......... SHELL AND TUBE
Horiz/Vert... V
Shell PSIG... 260
Shell Mat.... SB62 bronze clad (copper)
Shell Pass... 1
Tube Pass.... 1
Weight....... 240 lbs
