16 Results
10 sq.ft., 350 psi shell, 225 psi tube, Standard Refrigeration Co. #OLDX-5-A2, Shell and Tube Heat Exchanger, 4 passes (20) 1/2" diameter x 4'. L Tubes, 0.8 gallon
Genemco | Hearne, TX
Seller: Genemco
Location: Hearne, TX
Standard Refrigeration Co. Shell and Tube Heat Exchanger. Model: OLDX-5-A2. Tube material: copper. Number of passes: 4. Number of tubes: 20. Tube dimensions: 1/2 in. dia. x 4 ft. L. Heat transfer surface area: approx. 10.47 ft. sq. Tube volume: 0.8 gallons. Tube side MAWP: 225 psi. Shell side MAWP: 350 psi. Inlets: ...more
10 sq.ft., 350 psi shell, 225 psi tube, Standard Refrigeration Co. #OLDX-5-A2, Shell and Tube Heat Exchanger, 4 passes, (20) 1/2" diameter x 4' L Tubes, 0.8 gallon
Genemco | Hearne, TX
Seller: Genemco
Location: Hearne, TX
Standard Refrigeration Co. Shell and Tube Heat Exchanger. Model: OLDX-5-A2. Tube material: copper. Number of passes: 4. Number of tubes: 20. Tube dimensions: 1/2 in. dia. x 4 ft. L. Heat transfer surface area: approx. 10.47 ft. sq. Tube volume: 0.8 gallons. Tube side MAWP: 225 psi. Shell side MAWP: 350 psi. Inlets: ...more
15 sq.ft., 260 psig shell, 250 psig tube, Aerco #SW1A03, steam to water heat exchanger, Carbon Steel, SB62 bronze (3 available)
EcReCon Inc. | Pedericktown, NJ
Seller: EcReCon Inc.
Location: Pedericktown, NJ
, Qty. (3) each: 15 Sq.Ft. HELITHERM steam to water heat exchanger. Steam is primary or tube side fluid and Water is secondary or shell side fluid. Shell is 10.5" dia x 34.75" L. Has 3 coils., AERCO INTERNATIONAL INC. SW1A03, FT2. 15 ft, Tube PSIG. 250, Tube Mat. SB62 bronze (copper), Type. SHELL AND TUBE, Horiz/Vert. ...more
26 sq.ft., G & H #T15190, Shell and Tube Heat Exchanger, 2 Passes, (76) 0.5" diameter x 32" L Tubes, 2 gallon, 2002
Genemco | Hearne, TX
Seller: Genemco
Location: Hearne, TX
Year: 2002
G&H Shell and Tube Heat Exchanger. Model: T15190. S/N: CL30. Tube material: copper. Number of passes: 2. Number of tubes: 76. Tube dimensions: 1/2 in. dia. x 2 ft. 8 in. L. Heat transfer surface area: 26.5 sq. ft. Tube volume: 2 gal. For steam injected water heating. Inlets: (1) 4 in. dia. flanged port (shell ...more
41 sq.ft., Standard Refrigeration Co. #QSST-1500, Shell and Tube Heat Exchanger, 5 passes, (44) 5/8" diameter x 5' 9" L tubes, 4 gallon tube, 1990
Genemco | Hearne, TX
Seller: Genemco
Location: Hearne, TX
Year: 1990
1990 Standard Refrigeration Co. Shell and Tube Heat Exchanger - 41.37 sq. ft. Model: QSST-1500. Tube material: copper. Number of passes: 5. Number of tubes: 44. Tube dimensions: 5/8 in. dia. x 5 ft. 9 in. L. Heat transfer surface area: approx. 41.37 sq. ft. Tube volume: 4 gal. MAWP: 350 psi @ 150 F. MDMT: 20F @ 350 ...more
Get email updates for newly added Heat Exchangers - Carbon Steel Shell - Copper/Nickel Tubes
Carbon steel shell with copper/nickel tube heat exchangers are used for efficient heat transfer in applications where durability and corrosion resistance are crucial. These heat exchangers are commonly found in marine environments, power generation, and chemical processing industries due to the copper/nickel tubes' excellent resistance to seawater and other corrosive fluids. The carbon steel shell provides robust structural support, making them suitable for high-pressure operations. This combination ensures reliable performance in demanding conditions while maintaining cost-effectiveness.
175 sq.ft., 350 psi shell, 350 psi tube, York, Shell and Tube Condenser Barrel, 2 passes, 16" shell diameter, 164 tubes, 1/2" diameter x 98" tube, -20°F-250°F temp., 1991
Genemco | Hearne, TX
Seller: Genemco
Location: Hearne, TX
Year: 1991
1991 York Shell & Tube Condenser Barrel. S/N's: PVC-077, PVC-080. Condenser Barrel: Natl Board: 321,322. Shell material: Carbon Steel, Shell dia: 16 in. Tube material: copper. Number of passes: 2. Number of tubes: 164. Tube dimensions: 1/2 in. dia. x 8 ft. 2 in. Heat transfer surface area: approx. 175 sq. ft. ...more
286 sq.ft., 171 psi shell, 221 psi tube, Xylem, Shell & Tube Heat Exchanger, horizontal, -20 to 500 F temp., 2019
Aaron Equipment Co | Schaumburg, IL
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Year: 2019
unused- xylem shell and tube heat exchanger. 26.6 square meter (286.3 square feet) effective surface area, horizontal. carbon-steel shell. shell side: 171 psi at -20 to 500 degrees f. tube side 221 psi at -20 to 500 degrees f. copper-nickel (cuni 90/10) tubes. nb #316316. built 2019. our freight specialists can assist ...more
475 sq.ft., 150 psi shell, 75 psi tube, Philadelphia Pipe Bending Co, Carbon Steel shell heat exchanger
Machinery & Equipment Co | Brisbane, CA
Seller: Machinery & Equipment Co
Location: Brisbane, CA
Year: 1995
Philadelphia Pipe Bending Company carbon steel shell heat exchanger, 475 sq. ft. Unit has 582 copper tubes, 5/16" diameter x 10' long. Shell side rated at 150 PSI @ 300 deg. F., tube side rated at 75 PSI @ 300 deg. F. Unit has bolt on heads on both ends, (2) 8" and (2) 6" flange type ports. Unit manufactured new ...more
1000 sq.ft., 100 psig shell, 100 psig tube, Krueger, shell and tube, Carbon Steel & copper SB-111, 400°F, 2 tube pass (2 available)
EcReCon Inc. | Pedericktown, NJ
Seller: EcReCon Inc.
Location: Pedericktown, NJ
, Qty (2) each: 1000 Sq.Ft. Used shell and tube heat exchanger. (319) 3/4" x 15'6" SA-179/SB 111 COPPER AND COPPER ALLOY tubes. AES, AEU. Rated 100 PSI @ 400 degF on both shell and tube sides., KRUEGER,SHE., FT2. 1000 ft, Tube PSIG. 100, Tube Deg. 400, Tube Mat. Copper SB-111, Type. SHELL AND TUBE, Horiz/Vert. H ...more
JUST ADDED!

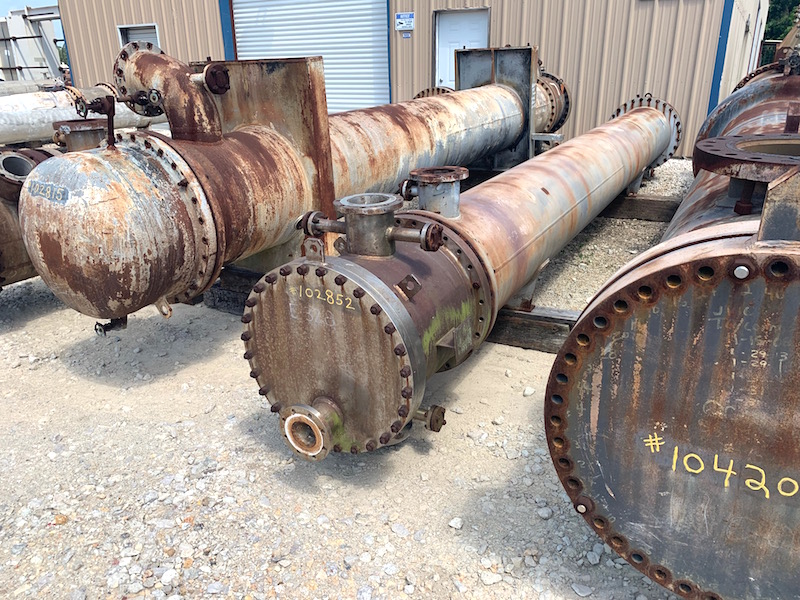

1805 sq.ft., 75 psi shell, 85 psi tube, Ohmstede, 650°F shell, 300°F tube, .75" tube diameter, 20' tube length, fresh water cooler, 1995
Louisiana Chemical Equip Co | Baton Rouge, LA
Seller: Louisiana Chemical Equip Co
Location: Baton Rouge, LA
Year: 1995
ITEM NO : 102852 QTY : 1 ALLOY : B SQ.FT. : 1805 MATERIAL (S) : CS MATERIAL (T) : 70-30 CUNI MATERIAL (H) : (1)316LSS & (1)CS PSI (S) : 75 PSI (T) : 85 TEMP. DEG. F (S) : 650 TEMP. DEG. F (T) : 300 TUBE DIAMETER IN" :.75 TUBE LENGTH FT'IN" : 20'0" TUBE HOLES : 460 TUBE PITCH :.9375" TRI ...more
JUST ADDED!

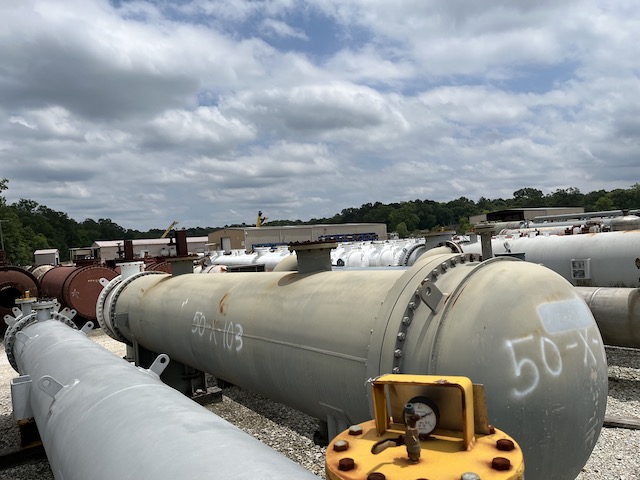

4080 sq.ft., 151, 151, Ohmstede, 500°F, .75" tube diameter, 20' tube length, 2004, unused
Louisiana Chemical Equip Co | Baton Rouge, LA
Seller: Louisiana Chemical Equip Co
Location: Baton Rouge, LA
Year: 2004
ITEM NO : 108887 QTY : 1 ALLOY : B SQ.FT. : 4080 MATERIAL (S) : CS MATERIAL (T) : 70/30 COPPER NICKEL MATERIAL (H) : CS PSI (S) : 151FV PSI (T) : 151FV TEMP. DEG. F (S) : 500 TEMP. DEG. F (T) : 500 TUBE DIAMETER IN" :.75 TUBE LENGTH FT'IN" : 20'0" TUBE HOLES : 1156 TUBE WALL :.065" PASSES ...more
500 psig shell, 150 psi tubes, Thermal Transfer Products, Shell & Tube Heat Exchanger, 2-Pass, 5" diameter x 24" L Shell housing
Cooper Industries Llc | Millwood, WV
Seller: Cooper Industries Llc
Location: Millwood, WV
ITEM 16333: Unused THERMAL TRANSFER PRODUCTS Heat, Exchanger – EKF Series, 2-pass, design. Copper-nickel alloy tube, material. Cast iron bonnet, material. Hot oil in / Cooled oil out, (2″Ø SAE 4-bolt hydraulic flanges)., 1″ FNPT cooling water in/out connections. The carbon steel shell housing ...more
Water to Water Heat Exchanger, 600 HP engine jacket water, 2016
Diesel-Powered.com | East Earl, PA
Seller: Diesel-Powered.com
Location: East Earl, PA
Year: 2016
Stock#: IE00-643-Cooler Year: 2016 Hours: 0 Hours Length: 48" Width: 40" Height: 32" Weight: 375 lbs Condition: New Surplus.
Standard Refrigeration #AHX1006A2, Horizontal Chiller Condenser, 2-pass, Carbon Steel shell, copper tubes, 350psi @ 250°F, unused
Federal Equipment Company | Cleveland, OH
Seller: Federal Equipment Company
Location: Cleveland, OH
Unused Standard Refrigeration - Ketema LP (ACME) 2-pass horizontal chiller condenser, carbon steel (CS) shell, copper tubes, cast iron heads, steel tubesheets. Standard design AHX1006A2. MAWP 350psi @ 250F, Min design metal temp 20F @ 350 psi. National Board 560112, Serial 560112.
Caterpillar, Heat Exchanger & Expansion Tank for CAT 3512 Marine Cooling
Diesel-Powered.com | East Earl, PA
Seller: Diesel-Powered.com
Location: East Earl, PA
Stock#: IE00-645-Heat Exch Make: Caterpillar Length: 50" Width: 35" Height: 35" Weight: 1500 lbs Condition: Good Used.
Bell & Gossett heat exchanger, shell & tube, oil/water (2 available)
W H Kay Co, The | Cleveland, OH
Seller: W H Kay Co, The
Location: Cleveland, OH
