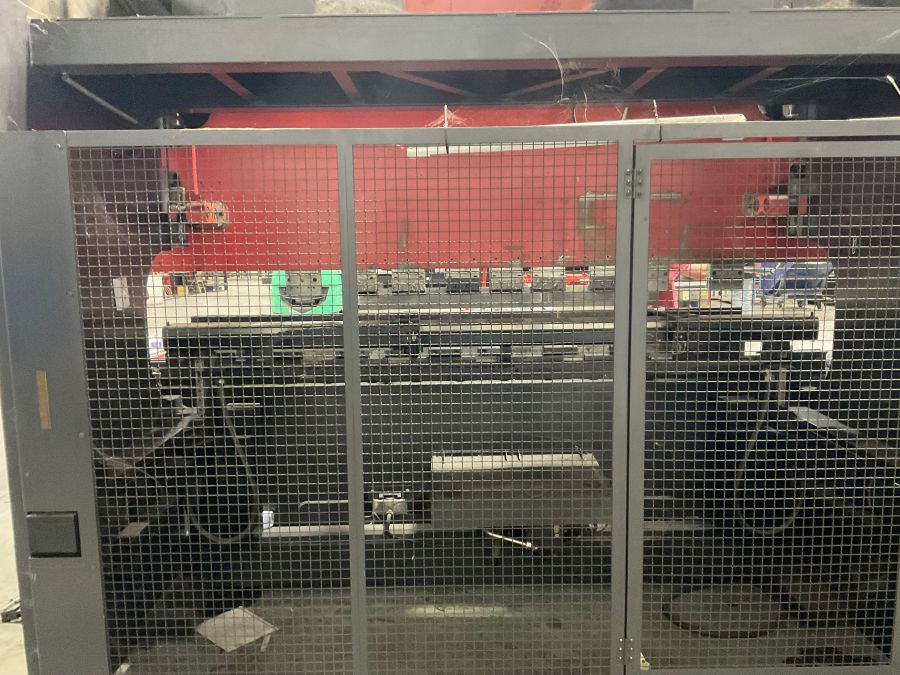

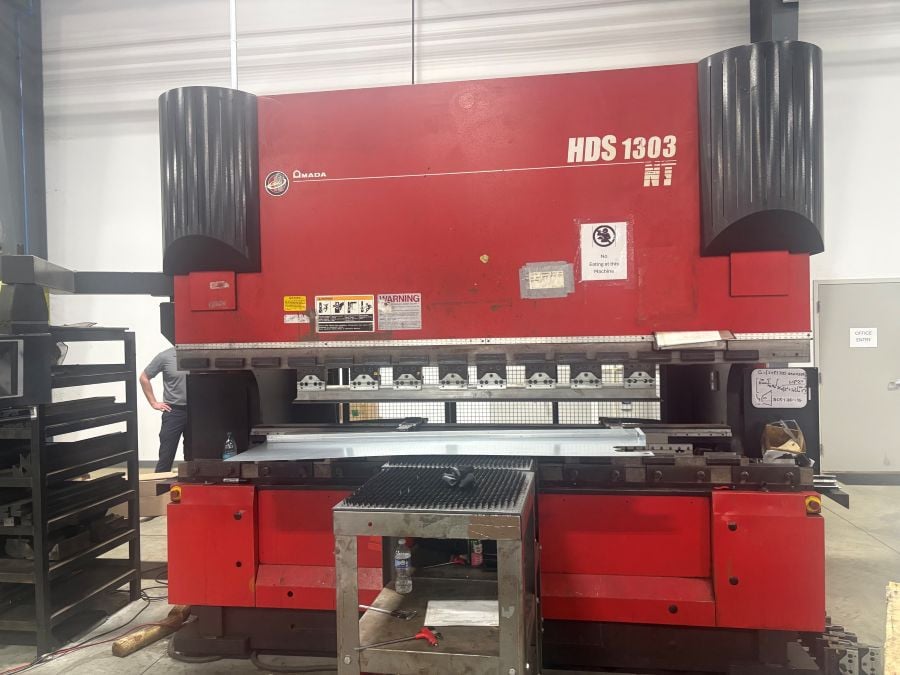

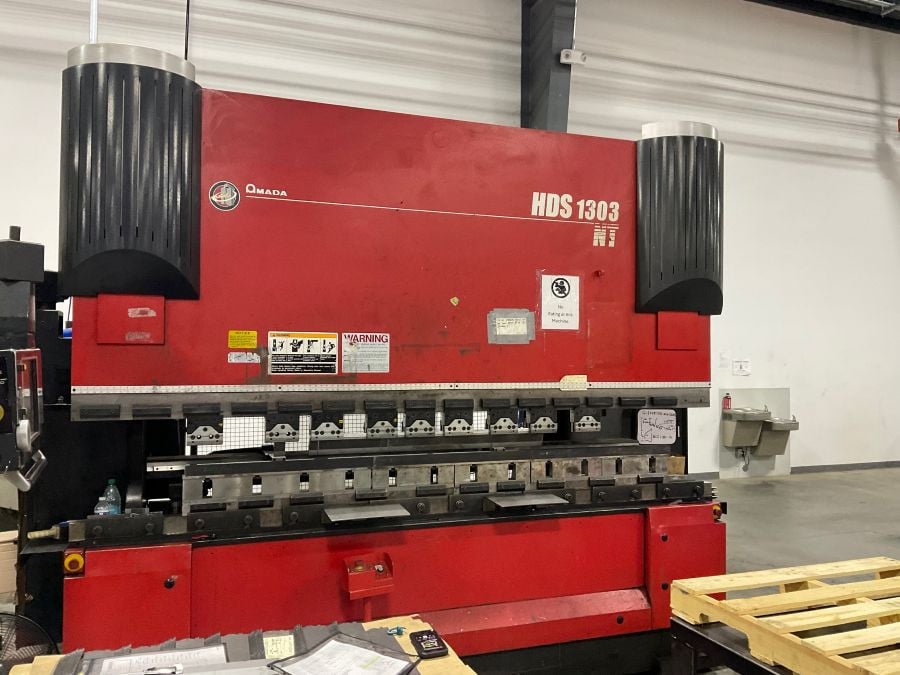

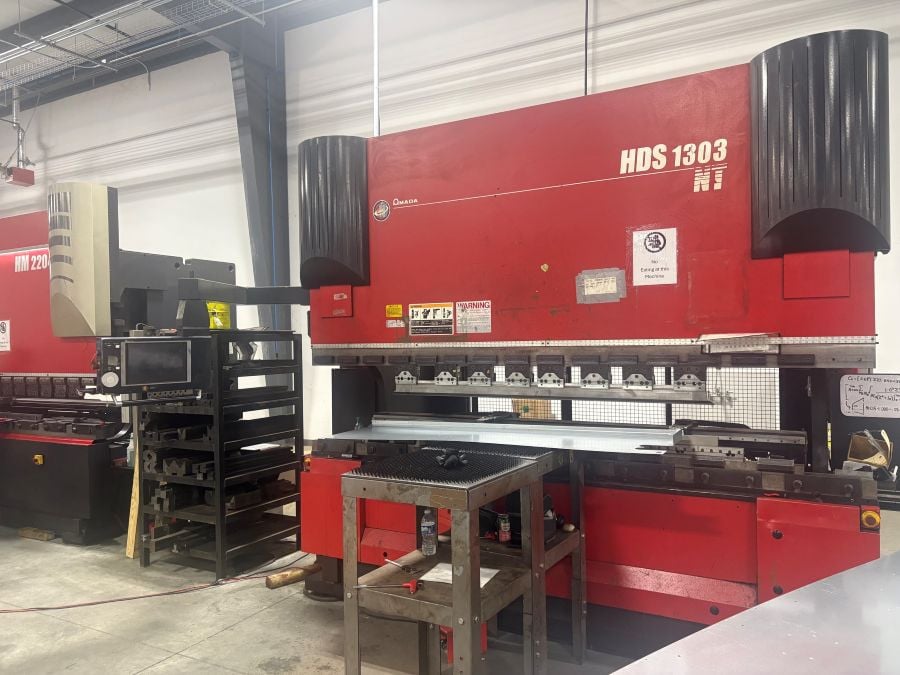

143 Ton, Amada #HDS-1303NT, 10' overall, 106.3" between housing, 5-Axis CNC backgauge, 2014 #1336

System Specifications
Capacity: 143 US tons
Maximum Bending Length: 126.8”
Distance Between Uprights: 106.3”
Throat Depth: 17.7”
Stroke Length: 7.9”
Open Height: 19.7”
Approach speed of upper beam: 7.87 ips
Bending speed of upper beam: 0.79 ips
Return speed of upper beam: 7.87 ips
Number of main cylinders: 2
Hydraulic pump motor output: 5.2 x 2.7 HP
Hydraulic Oil Reservoir: 17.8 gal

Backgauge
Repeatability: L Axis 0.0008 inches

Movement Range
L Axis 27.55 inches
Y Axis 86.6 inches
Z Axis 9.8 inches

Feed Speed
L Axis 1,180 inches per minute
Y Axis 2,362 inches per minute
X Axis 393 inches per minute

Machine Dimensions
Overall Length: 185.6”
Overall Width: 89.6”
Overall Height: 118.5”
Ground Height: 118.5”
Machine Weight: 24251 lb.

CNC Controller
Model: Amada AMNC-PC
Axes of Control: Eight
Input Method: Touch Screen
15" Color Liquid Crystal Touch Screen
Program Storage
Limited only by network storage capacity
Bends per Program: 99
Die Library: 300
Punch Library: 300
