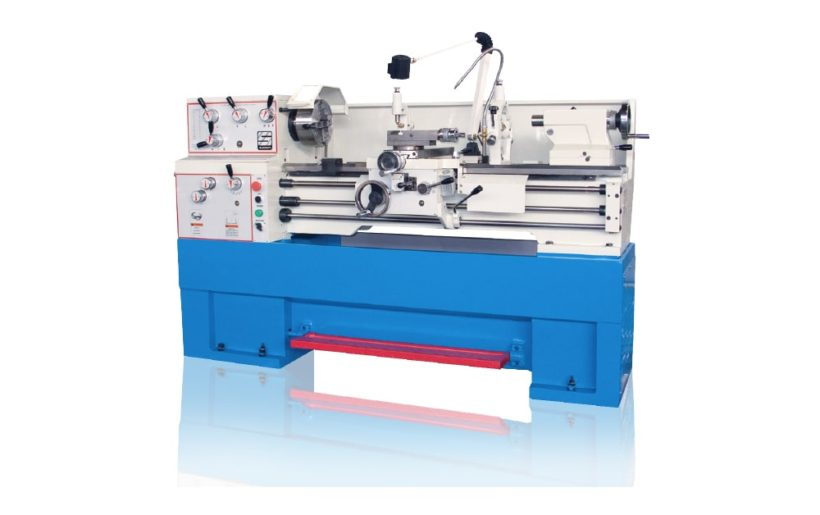

14" x 40" Summit #14X40, Precision Engine Lathe, new

Manufacturer Summit
Model 14 X 40
Swing 14.0"
Centers 40.0"
Stock # 81645

For Sale by Smith Machinery Co

Platinum Level Dealer
Surplus Record Dealer Since 2001

Description

Specifications

Equipped With
SPECIFICATIONS:CAPACITIES:
SWING OVER BED --------------------- 14 in
SWING OVER CROSS SLIDE ------------- 8 1/4 in
SWING OVER GAP --------------------- 20 in
LENGTH OF GAP ---------------------- 9 1/4 in
MAX WEIGHT CAPACITY AT HEADSTOCK --- 100 LBS
MAX WEIGHT CAPACITY BETWEEN CENTERS- 400 LBS

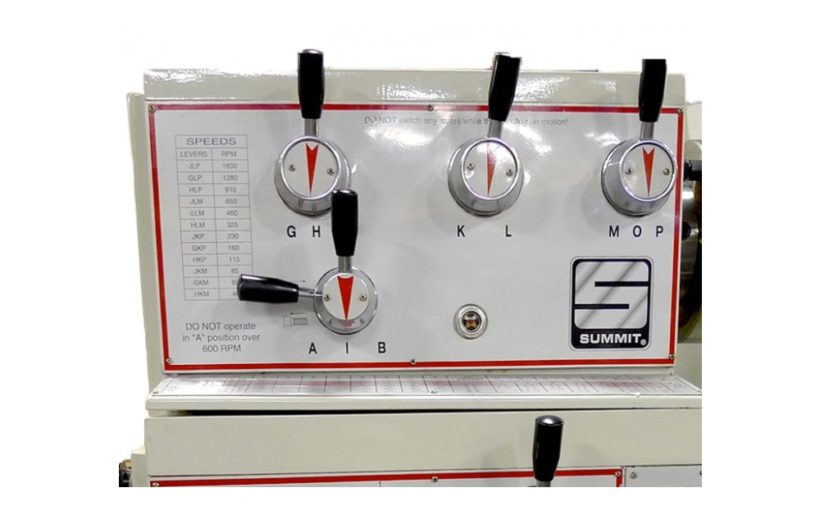

HEADSTOCK:
SPINDLE SPEEDS (NUMBER) RANGE ------ (12) 40-1800 RPM
HOLE THRU SPINDLE ------------------ 1-1/2 in
SPINDLE NOSE ----------------------- D1-4 CAMLOCK
HEADSTOCK CENTER ------------------- #5 MT
QUICK CHANGE GEARBOX:
THREADS PER INCH (NUMBER) RANGE ---- (40) 4-112
METRIC THREADS (NUMBER) RANGE ------ (24) .45-7.5
LONGITUDINAL FEEDS (NUMBER) RANGE -- (40) .0011-.0271
CROSS FEEDS (NUMBER) RANGE --------- (40) .0003-.0090
LANDSCREW (DIA) RANGE -------------- (.875 in ) 8 TPI
FEED ROD DIAMETER ------------------ .750 in
LUBRICATION SYSTEM ----------------- OIL BATH

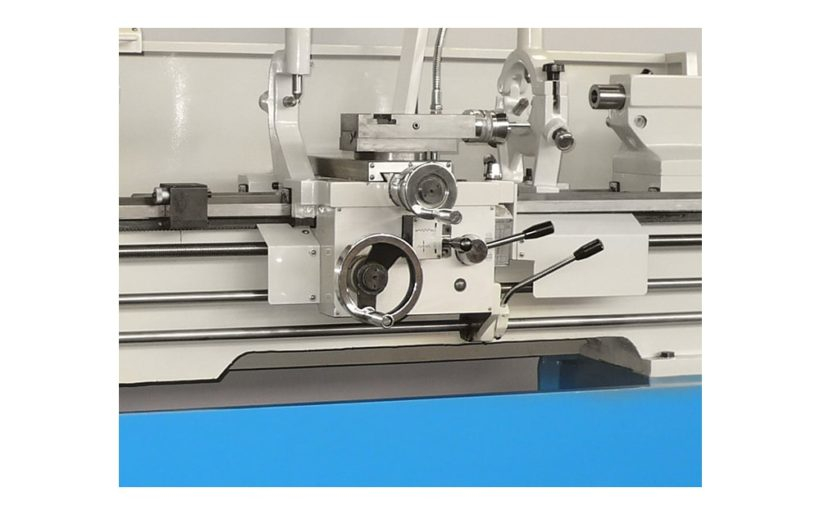

CARRIAGE & APRON:
CROSS SLIDE TRAVEL ----------------- 6 1/2 in
COMPOUND REST TRAVEL --------------- 3 1/4 in
GRADUATION OF APRON HANDWHEEL ------ 0.005 in
GRADUATION OF CROSS SLIDE HANDWHEEL- 0.001 (DIR READ)
TAILSTOCK:
TRAVEL OF SPINDLE BARREL ----------- 5 in
DIAMETER OF SPINDLE BARREL --------- 1 3/4 in
TAPER OF CENTER -------------------- #3 MT
BED:
WIDTH OF BED ----------------------- 10 1/4 in
DEPTH OF BED ----------------------- 12 3/4 in
HARDNESS OF BED (ROCKWELL C)-------- 42-48
TAPER ATTACHMENT:
DEGREES OF TAPER ------------------- 8 DEGREES
MAXIMUM TURNING LENGTH PER SETTING - 13 in
MOTORS:
MAIN MOTOR ------------------------- 4 HP
COOLANT PUMP ----------------------- 1/8 HP
VOLTAGE ---------------------------- 220/440/3/60

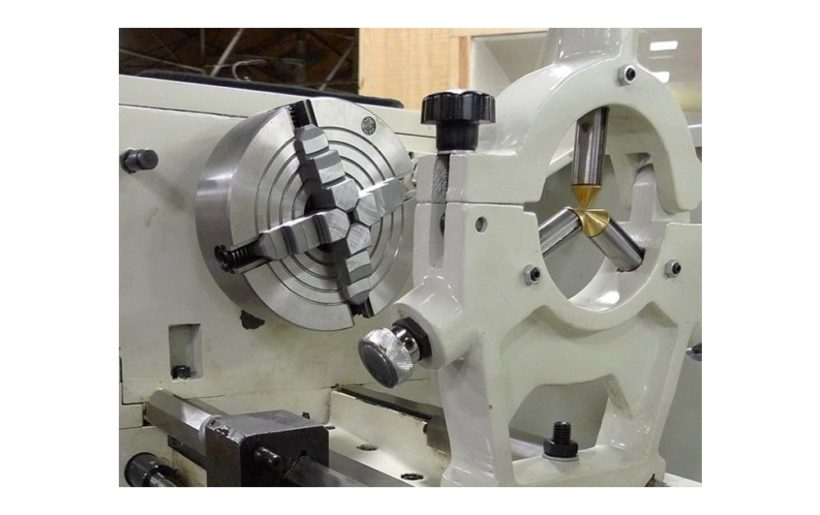

STEADY AND FOLLOW REST:
STEADY REST ------------------------ 1/4 in -3 1/2 in
FOLLOW REST ------------------------ 1/4 in -3 in
SHIPPING DATE:
WIDTH ------------------------------ 36 in
HEIGHT ----------------------------- 54 in
LENGTH ----------------------------- 78 in
WEIGHT ----------------------------- 2,491 LBSFEATURES:BIG 1 1/2 inch THRU HOLE
FOOT BRAKE
INCH/METRIC THREADS
HARDENED & GROUND BEDWAYS
FORCED LUBRICATION TO THE HEADSTOCK, CARRIAGE AND BEDWAYS
REMOVABLE GAP
PRECISION (3) BEARING SPINDLE
CROSSFEED AND THREADING SAFETY INTERLOCK
DUAL INCH/METRIC DIALS
T-SLOTTED COMPOUNDEQUIPPED WITH:STEADY REST
FOLLOW REST
THREAD DIAL
COOLANT SYSTEM
TAPER ATTACHMENT
8 inch 3 JAW CHUCK w/2 pc. JAWS
8 inch 4 JAW CHUCK
12 in FACEPLATE
4 WAY SQUARE TOOL POST
MICROMETER CARRIAGE STOP
WORK LIGHT
FULL LENGTH SPLASH GUARD
SERVICE WRENCHES & SPANNERSSPECIFICATIONS SUBJECT TO VERIFICATION OPTIONAL FEATURES:ALORIS QUICK CHANGE TOOL POST W/HOLDERS(2#1,2#2) - $ 900.00
8 in SETTRU STEEL BODY 3-JAW PRECISION CHUCK
W/TOP 2 PIECE JAWS ------------------------------- $2,000.00
NEWALL 2 AXIS DIGITAL READOUT INSTALLED ---------- $3,100.00
LEVER OPERATED 5C COLLET CLOSER INSTALLED -------- $1,500.00DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE

Submit Inquiry to Smith Machinery Co
