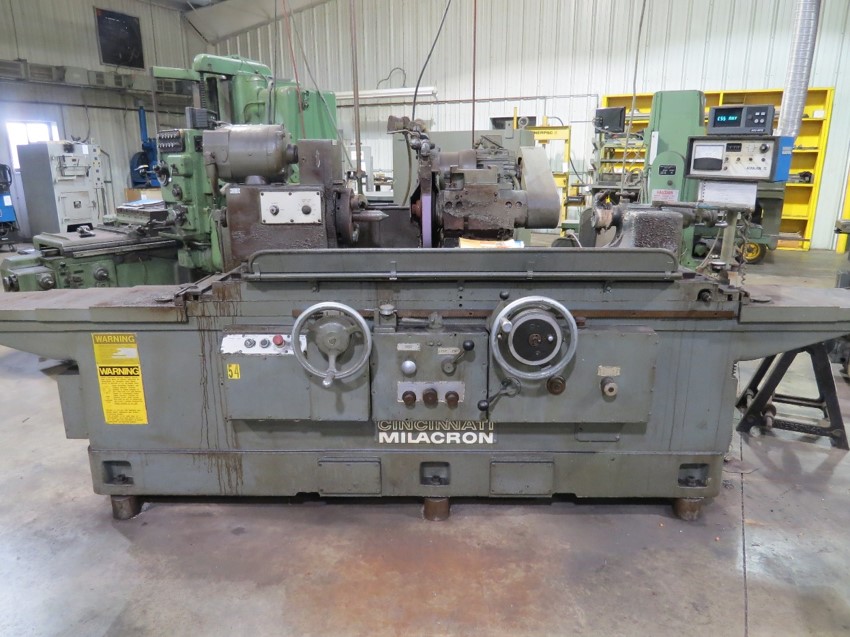

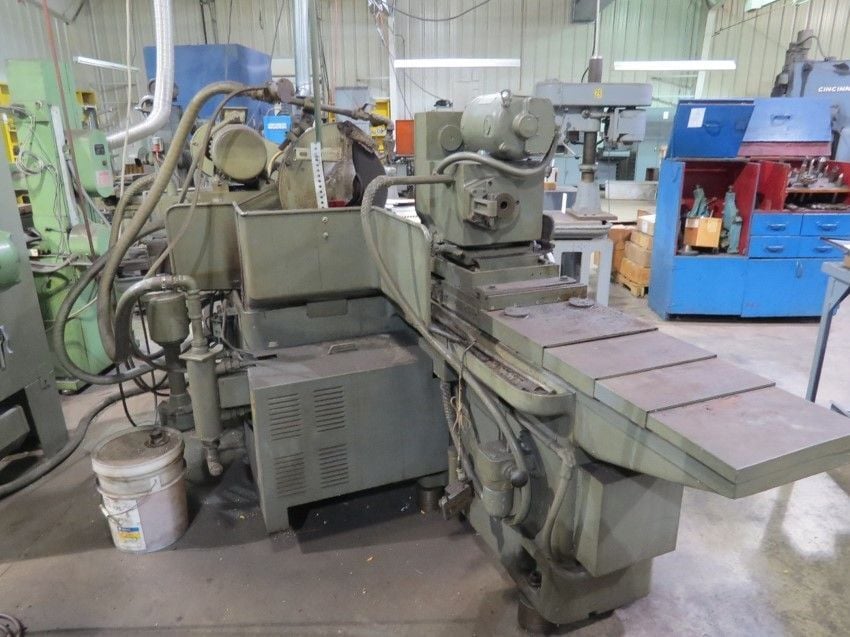

14" x 36" Cincinnati #DE, universal cylindrical grinder, 12" x 1.5" x 5" grinding wheel, 7.5 HP

Cincinnati 14 X 36 Universal Cylindrical Grinder. Features swivel range up to 90 degrees, variable work speeds, hydraulic table travel, and a powerful 7.5 HP wheel head motor. Fully equipped with coolant and hydraulics.
14 x 36 CINCINNATI UNIVERSAL CYLINDRICAL GRINDER

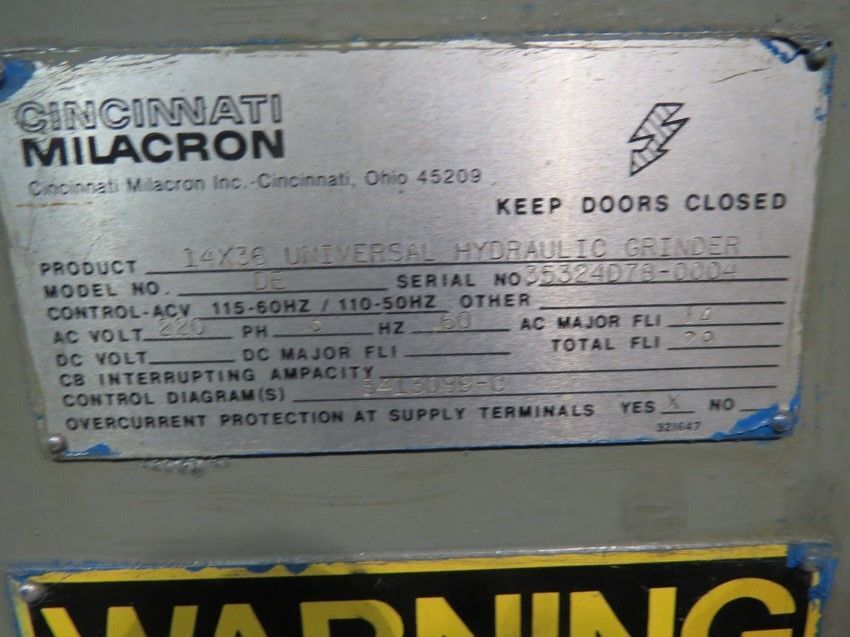

S/N 35324D78-0004
STANDARD CATALOG SPECIFICATIONS
Swivel range (lower swivel, right & left).......... 90 degrees
(upper swivel, right & left).......... 30 degrees

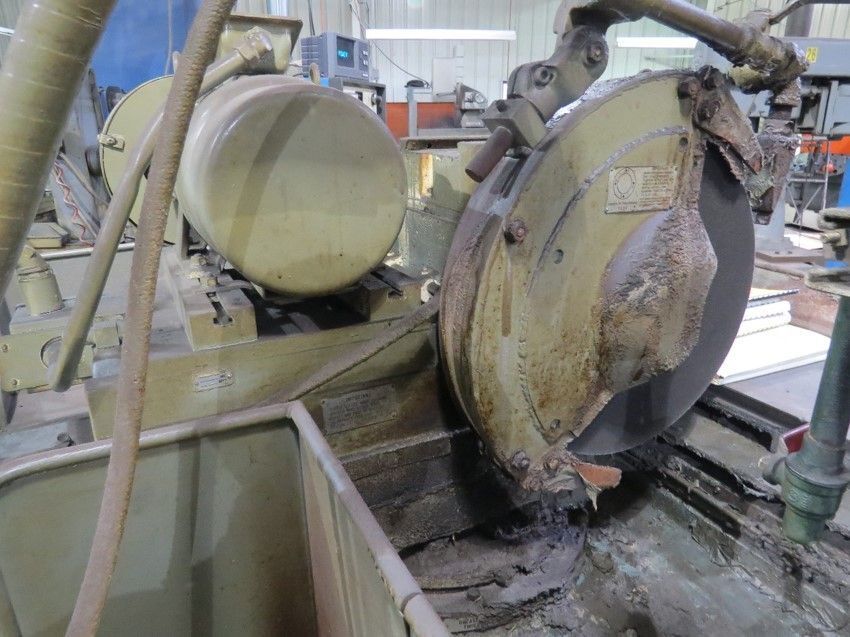

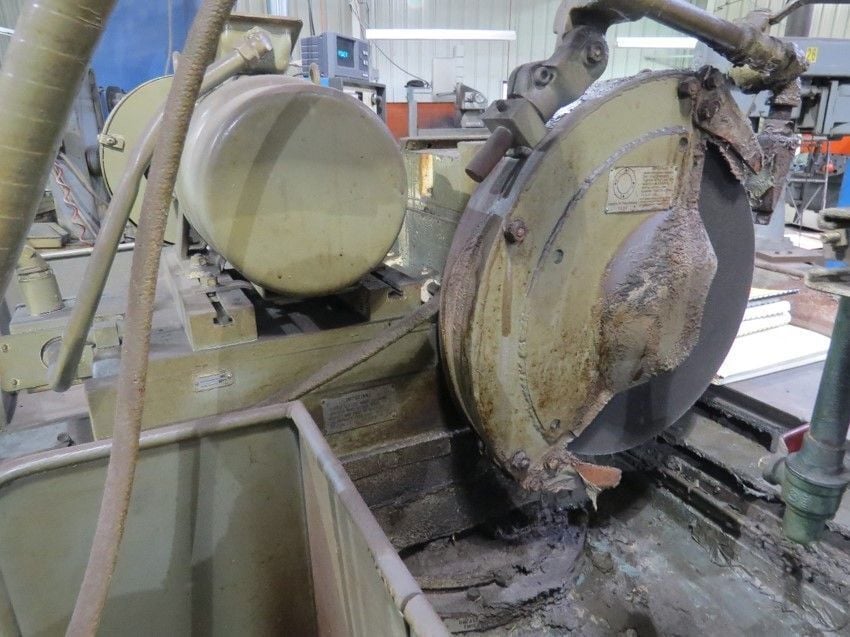

Grinding wheel (dia. x face x hole)............. 12" x 1 1/2" x 5"
CROSS FEED
Automatic infeed at table reversal:
Diameter reduction........ (low).............. .0002" to .005"
(high)............. .0005" to .0125"
Wheel head movement per turn of cross feed:
Hand wheel................ (low).............. .050"
(high)............. .250"
Minimum infeed increment in terms of:
Diameter reduction............................ .00005"
HEAD STOCK & FOOT STOCK
Taper hole in head stock & foot stock spindles..... #9 B & S
Number of work rotation speeds..................... Variable

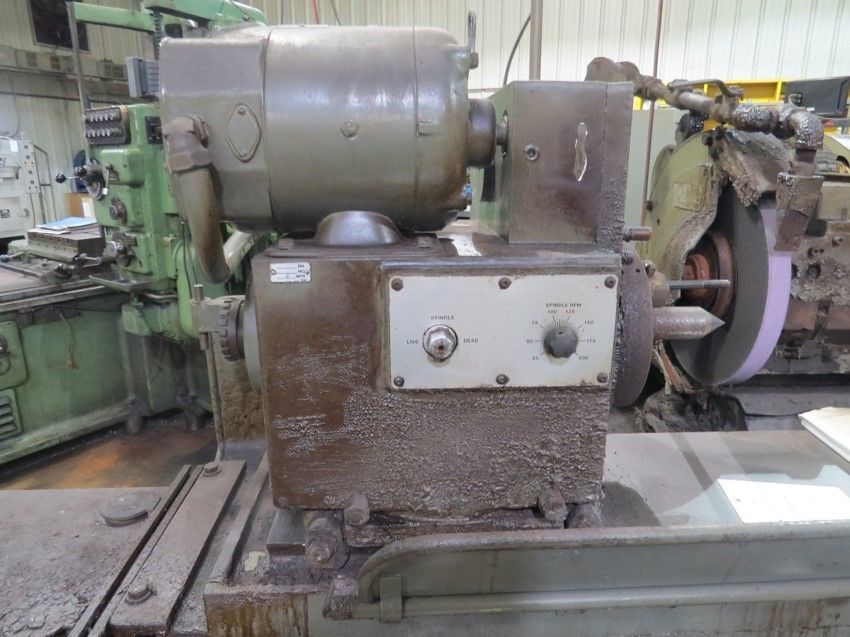

Head stock spindle nose, American lathe standard... 5"
Head stock swivel: (toward wheel head)............. 90 degrees
(away from wheel head).......... 30 degrees

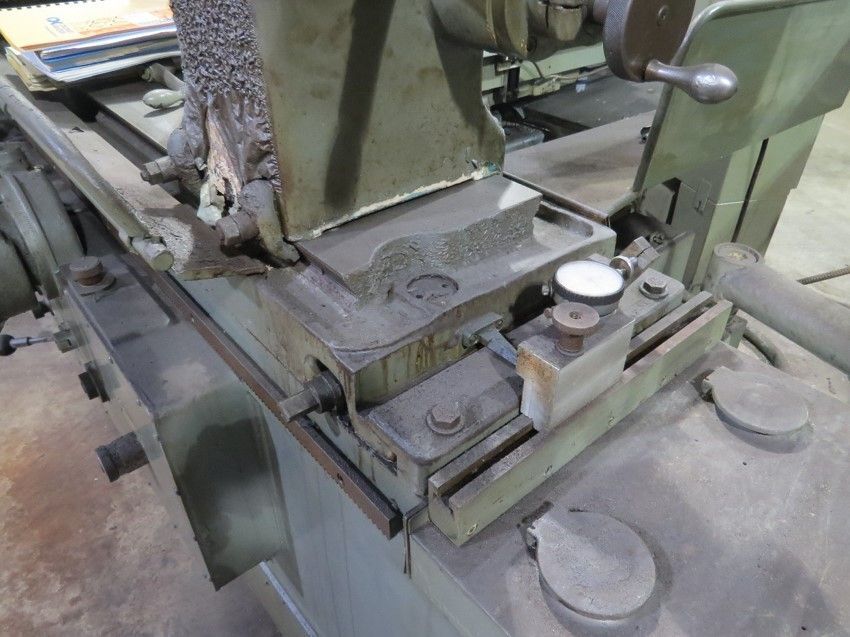

TABLE
Number of table traverse speeds.................... Infinite
Range of table traverse speeds (in per min)........ 3 240
Minimum movement required to reverse table......... 3/32"
Accuracy of table reversal at all traverse rates... .004"
Independent right hand and left hand tarry,
seconds............................................ 0 to 5
Mechanical hand table traverse per revolution
of hand wheel.................. (Rapid)............ 15/16"
(Slow)............. 0.2"
POWER REQUIREMENTS
(Electrical equipment included with machine)
Wheel head motor................................... 7.5 HP
Hydraulic pump motor............................... 1 HP
Head stock motor................................... 3/4 HP
Internal grinding attachment motor....... 2 HP - 3750 R.P.M
Cutting fluid pump motor........................... 1/4 HP
SPECIFIC SPECIFICATIONS
Maximum swing over table........................... 14 15/16"
Maximum diameter machine will grind with:
Full size wheel.................................... 14 15/16"
Minimum diameter machine will grind with:
Either full size or worn out wheel................. 0
Nominal distance between centers................... 36"
Distance from floor to centers..................... 42 1/4"
Swivel table graduated to angle of:
Toward wheel head.................................. 10 degrees
Away from wheel head............................... 3 degrees
Swivel table graduated to taper per foot of:
Toward wheel head.................................. 4 1/2 degrees
Away from wheel head............................... 1 1/4 degrees
EQUIPMENT & FEATURES

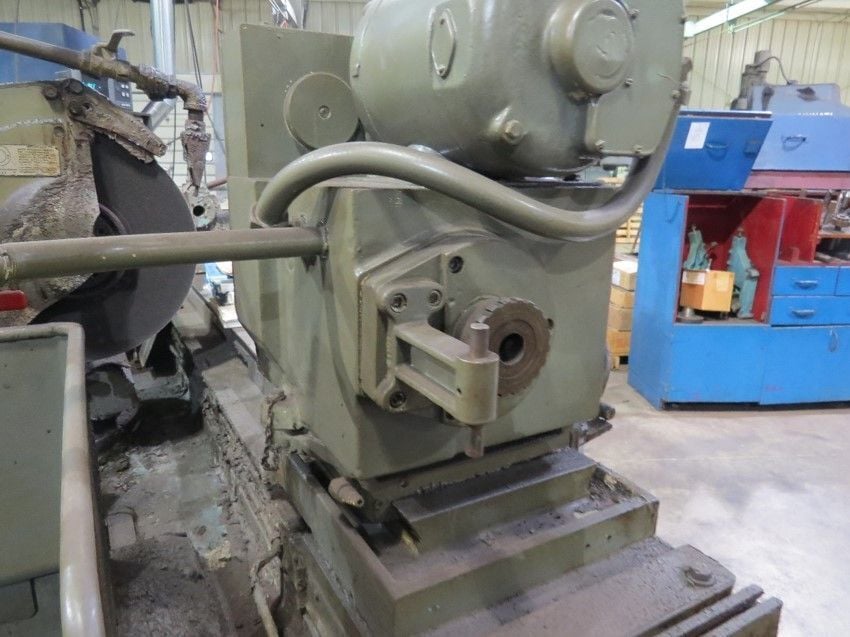

Lever operated tail stock with truing attachment.
Left and right tarry at end of table stroke.
Self contained coolant and hydraulics.
Flat table.
Auto pick feed.

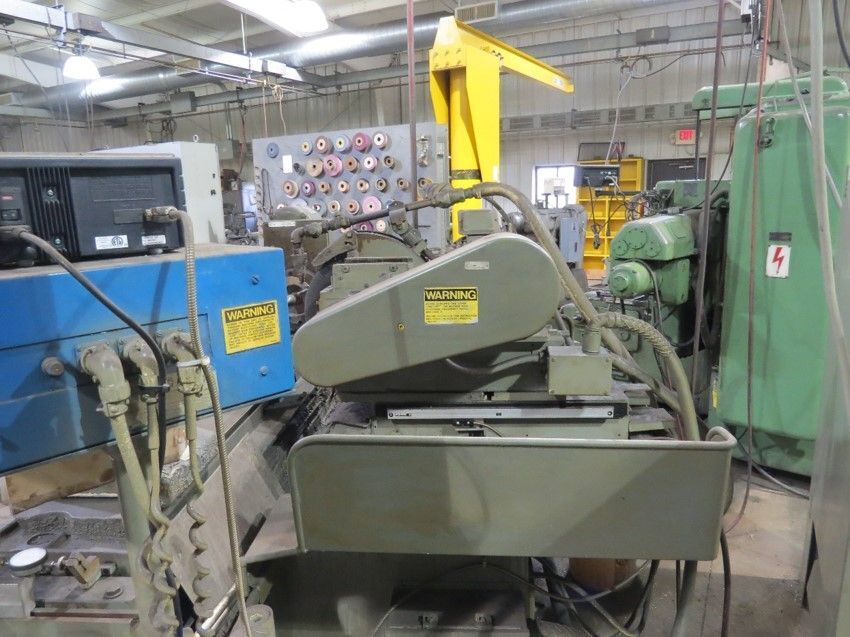

Swing down internal attachment.
Live/dead center work head.
Vari-speed work head drive.
Hydraulic table travel.
Stand alone electrical.
Specifications are deemed accurate, however, subject to verification or prior sale.
