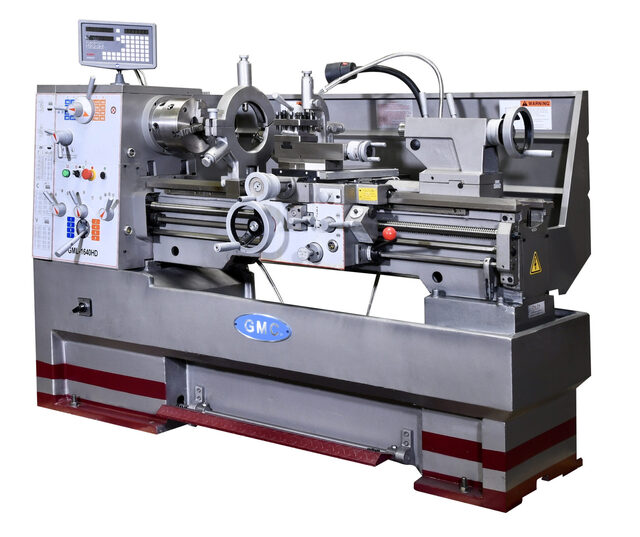

GMC 14″ x 40″ Heavy-Duty Precision Gap Bed Lathe, GML-1440HD
Inventory # 9353
Model: GML-1440HD
Specifications:
Max. Swing Over Bed: 14 7/8″
Max. Length of Workpiece: 40″
Max. Swing Over Cross Slide: 10 1/16″
Max. Swing in Gap: 23 1/4″
Width of Bed: 10 1/4″
Effective Length in Gap to Spindle: 8 1/2″
Effective Length in Gap to Chuck Jaws: 3 1/2″
Spindle Bore: 2 1/16″ – D1-6
Taper of Spindle Center: M.T. # 6
Spindle Speeds: 45 – 1,800 RPM, 16-Steps
Longitudinal Feeds: 0.0018 – 0.07 IPR, 42 Kinds
Cross Feeds: 0.0009 – 0.03 IPR, 42 Kinds
Inch Threads: 70 – 2 TPI, 45 Kinds
Metric Threads: 0.2 – 14 mm, 39 Kinds
Module Threads: 0.3 – 3.6 mm, 18 Kinds
Diametral Pitch Threads: 8 – 40 DP, 21 Kinds
Max. Travel of Top Slide: 4 1/4″
Max. Travel of Cross Slide: 8 1/2″
Spindle Length without Chuck: 20 1/2″
Leadscrew Diameter x TPI: 1 1/4″ Diameter x 4 TPI
Diameter of Tailstock Quill: 2 1/16″
Max. Travel of Tailstock Quill: 5″
Headstock Size: 16″ x 17″
Taper of Tailstock Quill Center: M.T. # 4
Motor: 6 HP / 220v / 3ph
Standard Features:
ISO 9001 Certified
Large Spindle Bore, 2 1/16″
Heavy Duty Spindle, D1-6
One-Piece Solid Cast Iron Machine Base
Heavy Duty Guideway with 10 1/4″
Heavy Duty Main Motor, 6 HP
16 Spindle Speeds from 45 – 1,800 RPM: 45/75/90/130/160/195/210/260/350/390/600/690/790/910/1,200/1,800
45 Kinds of Inch Threads and 39 Kinds of Metric Threads
Threading and Feeding Rate Change without Changing Gears
Spindle is Balanced, Hardened, and Precision Ground
Spindle is Supported at 3-Point by High Precision Bearings
All Gears and Shafts are Hardened and Precison Ground
Automatic Lubrication System in Headstock and Feed Box
One-Year Warranty for Parts
Equipment Included:
Free SINO Digital Readout, Installed
Free Taper Turning Attachment, Installed
8″ 3-Jaw Chuck with One Set of Reversible Jaws
10″ 4-Jaw Chuck
12″ Face Plate
5 1/2″ Large Steady Rest with Roller Jaws
Oil Pump on Apron for all Guideways and Leadscrews
2″ Follow Rest
Removable Gap
4-Way Tool Post
Foot Brake
Coolant System
Halogen Worklight
Full Length Splash Guard
(2) Dead Centers and (1) Reducing Sleeve, MT6/MT4
Thread Chasing Dial
Tool Box and Leveling Pads
Mechanical Specifications:
Dimensions: 79″ x 38″ x 53″ H
Weight: approx. 4,350 lbs.
FOB Factory – Contact us for Availability
Please Note: This machine is not compatible with phase converters and using a phase converter will void the machine’s warranty
