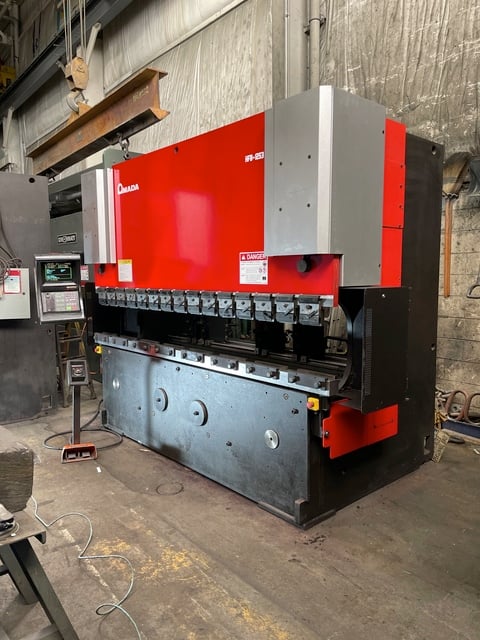

138 Ton, Amada #HFB-1253, CNC press brake, 10.2'OA, 106" between housing, 7.8" stroke, 16.5" throat

1. Pre Owned Amada Model HFB 1253 CNC Press Brake

GENERAL SPECIFICATIONS

Capacity 138 TONS

Overall length of Bed & Ram 122”

Distance Between Housings ` 106”

Stroke 7.8”

Open Height 18.5”

Closed Height 10.7”

Throat Clearance 16.5”

Speeds

Approach 236 IPM

Form 2.4 - 19.2 IPM

Return 2.4- 189 IPM

Distance, Floor to Top of Bed 36”

Width at Top of Bed 3.5”

Main Motor Horsepower 460/3/60

CONTROL FEATURES

Amada Operatuer 8 Axis CNC Control X1, X2, Y1,l Y2, )

12” Color CRT

Punch & Die Library

Self Diagnostics

Graphical Interface

EQUIPPED WITH

Amada CNC Heavy Duty Programmable Back Gauge Controlling (X1, X2, Manual R1, R2, Z1, Z2, Z3, Z4)

Off Center Load Compensation

Full Tonnage Throughout Stroke

Electric Foot Switch

Pedestal Palm Button Station

Manuals

Approximate Overall Weight 16,500 lbs.

Approximate Overall Dimensions 145” L X 86W X 113” H
