For Sale by Aleco Machinery Sales
Description

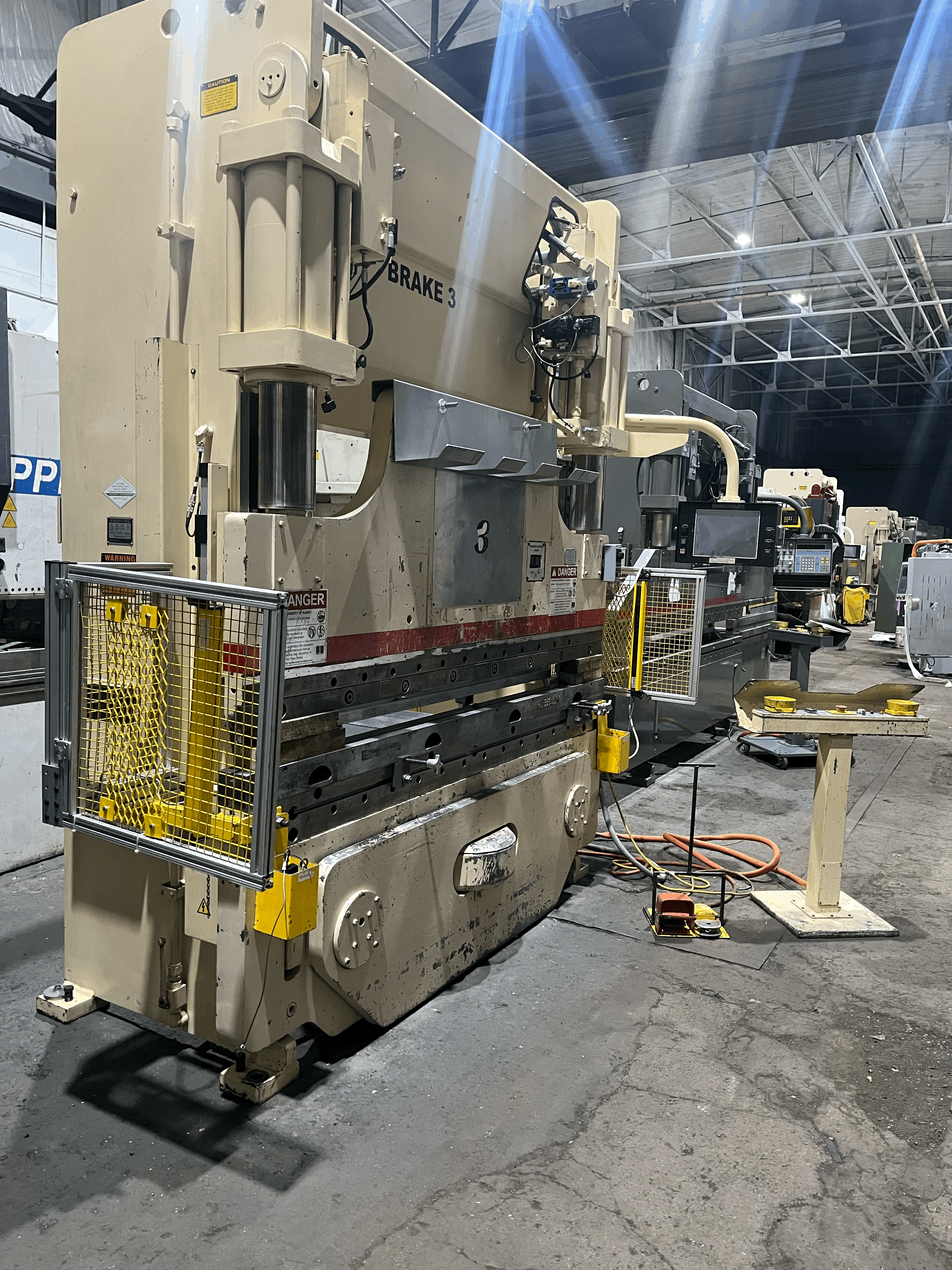

135 Ton X 8’ Cincinnati Autoform CNC Forming Center
GENERAL SPECIFICATIONS
Capacity 135 TONS
Overall Length of Bed & Ram 8’
Distance Between Housings ` 6’6 3/4”
Stroke 14” (6” Extended)
Open Height 21”
Closed Height 7”
Throat Clearance 7”
Speeds
Approach 290 INCH PER MINUTE
Form 1 - 80 INCH PER MINUTE
Return 1 - 270 INCH PER MINUTE
Back Gage Speeds X- AXIS’, 1200 INCH PER MINUTE
Width at Top of Bed 4 ½”
Main Motor Horsepower 25
CONTROL FEATURES
Cincinnati PC Mounted Multi-Axis Control
Programmable Forming Speeds
Programmable Ram Opening
Programmable Reversal
Programmable Tonnage
Control Diagnostics
Tool Library
EQUIPPED WITH

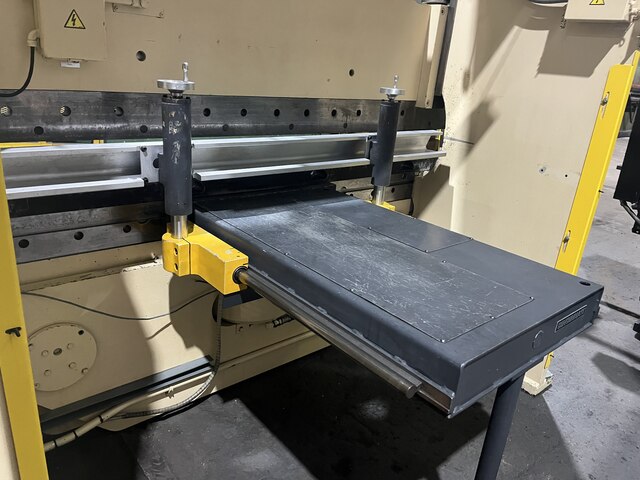

24 “2-Axis CNC Programmable Back gage with manual R Axis
ISB MerlinLight Barriers
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Autovrown
Off Load Center Compensation
Variable Volume Load Sensing Pump And Servo Hydraulic System
Programmable Electric Foot Switch
Pedestal Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders
Bed & Ram Machined & Drilled for 5 ¾” Angles (Not Provided)
Approximate Overall Weight 20800
Approximate Overall Dimensions 133 L X ‘ 122”H X 58” W
