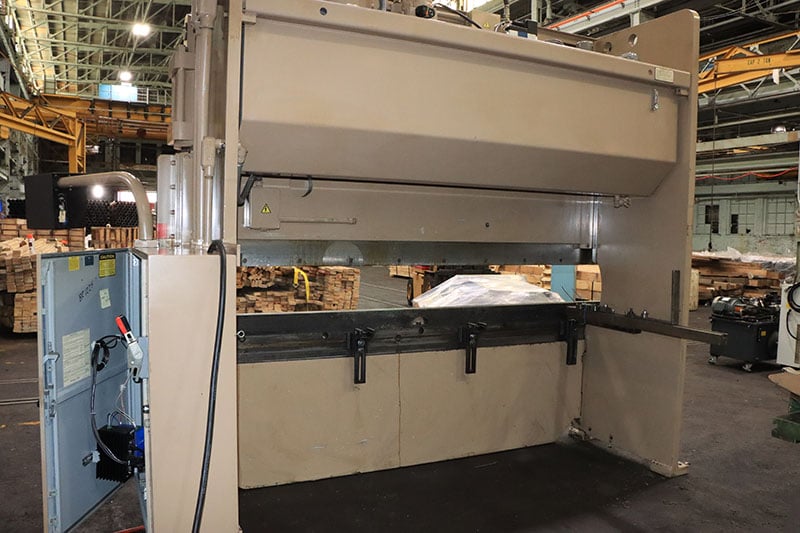

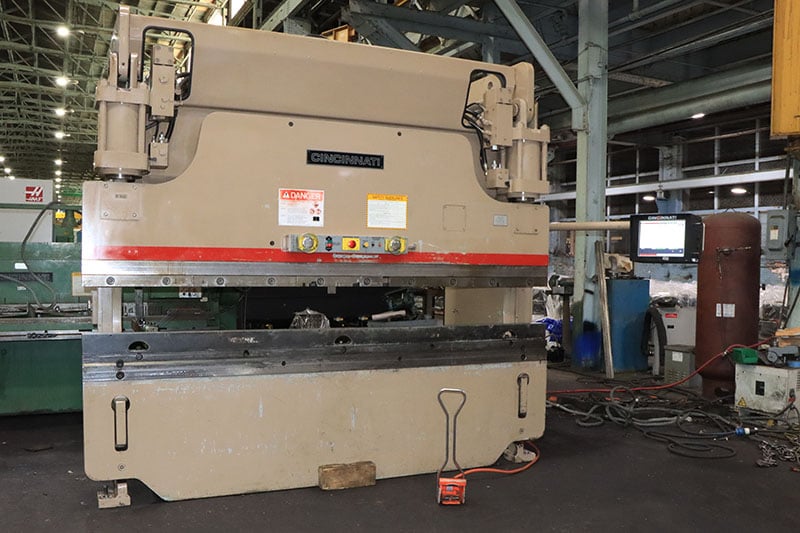

135 Ton, Cincinnati #135CBIIx8, hydraulic press brake, 10' overall, 102" between housing, 8" stroke, 7" throat, Gen 6 CNC control, 1998

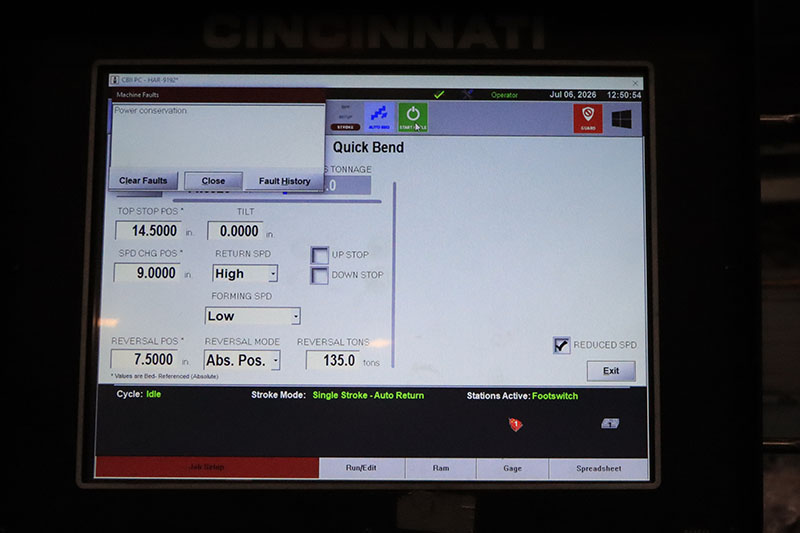

135 Tons X 10’ Hydraulic Press Brake with Gen 6 Updated Control (Done in 2025), CNC Control Over the Ram Travel, CNC Control Over Pressure, CNC Control Over Speeds, Press Mounted Palm Buttons, Foot Pedal and Lower Die Rail.
GENERAL SPECIFICATIONS
Tonnage: 135 Tons
Overall Length: 10’
Distance Between Housings: 8’ 6”
Mild Steel Bending Capacity @ 10’ 3”: 3/16”
Bending Capacity @ 7’ 6”: ¼”
Bending Capacity @ 4’ 8”: ½”
Stroke: 8”
Throat Depth: 7”
Open Height: 15”
Closed Height: 7”
Ram Speed - High: 136 IPM
Medium Speed: 65 IPM
Low Speed: 16 IPM
Return Speed: 122 IPM
Motor: 25 HP
Dimensions: 126” X 48” X 122” H
Weight: 16,000 Lbs
Voltage: 240 V / 3 Phase
INCLUDES: Gen 6 Updated Control (Done in 2025), CNC Control Over the Ram Travel, CNC Control Over Pressure, CNC Control Over Speeds, Press Mounted Palm Buttons, Foot Pedal and Lower Die Rail.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
