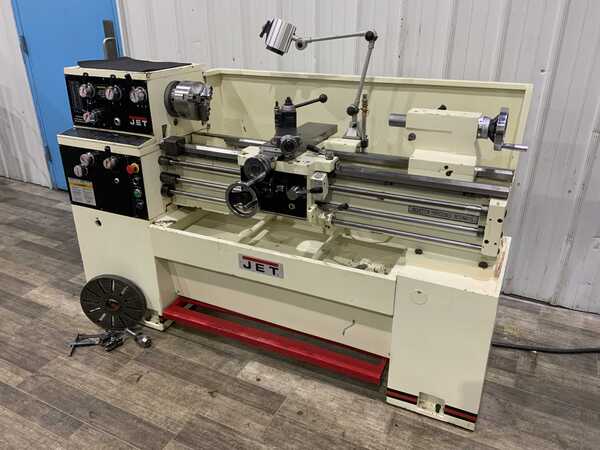

13" x 40" Jet #GH1340, Gap Bed Engine Lathe, 7.5" swing over cross slide, 19" swing in gap, 9-3/8" length of gap, 6" 3-jaw chuck, 3 HP, 1800 RPM, 2011

SERIAL ..................... 1112W2866W

MODEL ...................... GH-1340 W-3

YEAR NEW ................... 2011

SWING OVER WAYS ............ 13"

SWING IN GAP ............... 19"

LENGTH OF GAP .............. 9-3/8"

SWING OVER CROSS SLIDE ..... 7-1/2"

DISTANCE BETWEEN CENTERS ... 40"

SPINDLE SPEEDS ............. (12) 40 TO 1800

DIAMETER OF SPINDLE HOLE ... 1-1/2"

ENGLISH THREADS ............ (40) 4 TO 112 TPI

METRIC THREADS ............. (27) 0.45 TO 7 TPMM

FEEDS LONGITUDINAL ......... (40) 0.0012 TO 0.0294 IPR

FEED CROSS ................. (40) 0.0003 TO 0.00100 IPR

TAPER IN TAILSTOCK ......... #3 MT

CHIP PAN ................... YES

HARDEN WAYS ................ YES

FOOT BRAKE ................. YES

4 WAY TOOL POST ............ YES"

CHUCKS ..................... 3 JAW 6"

MOTOR ...................... 3 HORSEPOWER
