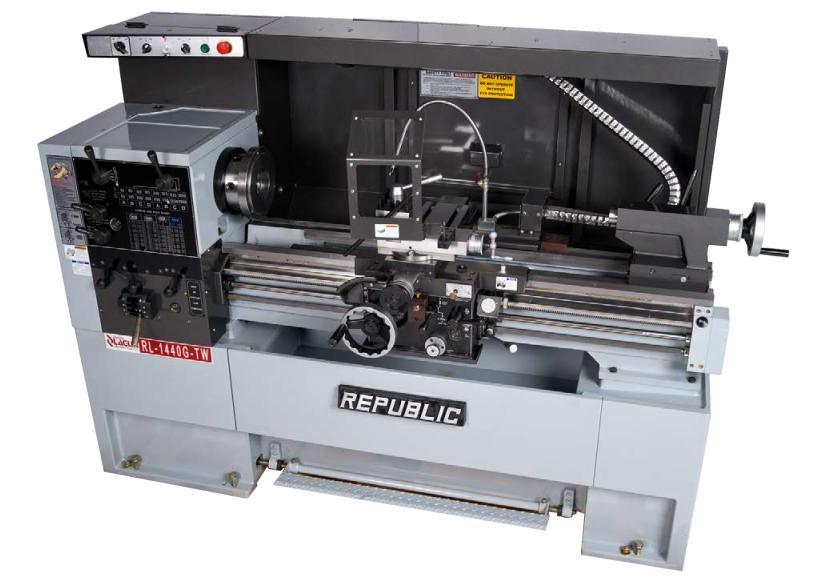

Click to zoom in
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
Equipped With
Equipped With
SPECIFICATIONS:
*CAPACITY:
*HEADSTOCK:
*CARRIAGE:
*BED:
*TAILSTOCK:
*MOTOR:
*MEASUREMENT:
FEATURES:
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
SPECIAL ELECTRICS:
SUBJECT TO STOCK
*CAPACITY:
SWING OVER BED 14.17" (360 MM)
SWING IN GAP Ø 21" (533 MM)
SWING OVER CROSS SLIDE 8.35" (212 MM)
DISTANCE BETWEEN CENTERS 40" (1,000 MM)
SPINDLE NOSE, CAMLOCK D1-6
SPINDLE BORE Ø 2" (52.5 MM)
SPINDLE SPEEDS (HIGH/LOW) 16 STEPS, 40 ~ 2,000 RPM
SPINDLE SPEED LOW RANGE 40 / 60 / 100 / 165 / 245 / 375 / 625 / 1,000 RPM
SPINDLE SPEED HIGH RANGE 80 / 120 / 200 / 330 / 490 / 750 / 1,250 / 2,000 RPM
LENGTH ON BED 20” (513 MM)
WIDTH OF CARRIAGE 16.22" (412 MM)
CROSS SLIDE TRAVEL 8.6” (220 MM)
TOP SLIDE TRAVEL 4.92” (125 MM)
NUMBER OF "V" WAYS 3 EACH "V" WAYS
BED WIDTH 10.25" (260 MM)
GAP BED WIDTH IN FACEPLATE 5.31” (135 MM)
QUILL DIAMETER 2" (52 MM)
*FEEDS & THREADS:QUILL CENTER MT #4
QUILL TRAVEL 6" (152 MM)
RANGE OF WHITWORTH THREADS & NO. (45) 2 - 72 T.P.I.
RANGE OF METRIC THREADS & NO. (39) 0.2 - 14
RANGE OF D.P. & NUMBER (21) 8 - 44
RANGE OF M.P. & NUMBER (18) 0.3 - 3.5
LONGITUDINAL FEEDS 0.002" - 0.067” (0.05 - 1.7 MM)
CROSS FEEDS 0.001" - 0.034” (0.025 - 0.85 MM)
MAIN MOTOR, 2-SPEED 5 / 2.5 HP (3.73 / 1.87 KW)
COOLANT PUMP 1/8 HP (0.1 KW)
LENGTH PACKED 89.4" (2,270 MM)
WIDTH PACKED 44" (1,120 MM)
HEIGHT PACKED 75" (1,900 MM)
NET WEIGHT 2,976 LBS (1,350 KGS)
GROSS WEIGHT 3,241 LBS (1,470 KGS)
• CHIP AND COOLANT TRAY
• FOOT BRAKE
• FULL LENGTH REAR SPLASH GUARD
• COMPOUND PROTECTION GUARD (WITHOUT LIMIT SWITCH)
• MANUAL INDEXING SQUARE 4-POSITION TOOL POST
• BACK PLATE (TO MOUNT PLAIN BACK 3 OR 4 JAW CHUCK OR FIXTURE PLATE; DOG PLATE)
• TWO (2) NO. 4 MT CENTERS AND ONE (1) MAIN SPINDLE NO. 7 MT REDUCTION SLEEVE
• SAFETY GUARD TO COVER “LEADSCREW” AND “FEED ROD BAR”
• HALOGEN WORK LIGHT
• TOOLBOX AND MANUALS
• LEVELING PADS AND BOLTS
• THREADING DIAL
• INCH/METRIC DIALS ON COMPOUND AND CROSS SLIDE (DIRECT READINGS)
• TAILSTOCK
• ELECTRICS 220V STD /440 V (OPTIONAL), 3 PHASE, 60 HZ (OTHER OPTIONS AVAILABLE)
• FLOOD COOLANT SYSTEM
• FLOOD COOLANT SYSTEM
• CHUCK GUARD WITH LIMIT SWITCH
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
SPECIAL ELECTRICS:
EXTRA CHARGE FOR 440V, 3-PHASE, 60HZ: $1,335.00
UL-508A INDUSTRIAL CONTROL PANEL: $4,990.00
DELIVERY:UL-508A INDUSTRIAL CONTROL PANEL: $4,990.00
NFPA-79 ELECTRICS CERTIFICATION: PRICE ON REQUEST
ELECTRONIC VARIABLE SPEED HEADSTOCK (EVS) 5 HP (3.7 KW), 220V: $5,311.00
ELECTRONIC VARIABLE SPEED HEADSTOCK (EVS) 7.5 HP (5.6 KW), 220V: $6,410.00
STEADY RESTS:ELECTRONIC VARIABLE SPEED HEADSTOCK (EVS) 5 HP (3.7 KW), 220V: $5,311.00
ELECTRONIC VARIABLE SPEED HEADSTOCK (EVS) 7.5 HP (5.6 KW), 220V: $6,410.00
STEADY REST (6” CAPACITY) W/ ROLLERS FOR 14" LATHE: $1,019.00
STEADY REST (6” CAPACITY) W/ ROLLERS FOR 16" LATHE: $1,030.00
FOLLOW REST WITH BRONZE TIPS FOR 14" LATHE: $814.00
FOLLOW REST WITH BRONZE TIPS FOR 16" LATHE: $814.00
3 JAW CHUCKS:
STEADY REST (6” CAPACITY) W/ ROLLERS FOR 16" LATHE: $1,030.00
FOLLOW REST WITH BRONZE TIPS FOR 14" LATHE: $814.00
FOLLOW REST WITH BRONZE TIPS FOR 16" LATHE: $814.00
3 JAW CHUCKS:
8" 3 JAW CHUCK D 1-6, DIRECT MOUNT (SEMI-STEEL)
• DIRECT MOUNT
• SEMI-STEEL: $1,755.00
10" 3 JAW CHUCK D 1-6, DIRECT MOUNT (SEMI-STEEL)
• DIRECT MOUNT
• SEMI-STEEL: $2,156.00
12" 3 JAW CHUCK D 1-6, DIRECT MOUNT (SEMI-STEEL)
• DIRECT MOUNT
• SEMI-STEEL: $2,812.00
8" 3 JAW CHUCK D 1-6, DIRECT MOUNT (STEEL BODY)
• DIRECT MOUNT
• STEEL BODY: $2,082.00
10" 3 JAW CHUCK D 1-6, DIRECT MOUNT (STEEL BODY)
• DIRECT MOUNT
• STEEL BODY: $2,304.00
12" 3 JAW CHUCK D 1-6, DIRECT MOUNT (STEEL BODY)
• DIRECT MOUNT
• STEEL BODY: $3,016.00
4 JAW CHUCKS:
4 JAW CHUCKS:
10" 4 JAW CHUCK D 1-6, DIRECT MOUNT (SEMI-STEEL)
• DIRECT MOUNT
• SEMI-STEEL: $2,007.00
12" 4 JAW CHUCK D 1-6, DIRECT MOUNT (SEMI-STEEL)
• DIRECT MOUNT
• SEMI-STEEL: $2,335.00
10" 4 JAW CHUCK D 1-6, DIRECT MOUNT (STEEL BODY): $2,033.00
12" 4 JAW CHUCK D 1-6, DIRECT MOUNT (STEEL BODY)
• DIRECT MOUNT
• STEEL BODY: PRICE ON REQUEST
CHUCKS & FACE PLATES FOR ALL OPTIONAL CHUCKS:
CHUCKS & FACE PLATES FOR ALL OPTIONAL CHUCKS:
BACK PLATE OR DOG PLATE 8" FOR D1-6 SPINDLE NOSE: PRICE ON REQUEST
FACE PLATE 12" FOR D1-6 SPINDLE NOSE: $668.00
FACE PLATE 14" FOR D1-6 SPINDLE NOSE 1 $691.00
FACE PLATE 12" FOR D1-6 SPINDLE NOSE: $668.00
FACE PLATE 14" FOR D1-6 SPINDLE NOSE 1 $691.00
DRILL CHUCK ½” (KEY TYPE) WITH NO.4 MORSE TAPER SHANK: PRICE ON REQUEST
DRILL CHUCK 3/4” (KEY TYPE) WITH NO.4 MORSE TAPER SHANK: PRICE ON REQUEST
DIGITAL READ-OUTS (DRO):
DIGITAL READ-OUTS (DRO):
FAGOR DRO MODEL: INNOVA TRUE VISION 40I TS
• WITH CONSTANT SURFACE SPEED: PRICE ON REQUEST
SAFETY OPTIONS:2-AXIS FAGOR DIGITAL READ-OUT (D.R.O.) 20I T: PRICE ON REQUEST
2-AXIS FAGOR DIGITAL READ-OUT (D.R.O.) 40I T: PRICE ON REQUEST
2-AXIS FAGOR DIGITAL READ-OUT (D.R.O.) 40I TS WITH THREAD REPAIR: PRICE ON REQUEST
2-AXIS ACU-RITE DRO203 FOR 14/16 X 40" LATHE: $3,902.00
2-AXIS ACU-RITE DRO203 FOR 14/16 X 60" LATHE: $4,428.00
2-AXIS ACU-RITE DRO203 FOR 14/16 X 40" LATHE: $3,902.00
2-AXIS ACU-RITE DRO203 FOR 14/16 X 60" LATHE: $4,428.00
2-AXIS ACU-RITE DRO203 FOR 14/16 X 40" LATHE WITH CONSTANT SURFACE SPEED (C.S.S.): PRICE ON REQUEST
2-AXIS NEWALL NMS800 DRO 14/ 16 X 40 LATHE 1 $4,429.00
2-AXIS NEWALL NMS 800 DRO 14/16 X 60 LATHE: $5,098.00
OTHER ACCESSORIES:
2-AXIS NEWALL NMS800 DRO 14/ 16 X 40 LATHE 1 $4,429.00
2-AXIS NEWALL NMS 800 DRO 14/16 X 60 LATHE: $5,098.00
OTHER ACCESSORIES:
TAPER ATTACHMENT, TELESCOPIC TYPE
• TRAVEL 6” – 10 DEGREES: $2,835.00
LIVE CENTER, MT #4: $822.00
LIVE CENTER, MT #4: $822.00
MICROMETER CARRIAGE STOP FOR 14" OR 16" LATHE: $475.00
CARRIAGE STOP - 5 POSITION BED W/ MICROMETER STOP FOR 14" OR 16" LATHE: PRICE ON REQUEST
QUICK CHANGE TOOL HOLDERS:
QUICK CHANGE TOOL HOLDER SET CXA #3
• 5 PC.: 1 TOOL POST & 4 HOLDER
• CAPACITY ¾”: $1,837.00
QUICK CHANGE TOOL HOLDER SET CXA #3
• 7PC. (1 TOOL POST & 6 HOLDERS)
• CAPACITY ¾”: $2,464.00
COLLETS:
• CAPACITY ¾”: $2,464.00
COLLETS:
COLLET CLOSER, 5C LEVER TYPE PRODUCTION (UP TO 1 1/16” CAP), D1-6 FOR 14" OR 16"": $2,033.00
HANDWHEEL FRONT TYPE COLLET CHUCK, 5C, D1-6 (SPINDLE NOSE MOUNTED): $3,132.00
COLLETS 5C ; 16 PIECES, 1/8" TO 1 1/16" CAPACITY: $920.00
COLLETS 5C ; 16 PIECES, 1/8" TO 1 1/16" CAPACITY: $920.00
HANDWHEEL FRONT TYPE COLLET CHUCK, 16C, D1-6 (SPINDLE NOSE MOUNTED): $2,166.00
HYDRAULIC COPY ATTACHMENT:
HYDRAULIC COPY ATTACHMENT:
HYDRAULIC TAPER & COPYING SYSTEM (FULL CENTER DISTANCE RANGE)
• “HYDRAULIC TAPER” & “FULL LENGTH PROFILE CUTTER” WILL NEED TO FOLLOW A TEMPLATE
• NOTE: EASY TO USE & WILL NOT WEAR OUT WITH USE AS A MECHANICAL TAPER ATTACHMENT
• IDEAL FOR API THREADING ETC. (ASK FOR VIDEO SHOWING APPLICATION): $7,920.00
SUBJECT TO STOCK
