1 / 8
Click to zoom in
1 / 8
For Sale by Perfection Global
Surplus Record Dealer Since 1964
Location: Elk Grove Village, IL
Contact Sales Dept.
Phone Number: 847...> Show Phone Number 847-427-3333
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
- Table Surface: 12" x 24"
- Maximum Workpiece Height: 13.7"
- Table Longitudinal Travel: 29.5"
- Table Cross Travel: 13.6"
- Foot Pad: 30" x 42"
- Grinding Wheel Size (OD x W x ID): 12" x 1.5" x 5"
- Spindle Speed: 1800 RPM
- Table Longitudinal Feed
- Hydraulic: 1 FPM - 100 FPM
- Hand: 1.85"
- Table Cross Movement
- Hydraulic Increment: 0.2" - 0.8"
- Hydraulic Continuous: 4 IPM - 40 IPM
- Hand: 0.25"
- Graduation of Handwheel: 0.001"
- Vertical Rapid Feed Rate: 19 IPM
Equipped With
- Kanet Electromagnetic Chuck
- Auto Incremental Down Feed
- Hydraulic Longitudinal and Cross Feed
- Power Rapid Wheelhead Elevation
- Cross Feed Control
- Table Speed Control
- Step Feed Control
- Automatic Sparkout up to 5 Passes
- 5 HP AC Main Drive Spindle Motor (3/60/230-460 VAC, 12/6 Amps)
- 2 HP AC Hydraulic Power Unit Motor
- Cooling Pump Unit (230/460 VAC, 0.4 / 0.25 Amps)

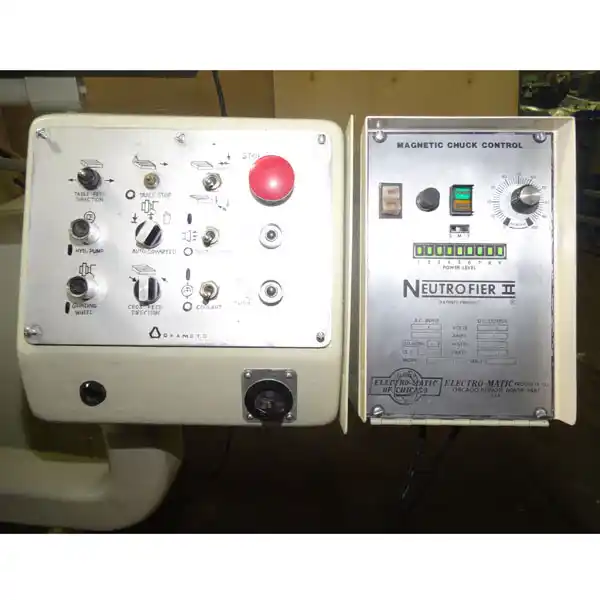

- Electrical Controls
Get Your Price from Perfection Global!
