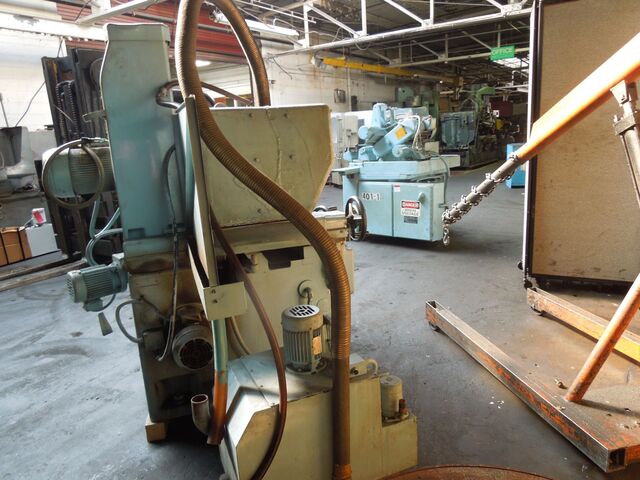

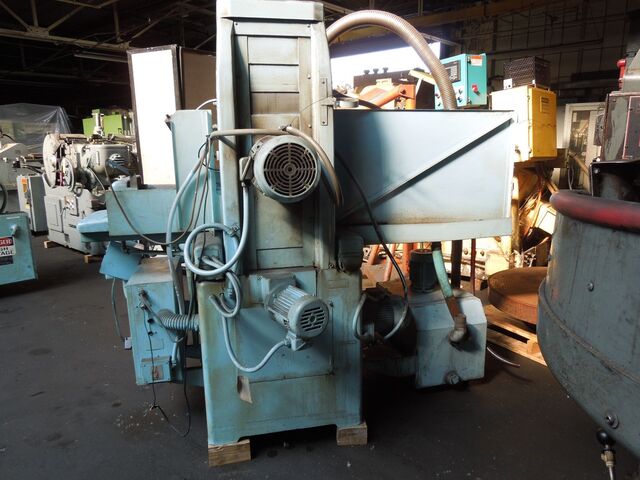

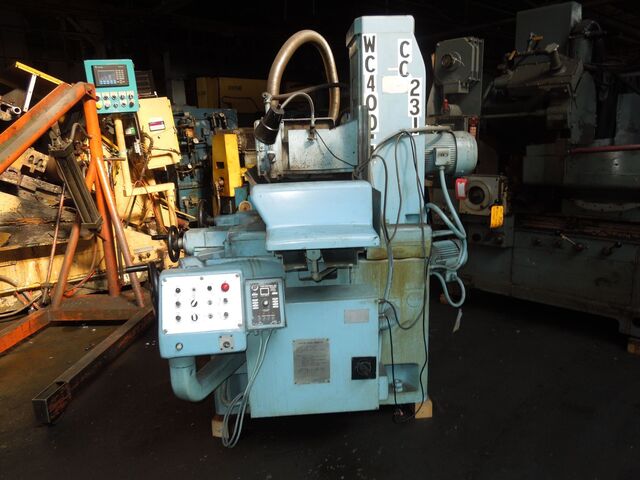

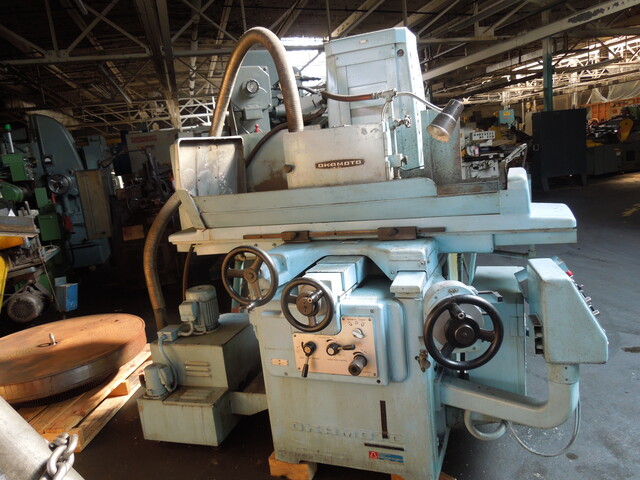

12" x 24" Okamoto #Accugar-124N, horizontal surface grinder, 13.7" Vert. Clearance, 12" x 1.5" x 5" grinding wheel, 5 HP, 1800 RPM

$7,500 USD

Request Formal Quote

OKAMOTO ACCUGAR 124N surface grinder offers a spacious 24" x 12" capacity, handling workpieces up to 925 lbs. Features hydraulic feed, 12" grinding wheel, and robust motor setup.
OKAMOTO ACCUGAR 124N HORIZONTAL SURFACE GRINDER

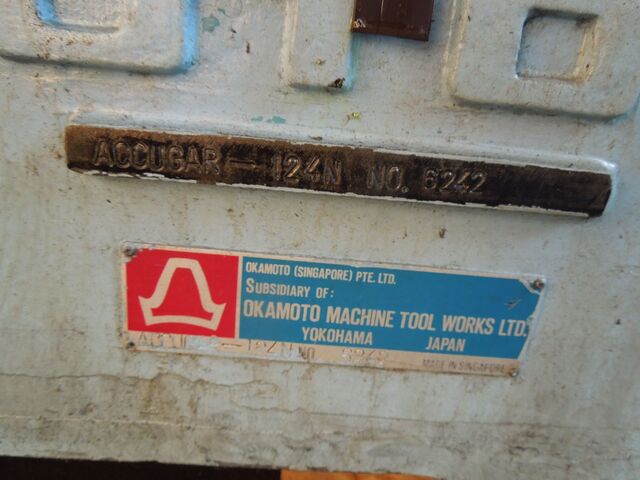

S/N 6242
STANDARD SPECIFICATIONS
CAPACITY
Max Grinding (L x W)………………………………….. 24" x 12"
Max Vertical Clearance……………..…………………… 13.7"
Max Weight Of Workpiece…...………………………….. 925 lbs.
TABLE
Surface Length……………………………………………. 23.75”
Surface Width…………………………………………….. 11.8”
Max Longitudinal Travel…………………………………..29.5”
Max Cross Travel………………………………………….13.6”
T-Slots……………………………………………………...3 x .669”
FEEDS
Hydraulic Feed……………………………………………..1.0-100 FPM
Rapid Feed…………………………………………………19”/min
GRINDING WHEEL
Diameter……………………………………………………12”
Width……………………………………………………….1.5”
Bore…………………………………………………………5”
Speed………………………………………………………..1800RPM
MOTORS
Grinding Wheel Spindle……………………………………..5 HP
Vertical Rapid Feeder………………………………………..0.5 HP
Hydraulic Pump……………………………………………...2 HP
DIMENSIONS
Floor Space…………………………………………………..103” x 74” x 73”
Approx. Weight………………………………………………4,900 LBS
Specifications are deemed accurate, however, subject to verification or prior sale.
