For Sale by Southern Fabricating Mchy Sales
Description

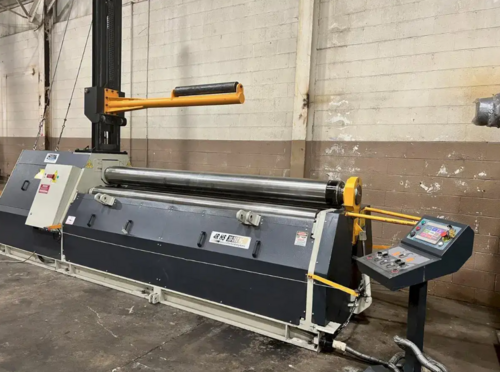

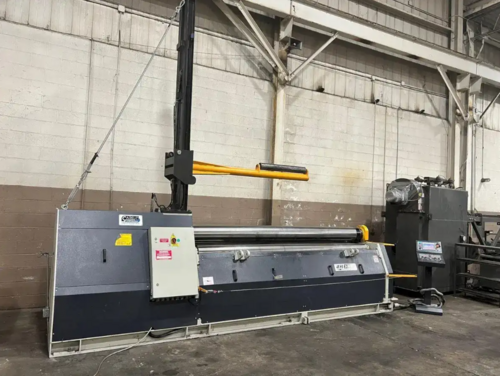

” X 10’ Plate Roll with Portable NC Color Touchscreen Control, Hydraulic Drop End, Bottom Pinch Roll Hydraulically Positioned, Dual Speed and Mechanical Overhead Roll Support.
GENERAL SPECIFICATIONS
Capacity @ 36,000 PSI
Rolling OD 5X Top Roll: ” X 10’
Rolling OD 1.5X Top Roll: 5/16” X 10’
Prebending OD 5X Top Roll: 5/16” X 10’
Prebending OD 1.5X Top Roll: ¼” X 10’
Capacity @ 50,000 PSI
Rolling OD 5X Top Roll: ¼” X 10’
Rolling OD 1.5X Top Roll: 7/32” X 10’
Prebending OD 5X Top Roll: 7/32” X 10’
Prebending OD 1.5X Top Roll: 3/16” X 10’
Top Roll Diameter: 10.2”
Lateral Roll Diameter: 7.87”
(2) Rotation Speeds: 5 FPM / 18 FPM
Total Power: 10 HP
Voltage: 440 V 3 Ph
Dimensions: 197” X 63” X 63”
Weight: 16,450 Lbs
INCLUDES: Portable NC Color Touchscreen Control, Hydraulic Drop End, Bottom Pinch Roll Hydraulically Positioned, Dual Speed and Mechanical Overhead Roll Support.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
