Ton: 120.0
Stroke: 6.0
Daylight: 6.0
Stock # 1450
1 / 4
Click to zoom in
1 / 4
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

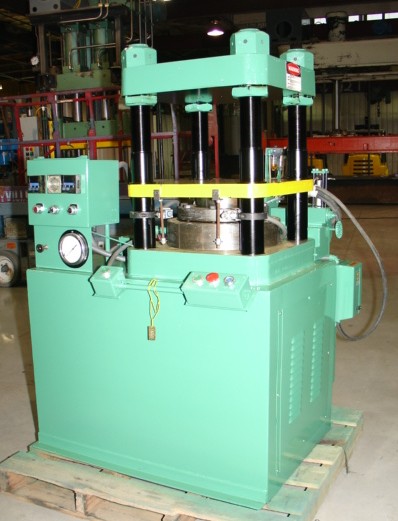

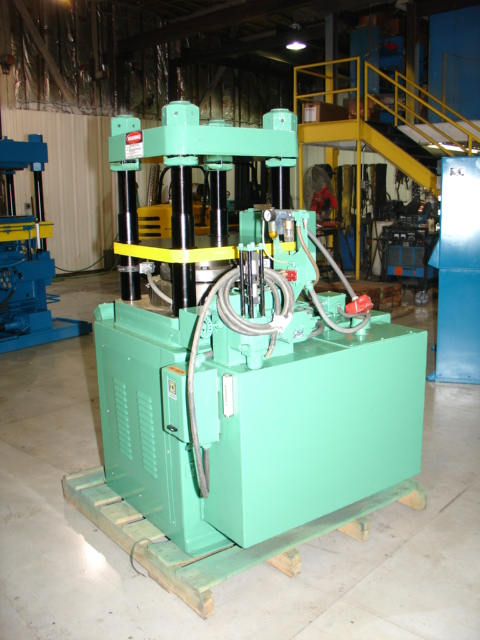

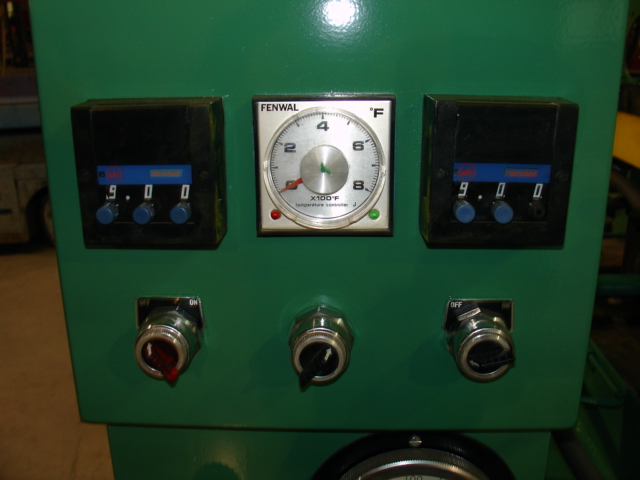

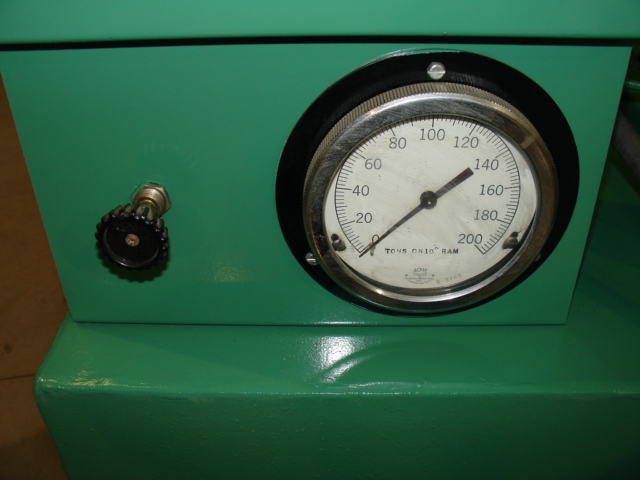

FRONT TO BACK BETWEEN THE POSTS IS 14.25". NOMINAL BED SIZE OF 14.25" X 22.5". ADJUSTABLE DAYLIGHT OF 6" TO 13". APPROX STROKE OF 6". DOUBLE-ACTING MAIN RAM WITH 10" BORE AND 8" ROD. FULLY GUIDED WITH 2.25" BUSHINGS ON 3.5" DIAMETER POSTS. 44" OPERATOR HEIGHT. SELF-CONTAINED HIGH/LOW HYDRAULIC SYSTEM: 3 HP; 240 VOLTS; HIGH VOLUME VANE PUMP; HIGH PRESSURE RACINE RADIAL PISTON PUMP; PRESSURE GAUGE; 35 GALLON RESERVOIR. ELECTRICAL CONTROLS: TWO CLOSE BUTTONS; OPEN BUTTON; E-STOP; TWO TIMERS; FENWAL 800 F TEMPERATURE CONTROLLER; MOTOR STARTER; THREE LIMIT SWITCHES. OVERALL DIMENSIONS: 44" X 46" X 64" TALL. APPROX 3,000 LBS. (ITEM #1450)
Get Your Price from Icon Industries, Inc!
