Description
Description

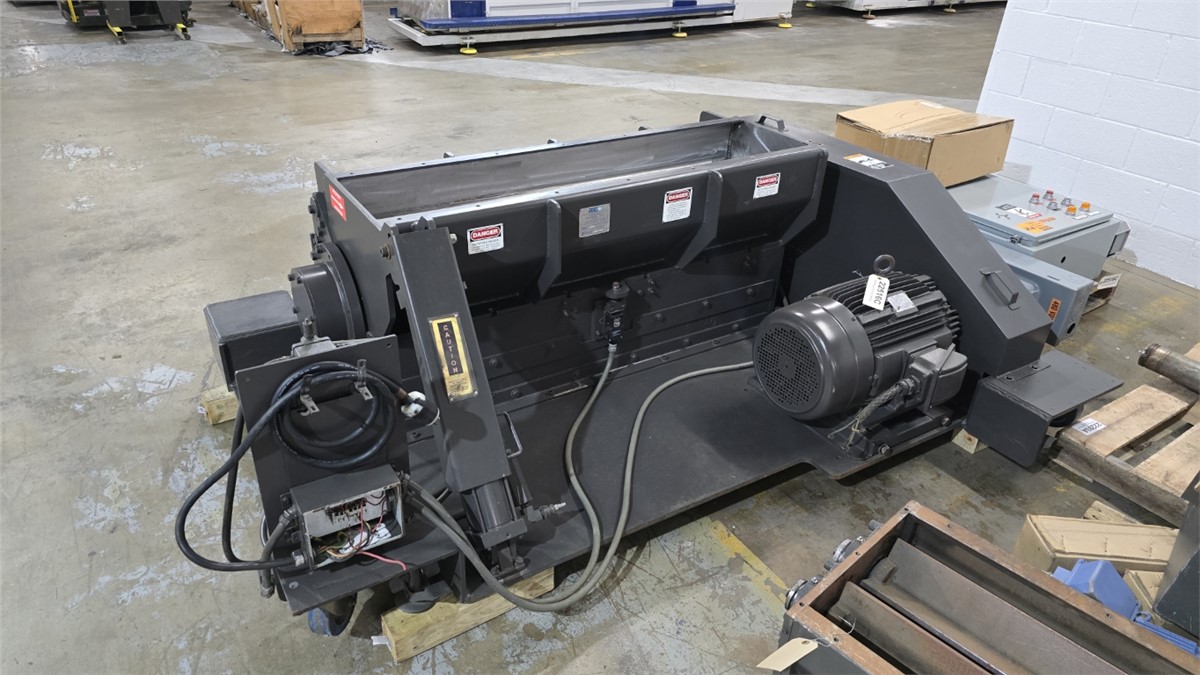

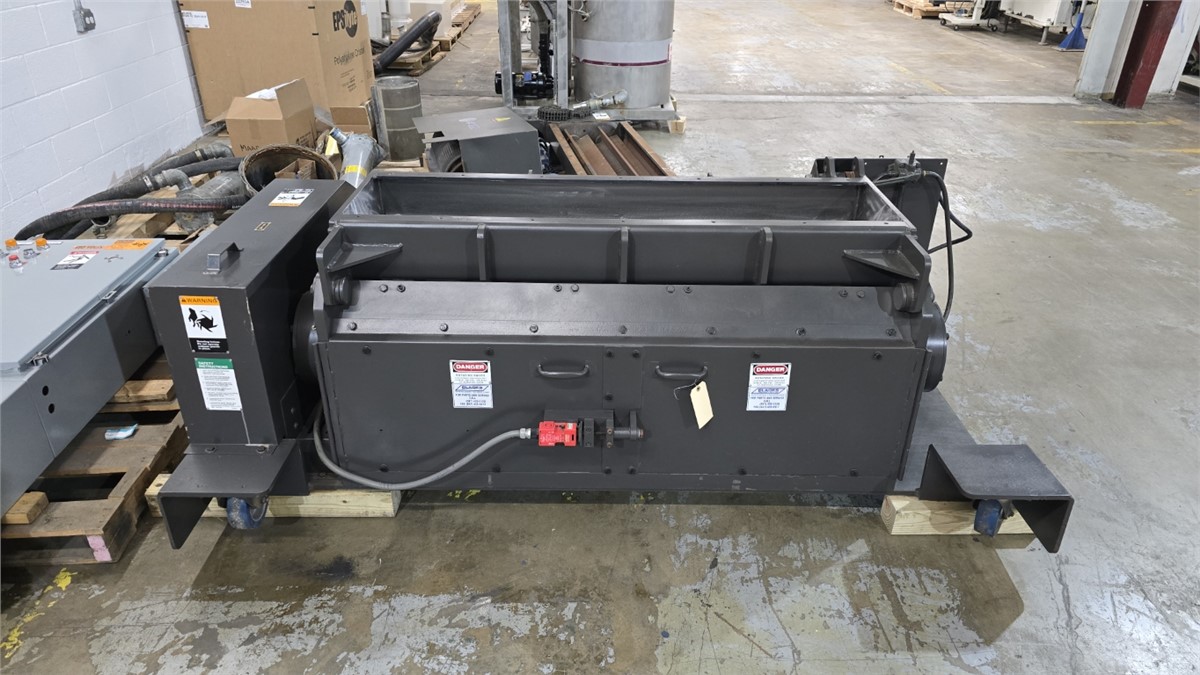

- Refurbished 12" x 56" AEC Paddle Feed Granulator, Model WG1256, 30hp
- 5 Knife TwinShear Rotor, 2 Bed Knives
- Approximately 2000 lbs/hr Per Manufacturer (Material & Screen Dependent)
- Infeed Height: 53"
- Screen Size: 3/8"
- 30 HP Teco Westinghouse AC Motor, Cat. No.: N0304, S/N: P6105417096
- 460/3/60, 34.5A
- 1755 RPM
- 286T Frame, TEFC
- 3 HP Allen-Bradley PowerFlex40 AC VFD, Cat. No.: 22B-D6P0C104
- Input: 480/3/60, 7.5A, AC Voltage Range: 342-528
- Output: 3 Phase, 0-400 Hz, AC Voltage: 0-460, Continuous Amp: 6, 60 Sec Ovld Amps: 9

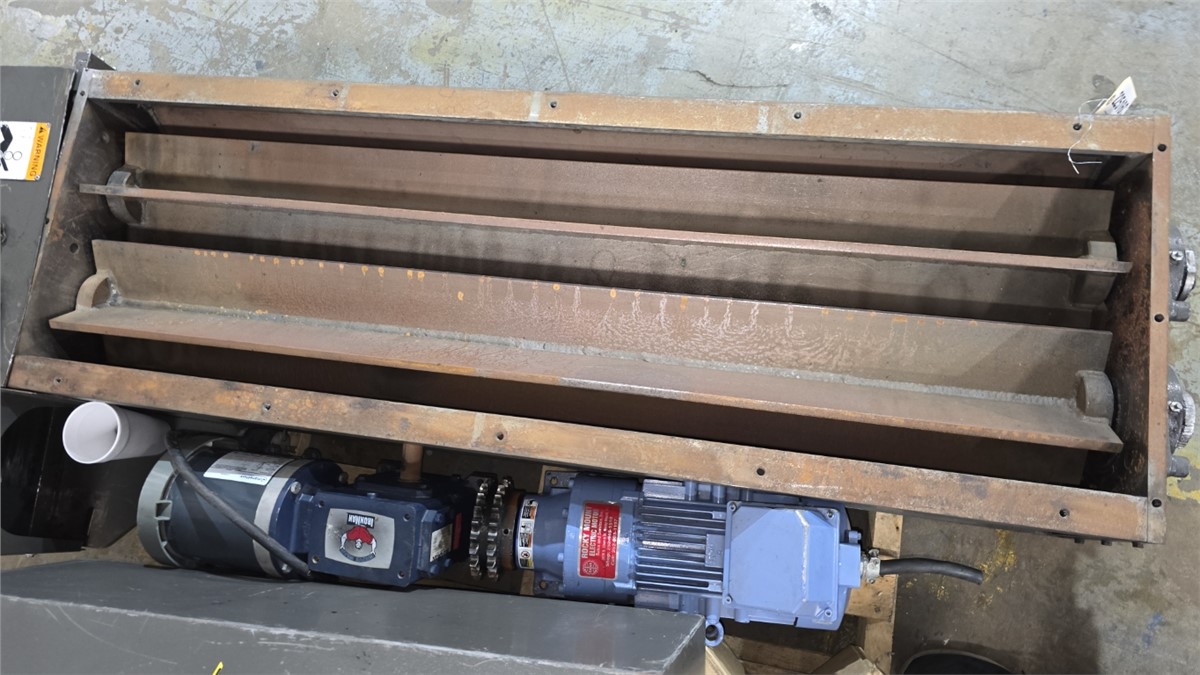

- Low Profile, Sound-Attenuated Infeed System Designed For Inline Thermoformer Discharge
- NEMA 12 Control Enclosure With Safety Interlocks
- Split Cutting Chamber For Easy Access & Cleanout
- Reinforced Heavy Duty Screen Cradle

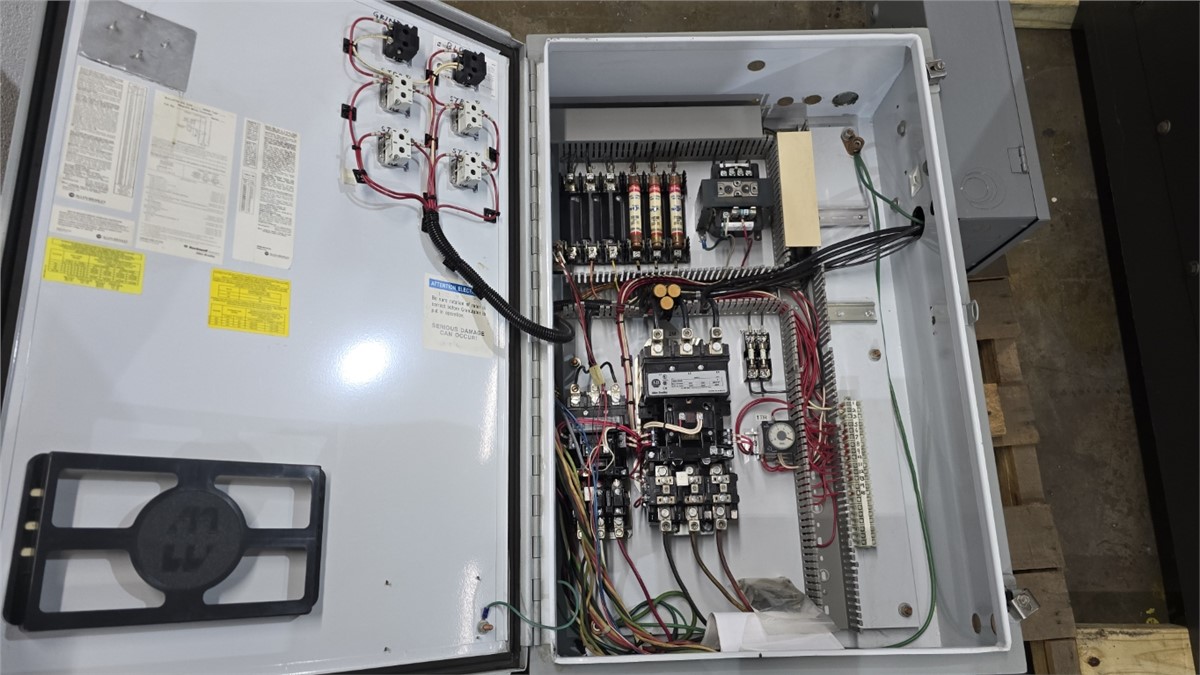

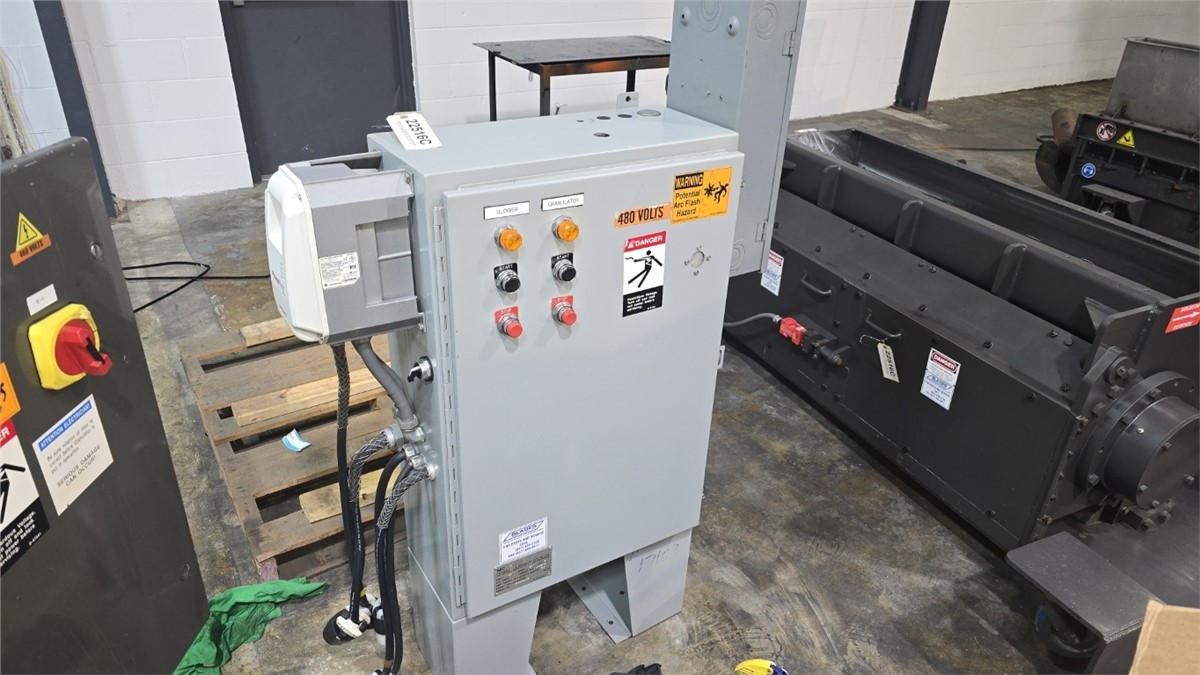

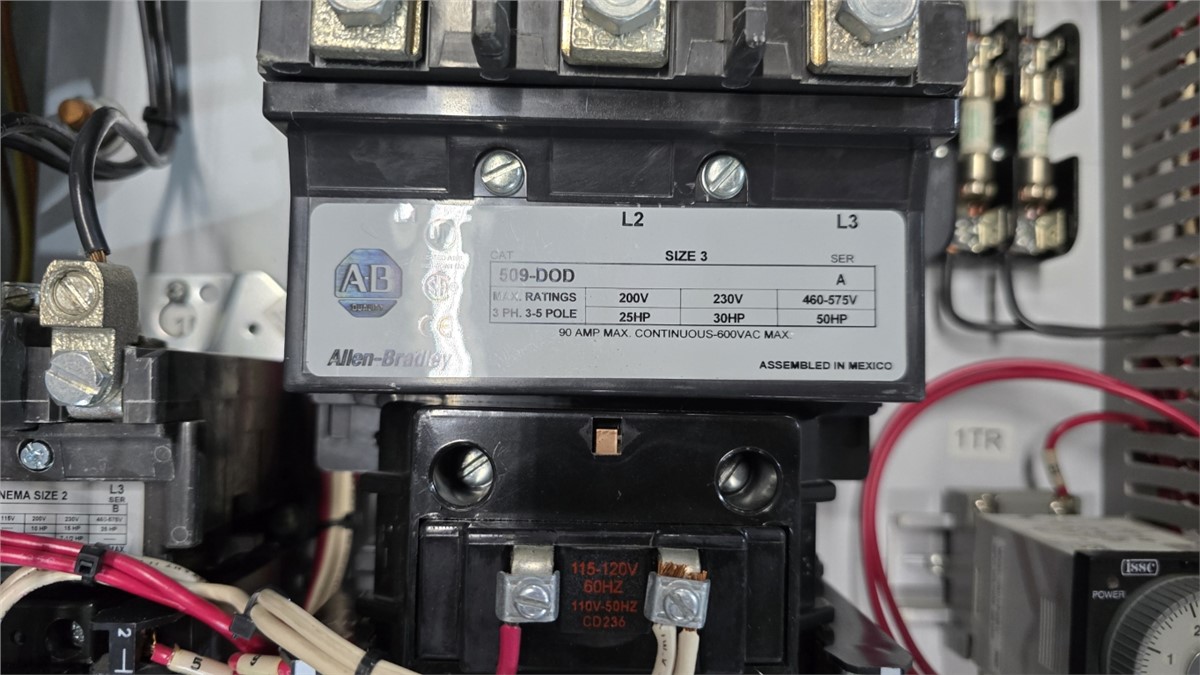

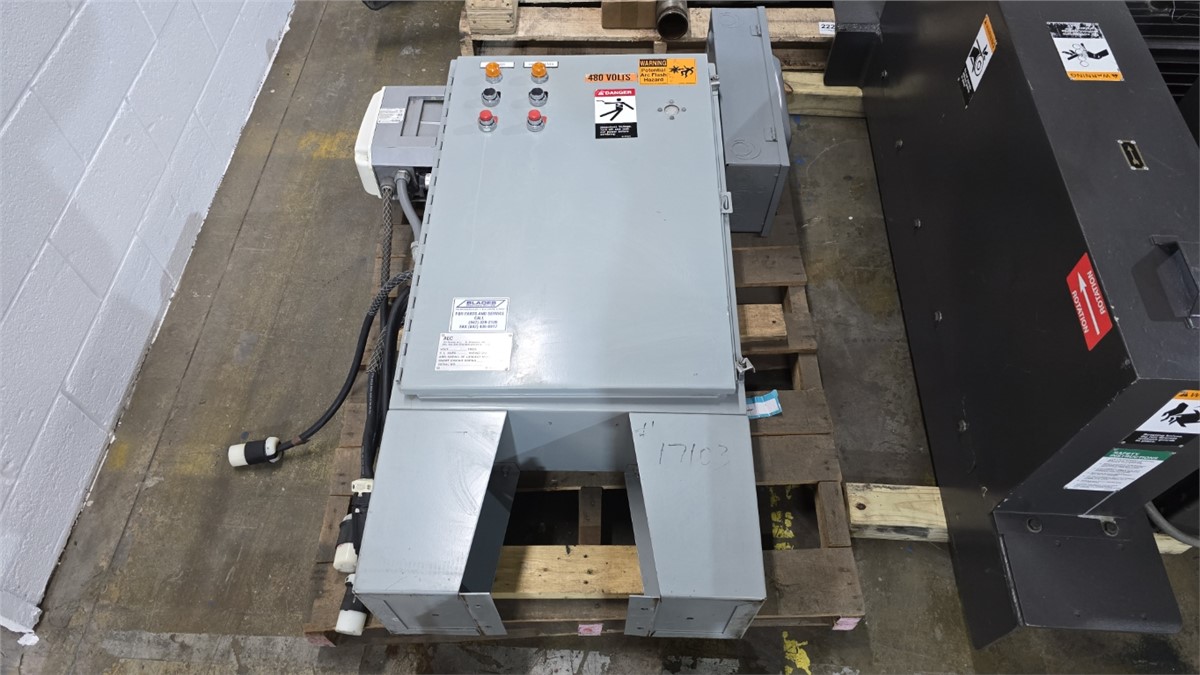

- Starter Panel With Granulator & Blower Controls
- Spare Set of blades and spare 5/16" Screen

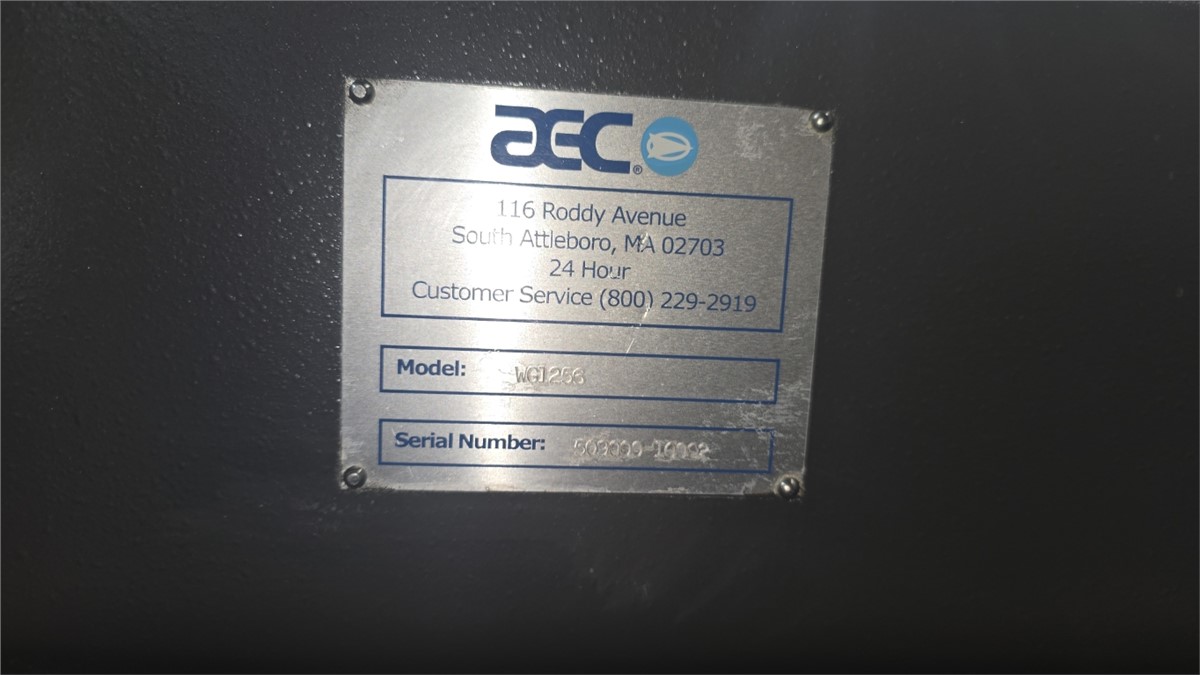

- S/N: 509000-1002
- Approximate Dimensions: 103” L x 70” W x 53" H , 5300 lbs
