Manufacturer: Chevalier
Model: FSG-3A1224
Width/Cross: 12.0
Length/Longit.: 24.0
Stock # SMFSG3A1224

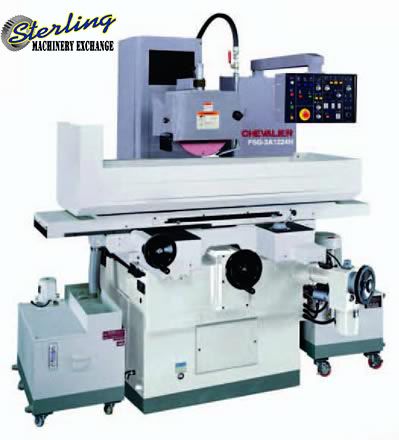

Click to zoom in
For Sale by Sterling Machinery Exchange - New Mach.
Surplus Record Dealer Since 1970
Location: South El Monte, CA
Contact Adam Mattes
Phone Number: 626...> Show Phone Number 626-444-0311
Let the seller know you found their listing on Surplus Record!
Description
DETAILED SPECIFICATION
| Table Size | 12" x 24" |
| Max. Grinding Length | 24" |
| Max. Grinding Width | 12" |
| Max. Distance From Table Surface to Spindle Centerline | 24-3/4" |
| Longitudinal Movement of Table | |
| Hydraulic | 25-5/8" |
| Manual | 27-1/2" |
| Table Speed | 16 - 82 FPM |
| Rapid Travel | 56 FPM |
| Crossfeed Handwheel | |
| Per Revolution | 0.2" |
| Per Graduation | 0.001" |
| Downfeed Handwheel | |
| Per Graduation | 0.0005" |
| Per Revolution | 0.0001" |
| Power Rating (Horse Power) | |
| Hydraulic Drive | 2 H.P. |
| Crossfeed Drive | 0.05 H.P. |
| Elevating Drive | 1/4 H.P. |
| Grinding Wheel Size (Dia. x Width x Bore) | 14" x 1.97" x 5" |
| Total Rated Power (H.P.) | 10 H.P. |
| Voltage | 230V ~ 3 Phase |
| Dimensions (L x W x H) | 107" x 72" x 80" |
| WEIGHT | 4,700 Lbs. |
Features
Auto Lubrication
3 Axis Fully Automatic Feed
Tool Box & Tools
Plunge Grinding Cycle
Diamond Dresser With Diamond
Hand Scrapped Turcite-B Used On Z- And Z-Axes
One Grinding Wheel & Hub
Hydraulic System
Splash Guard & Nozzle
Balancing Arbor
Microdown Feed Device (0.0001")
Operation Manual
Leveling Screws, Nuts & Pads
