Manufacturer: Chevalier
Model: FSG-3A1224
Year: 1992
Width/Cross: 12.0
Length/Longit.: 24.0
Stock # 179582
Click to zoom in
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

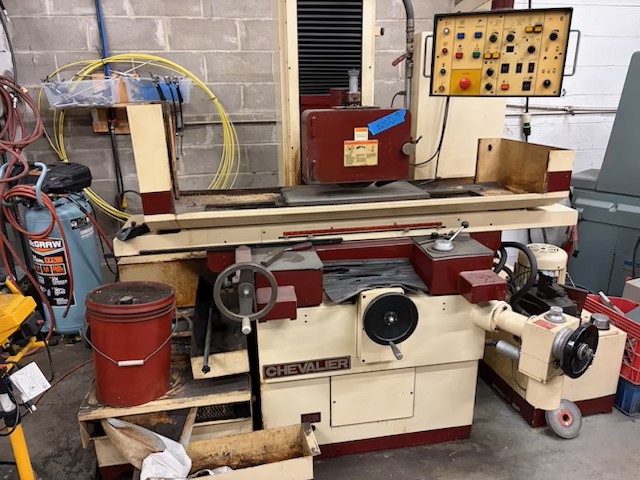

12" X 24" CHEVALIER PRECISION SURFACE GRINDER
WITH PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
MODEL: FSG-3A1224H… S/N: P3816003… NEW: 1992
MAX. GRINDING CAPACITY .................... 12" X 24"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC .. 25- 5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ..... 27- 1/2"
MAX. CROSSFEED TRAVEL, AUTOMATIC ........... 14- 1/8"
MAX. CROSSFEED TRAVEL, MANUAL .............. 14- 1/2"
DIST. FROM SPINDLE CENTER TO TABLE ......... 19-″/4"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT .......... 0.04" TO 0.5"
CROSSFEED HANDWHEEL, PER GRADUATION ........ 0.001"
PER REVOLUTION ............................. 0.2"
MICROFEED, PER REVOLUTION .................. 0.005"
PER GRADUATION ............................. 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED ....... 0.0001" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION .......... 0.0005"
PER REVOLUTION ............................. 0.1"
MICROFEED .................................. 0.0001"
RAPID TRAVERSE RATE ........................ 13" IPM
SPINDLE MOTOR .............................. 5 HP
STANDARD GRINDING WHEEL .................... 14" DIA.
APPROX. WEIGHT ............................ 4,630 LBS.
APPROX. FLOOR SPACE REQUIRED ........ 105" X 72" X 75"H
EQUIPPED WITH:
FULLY PROGRAMMABLE MICROPROCESSOR AUTO-CYCLE CONTROL
-AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE… SURFACE)
-SPARKOUT CYCLE ADJUSTABLE FRO 0 TO 9 TIMES
-POWER RAPID WHEELHEAD POSITIONING
-AUTOMATIC WHEELHEAD RETRACTION @ COMPLETION OF CYCLE
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED
ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B… PRECISELY
HAND-SCRAPED FOR ACCURACY.
FINE FEED FOR VERTICAL AXES (.0001" GRAD.)
12" X 24"…"KANETSU" CROSS POLE ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL BUILT INTO MACHINE
CONSOLE
COOLANT SYSTEM W/PAPER FILTRATION… COMPLETE
W/SPLASH GUARDS
EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
5 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE
3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 230 VOLTS
* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *
** SUPERB CONDITION… APPEARANCE - ORIGINAL PAINT **
