$9,100 USD
Description

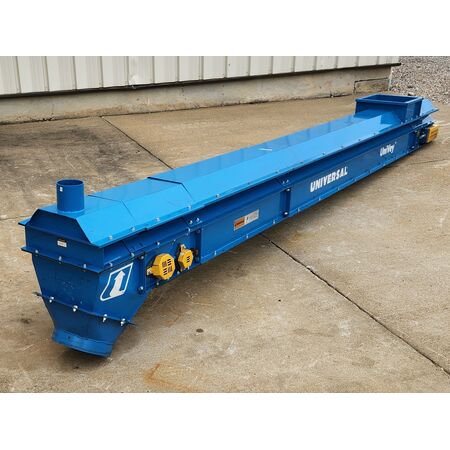

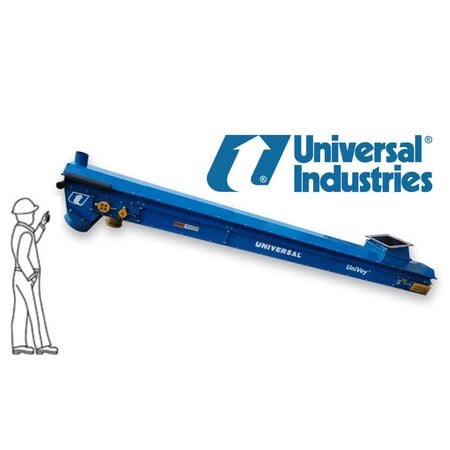

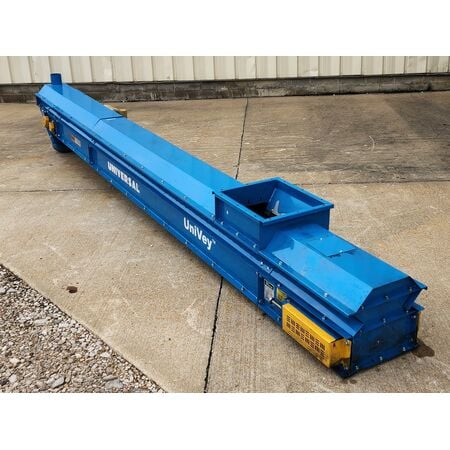

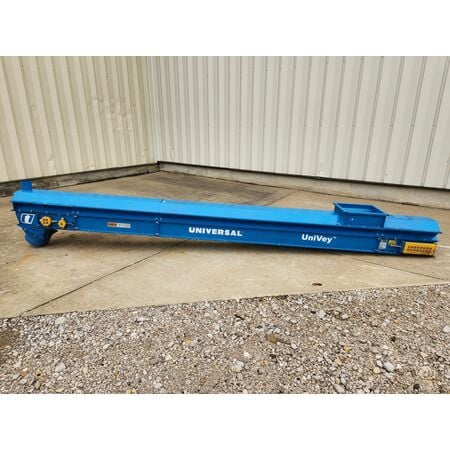

Used 12" Wide Universal Industries UniVey Slider Bed Belt Conveyor MPK12UT
Serial # 87787.
Approximate Capacity: 1,900 Cu/Ft per hour @ 270fpm belt speed
Powder-coated frame with a convey length of 12' on centers and a 15'-3" frame length.
Neoprene chevron belt, deep trough with side skirting and weather/dust cover.
Inlet: 13.5" X 16" flange
Discharge: 9.75" O.D. sleeve, @ 30
1HP shaft-mount reducer drive (230/460V, 60Hz, 3ph)
Used previously to convey organic fertilizer.
*Will require connection of the torque arm bracket on the drive.
Serial # 87787.
Approximate Capacity: 1,900 Cu/Ft per hour @ 270fpm belt speed
Powder-coated frame with a convey length of 12' on centers and a 15'-3" frame length.
Neoprene chevron belt, deep trough with side skirting and weather/dust cover.
Inlet: 13.5" X 16" flange
Discharge: 9.75" O.D. sleeve, @ 30
1HP shaft-mount reducer drive (230/460V, 60Hz, 3ph)
Used previously to convey organic fertilizer.
*Will require connection of the torque arm bracket on the drive.
Inquire Further with JM Industrial LLC!
