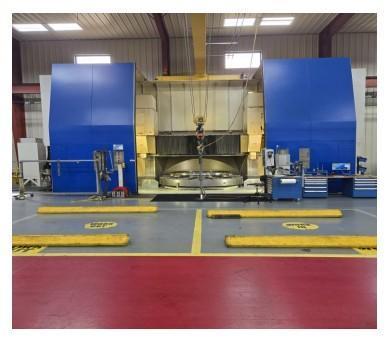

118" Giddings & Lewis #VTC-3000, CNC vertical turret lathe, Fanuc 31I, 2009

MANUFACTURER...................: GIDDINGS & LEWIS
MODEL..........................: VTC 3000 [CNC]
YEAR...........................: 2009

TABLE TYPE.....................: ROHM
TABLE OUTER DIAMETER...........: 118.11"
MAX. RING OUTER DIAMETER.......: 137.8"
TABLE BEARING SYSTEM...........: HD TAPER ROLLER THRUST
TABLE LOAD CAPACITY............: 132,277 LBS.
LOW TABLE RPM RANGE............: 1–37
HIGH TABLE RPM RANGE...........: 1–120
C–AXIS AVAILABLE TORQUE........: 111.116 NM
C-AXIS LIVE TABLE POSITIONS....: 360,000
POSITIONING ACCURACY...........: 10 ARC SECONDS
POSITIONING REPEATABILITY......: 5 ARC SECONDS
FIXED RAIL ABOVE TABLE.........: 39.37"
C-AXIS CONTOURING TABLE........: YES

RAM SPINDLE QUANTITY...........: 2
RAM SIZE.......................: 9.84" X 9.84"
SPINDLE TAPER..................: MAG LAUNCH PLATE SL250
2-SPEED GEAR BOX SPINDLE RPM...: 4,000
LIVE SPINDLE TOOLING TAPER.....: KM–80
RAM TRAVEL AC DRIVE MOTOR S640%: 33 kW
RAM AC LIVE SPINDLE POWER......: 22kW CONTINUOUS
MAXIMUM TOOL DIAMETER..........: 7.087"
MAXIMUM TOOL LENGTH............: 19.685"
MAXIMUM TOOL WEIGHT............: 39.68 LBS.
MIN. DISTANCE BETWEEN RAM LINES: 47.244"
MAX DRILLING BOLT HOLE DIAMETER: 3.15"
MIN DRILLING BOLT HOLE DIAMETER: 1 mm
X-AXIS RAM TRAVEL..............: 81.1"
Z-AXIS RAM TRAVEL..............: 49.2"

TOOL MAGAZINE QUANTITY.........: 2
TOOL POCKET POSITIONS..........: 31 EACH
TOOL MAGAZINE COOLANT FLUSH PSI: 203
TOOL MAGAZINE COOLANT FLUSH GPM: 20

EQUIPPED WITH..................: FANUC 31I INTEGRATED PC CONTROLS
15" COLOR DISPLAY
LEAF TYPE CHIP CONVEYOR
TCV50 CHIPBLASTER 1000psi
FULL WALLED ENCLOSURE W/ ROOF
CONTROL CABINET
LUBRICATION SYSTEM
CHIP BLASTER
MIST COLLECTOR
KM–80 MODULAR TOOL HOLDING SYSTEM
C-AXIS CONTOURING TABLE

MACHINE WIDTH..................: 47'
MACHINE DEPTH..................: 24'
MACHINE HEIGHT.................: 22'
MACHINE WEIGHT.................: 160,000 LBS.
RAIL HEIGHT ABOVE TABLE........: 48-1/2"
CONSTRUCTION...................: HEAVY DUTY WELDED
BALL SCREWS....................: 3.15"
FOUNDATION PIT DEPTH...........: 18"
MAXIMUM FOUNDATION DEPTH.......: 56.1"

Specifications
Machine Type...	...Boring Mills, Vertical, CNC (Including VTL)
Manufacturer...	...GIDDINGS & LEWIS
Model...	...VTC-3000
Year...	...N/A
Condition...	...Used
